Schartec Move 600 - Connection of External Control and Accessories

To Next Page

To Previous Page

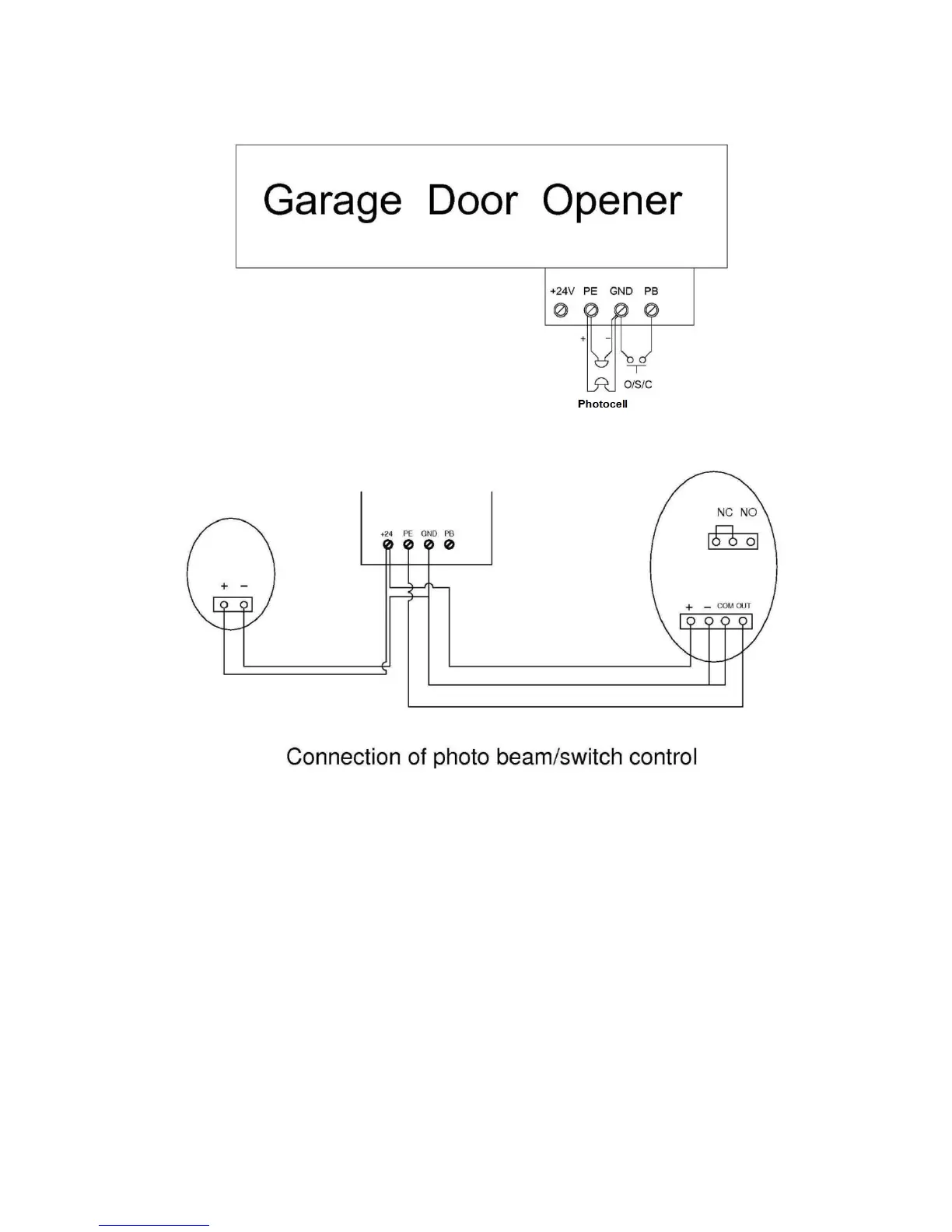

Photocell connection (optional) – Figure 15, Figure 16

Switch control connection (optional) – Figure 15

Figure 15

Figure 16

Other terminal introduction and application

1. The O/S/C interfaces available. (Figure 18)

Add a new O/S/C button to open or close the door (e.g. interior push-buttons).

2. Flashing light function. (Figures 17 and 18)

There are corresponding interfaces for this function and provide 24v-35v flashing light voltage. Connect the

flashing light with DC 24v-28v, current≤100mA. When using AC 220V power flashing lights, please fit an

adapter and wiring as required.

3. Pass door (SD) protection (Figure 18)

This function ensures that the door can’t be opened unless the small pass door is closed. The door panel

won’t be damaged.
