Installation of boom rail and operator

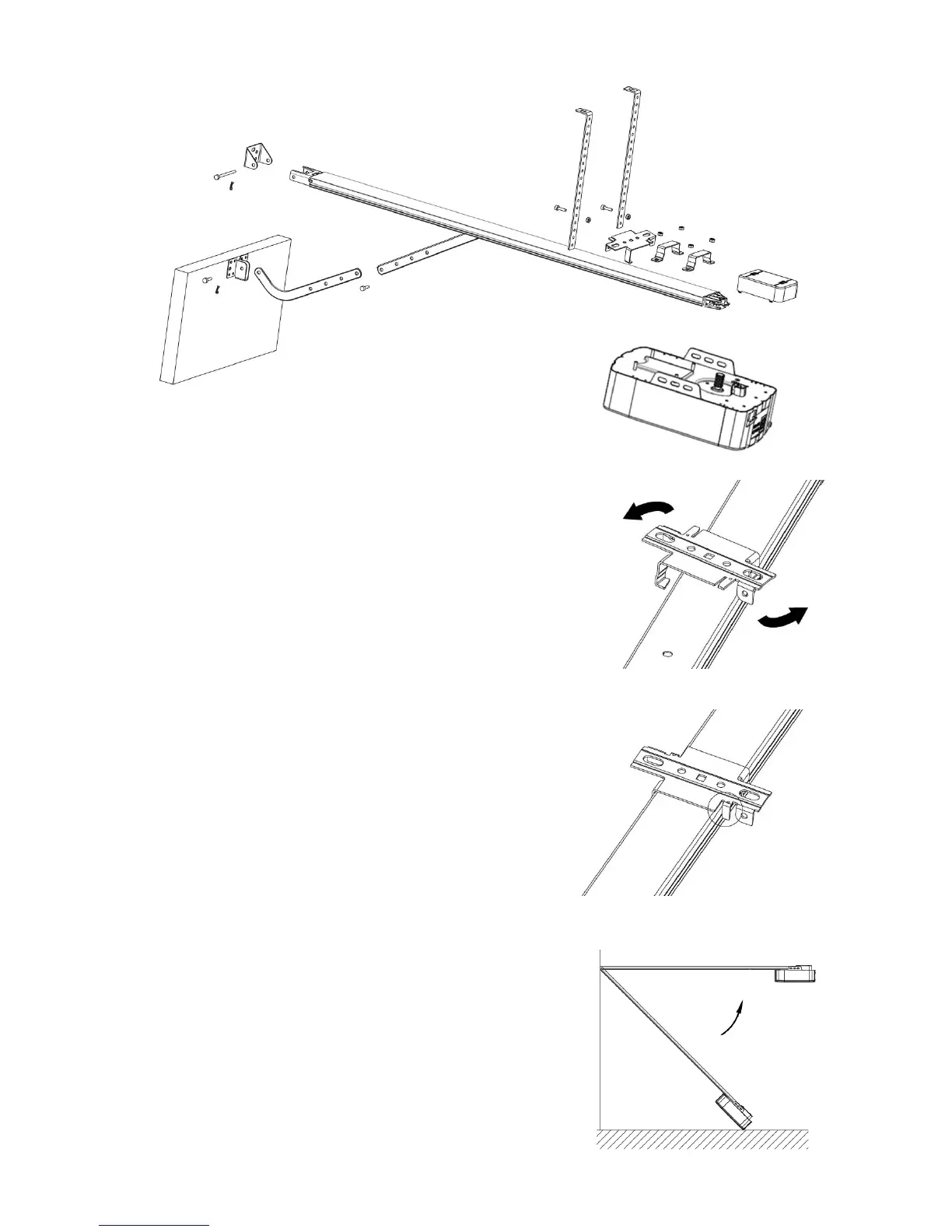

STEP 1 (Figure 8)

Attach the operator to the boom rail. Assemble the 2 “U” hanging

brackets with 6 mm nuts supplied.

STEP 2 (Figure 8)

Place the boom rail and operator assembly centrally on the garage

floor with the operator opposite the garage door. Lift the front of the

rail up to the door bracket. Insert the pivot pin and secure it with the

split pin supplied.

STEP 3 (Figure 9 and 10)

Attach the Easy-Click bracket anywhere along the rail. Position it

where you would like to mount the boom to the ceiling. Once the

bracket is in position, twist until a 'click' sound is heard and bend

the 2 side pieces under to secure the bracket to the boom.

STEP 4 (Figure 11)

Lift and support the operator with a ladder so it is positioned

centrally and level.

WARNING: Do not allow children around the door, opener or

supporting ladder -- serious injury and/or damage may result from

failure to follow this warning.

gure 11

Figure 9

Figure 10

Figure 8
