CSV 409 A caravan charging system instruction manual
6
Issued: 20.02.2020 8050101 BA / EN
Y ATTENTION!
Total discharge!
Damages the caravan battery/towing vehicle battery:
F Avoid continuous 12 V operation. The refrigerator only operates on
12 V when the caravan is hitched to the towing vehicle and the ignition
is switched on.
Maximum permitted charging current 14 A, protected by a 15 A fuse
4 Design
1
1312
1110
2
3
4
5 6 8 9 14 15 16 17 18 19 20 21 22
24
25
26
237

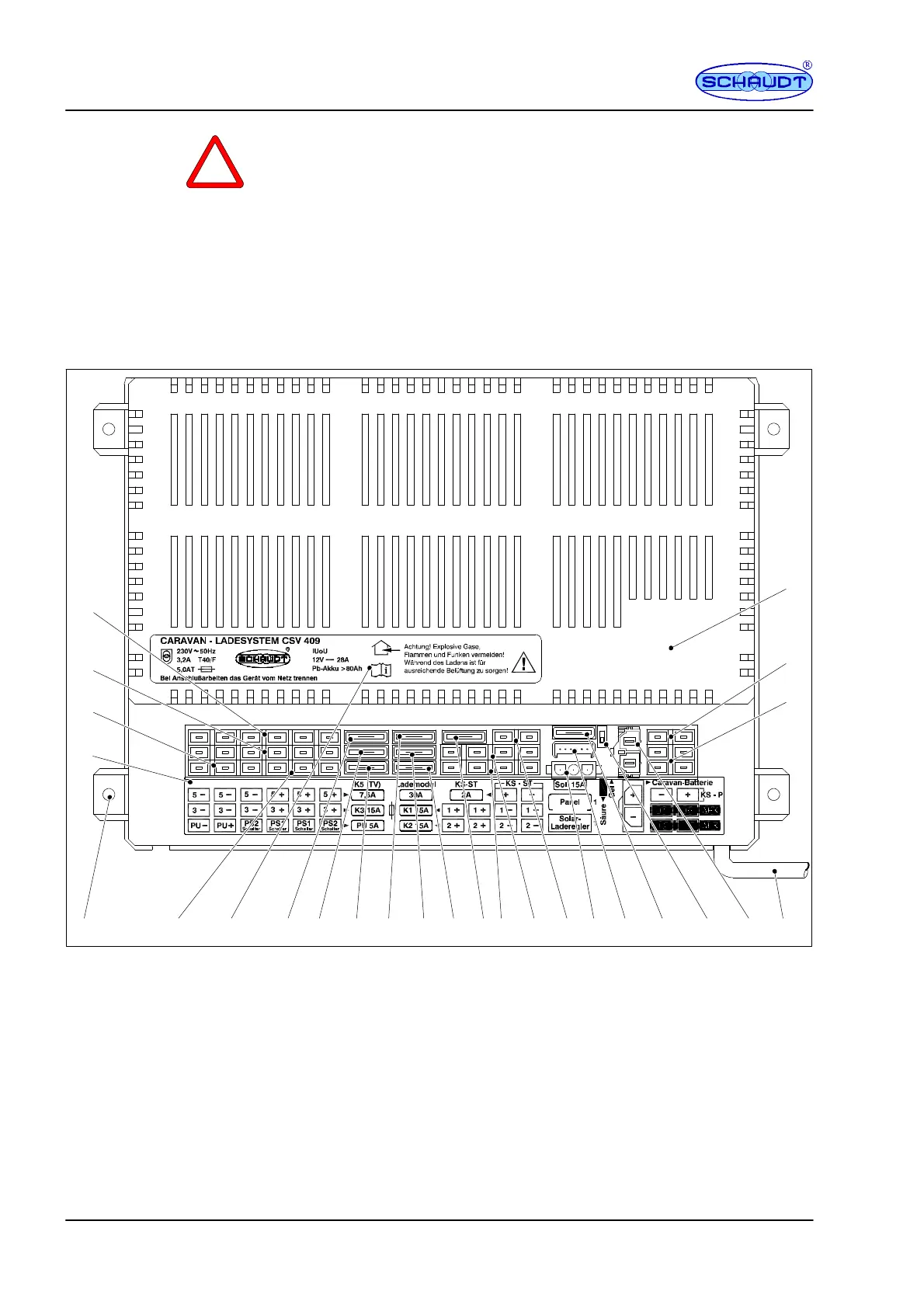

Fig. 2 CSV 409 A caravan charging system viewed from front
1 Circuit 5 connections 14 Flat vehicle fuse for fridge controller
2 Circuit 3 connections 15 Circuit 2 connections
3 Pump connections 16 Circuit 1 connections
4 Adhesive label 17 Fridge controller connection
5 Fixing lug with drilled hole 18 LRS ... solar charger connection
6 Switch 1 and 2 pump connections 19 Indicator and control connections
7 Adhesive label 20 Solar flat fuse
8 Circuit 5 flat vehicle fuse 21 Selector switch for selecting lead-gel/lead-acid battery
9 Circuit 3 flat vehicle fuse 22 Caravan battery connection
10 Flat vehicle fuse for pump 23 Mains cable
11 Flat vehicle fuse for charger module 24 T railer hitch plug-in connection
12 Circuit 1 flat vehicle fuse 25 Refrigerator supply connection
13 Circuit 2 flat vehicle fuse 26 Housing
Battery charging via
solar charger
