CSV 409 A caravan charging system instruction manual
7
Issued: 20.02.2020
8050101 BA / EN
5 Operation
Operation of the caravan power supply occurs exclusively via the connected
control and switch panel.
The CSV 409 A caravan charging system does not require daily operation.
Settings only have to be carried out once if the battery type is changed
(lead-acid or lead-gel), during initial start-up or when retrofitting accessories
(see chapter 5.3 and the CSV 409 A installation instructions).
5.1 Switching o n and o f f
5.1.1 Control and switch panels of type LT ...
The control and switch panels of type LT ... are supplied with individual ope-
rating instructions included with the vehicle. Please refer to these instruc-
tions for operating information.
5.1.2 Switch panel ST 05

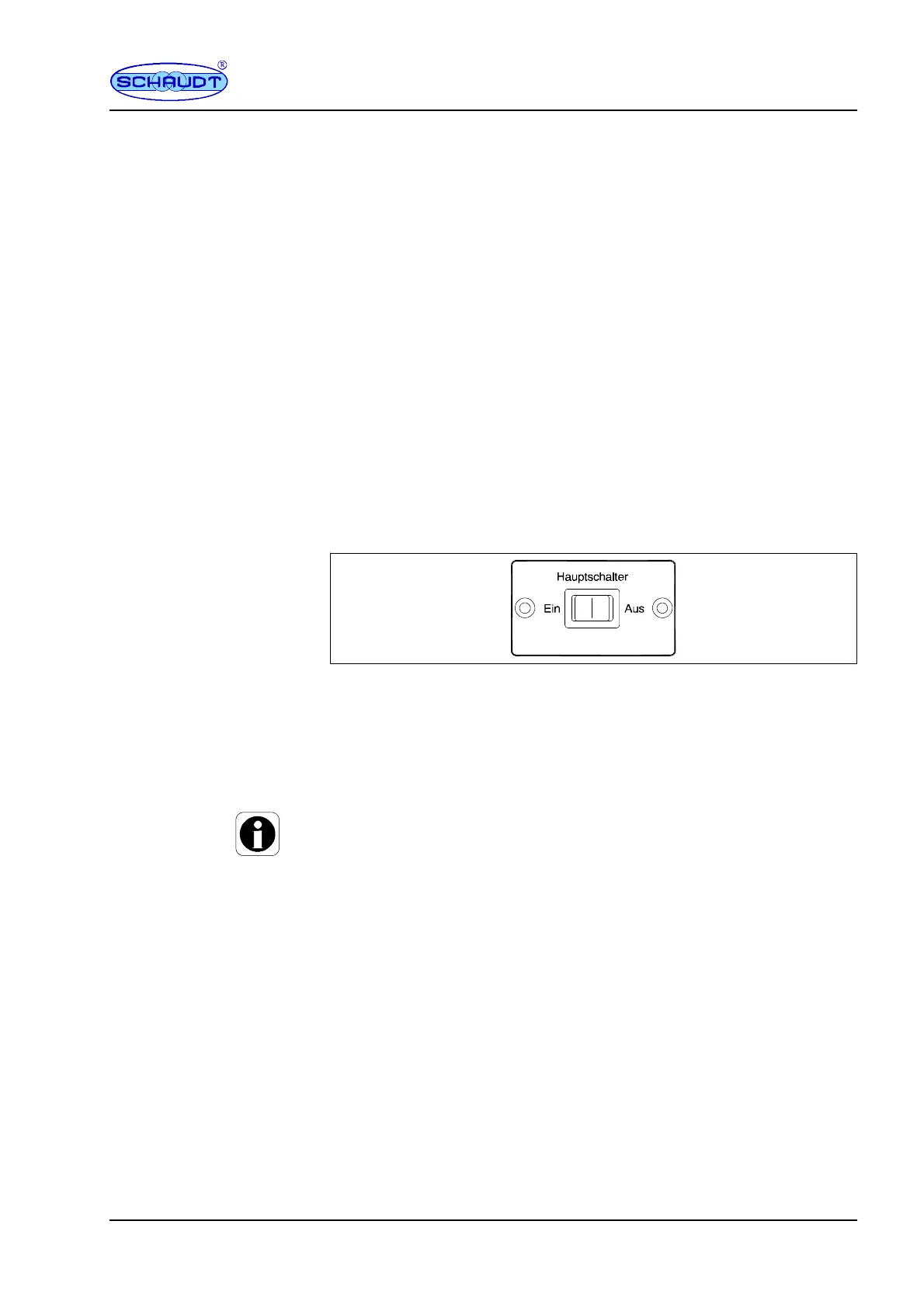

Fig. 3 Switch panel ST 05
In the simplest case, the switch panel ST 05 is connected to the caravan
power supply. It simply has a rocker switch with neutral position.
The 12 V supply to the living area is switched on via the switch. Exception:
F Compressor/AES refrigerator control
Y When starting these consumers for the first time after switching off the
CSV 409 A caravan power supply, replacing the battery or reconnecting
the leisure battery after a longer period, the 12 V main switch on the
switch panel must be switched on briefly.
Press the left-hand button briefly.
The 12 V power supply to the living area is switched on.
Press the right-hand button briefly.
The 12 V power supply to the living area is switched off.
