22 Situation: 18.07.2005 SDT-0018-02EN
Instruction Manual Control and Switch Panel DT 201 B
10 Circuit diagram - for specialist workshop only

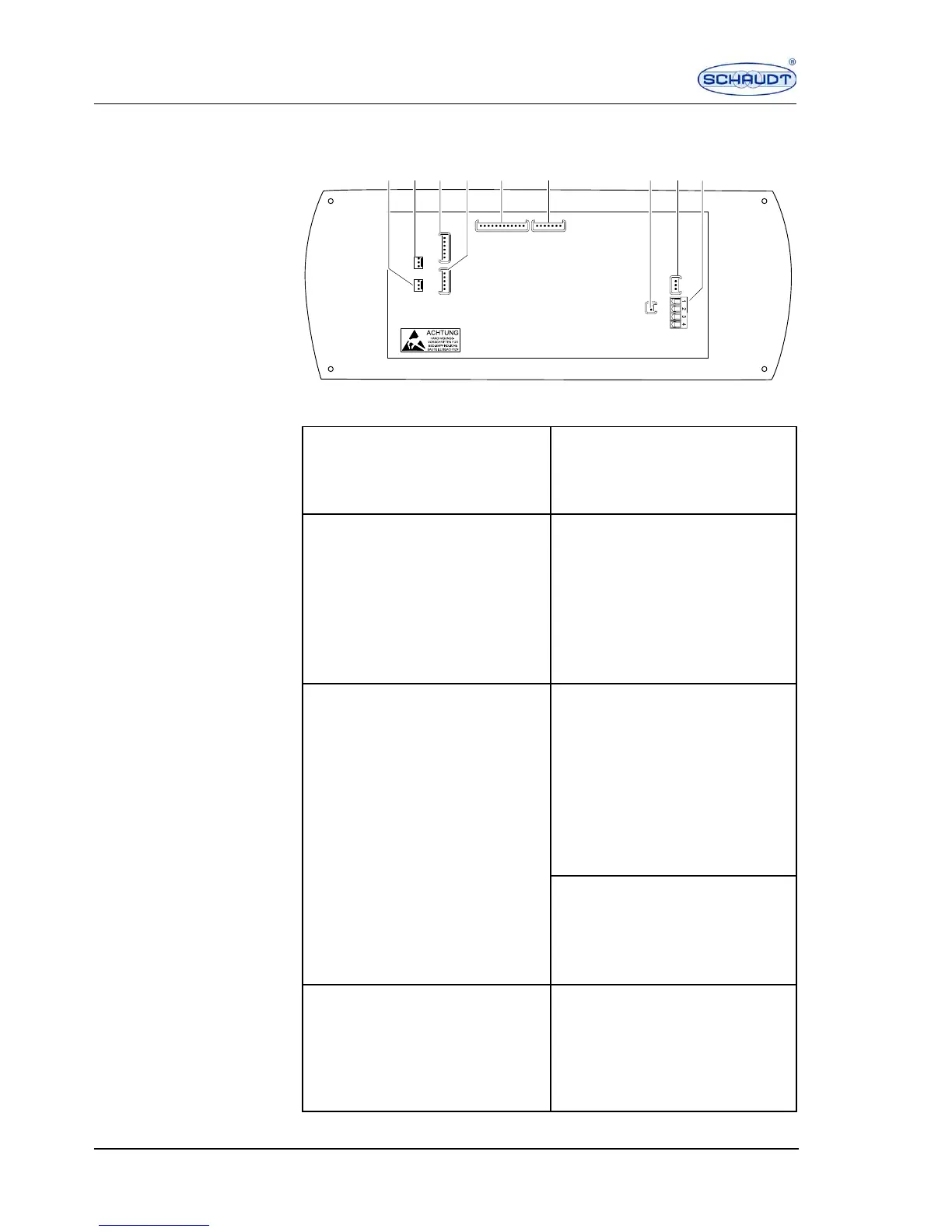

Fig. 7 Circuit diagram for control and switch panel DT 201 B
SDT00093
1
1
1
1
1
1
1
1
Plug assignment for the
circuit plan
X1 ELCO 8263 3 x to gas cylinders X2 ELCO 8263 3 x to gas cylinders
1. Negative defroster 1. Negative defroster
2. + Defroster 2. + Defroster
3. Spare gas 1 3. Spare gas 2
X3 Lumberg MSFQ/0 6 x to water
tank
X4 Lumberg MSFQ/0 5 x to waste
water tank
1. Full 1. Full
2. 3/4 2. 3/4
3. 1/2 3. 1/2
4. 1/4 4. 1/4
5. Base water tank 5. Base waste water tank
6. Not assigned
X5 Lumberg MSFQ/0 12 x to Elec-
trobloc BL 3
X6 Lumberg MSFQ/0 7 x to Elec-
trobloc BL 9
1. Main switch relay 1 OFF 1. D+ base
2. Main switch relay 1 ON 2. Not assigned
3. Main switch relay 2 OFF 3. Not assigned
4. Main switch relay 2 ON 4. Not assigned
5. Mains indicator 5. Not assigned
6. Shunt consumer 6. Signal solar starter battery
7. Shunt battery 7. Signal solar living area battery
8. Negative living area battery sensor X7 Lumberg MSFQ 2 x (3114) to
outside temperature sensor
9. Negative lighting
10. + Living area battery sensor 1. Connection 1
11. + Starter battery 2. Connection 2
12. + Lighting
X8 Lumberg MSFQ 3 x to capacity
tank rod sensor
X9 RIA plug-in/screw-type termi-
nal type 09 4 x to limit switch
1. Signal capacity tank rod sensor 1. Negative
2. Negative capacity tank rod sensor 2. Step
3. + Capacity tank rod sensor 3. Not assigned
4. Not assigned
