Instruction Manual Control and Switch Panel DT 201 B
3 Description and appropriate use
The job of the control and switch panel DT 201 B is to control the electrical
functions in the living area of the motorhome and display various values such
as capacity, voltages, battery currents and water tank levels.
This system includes:
P
An Electrobloc, consisting of a charger module, the 12 V distribution and
the fuses for each circuit
P
Tank sensors for measuring the level in the water tanks
P
An outside temperature sensor

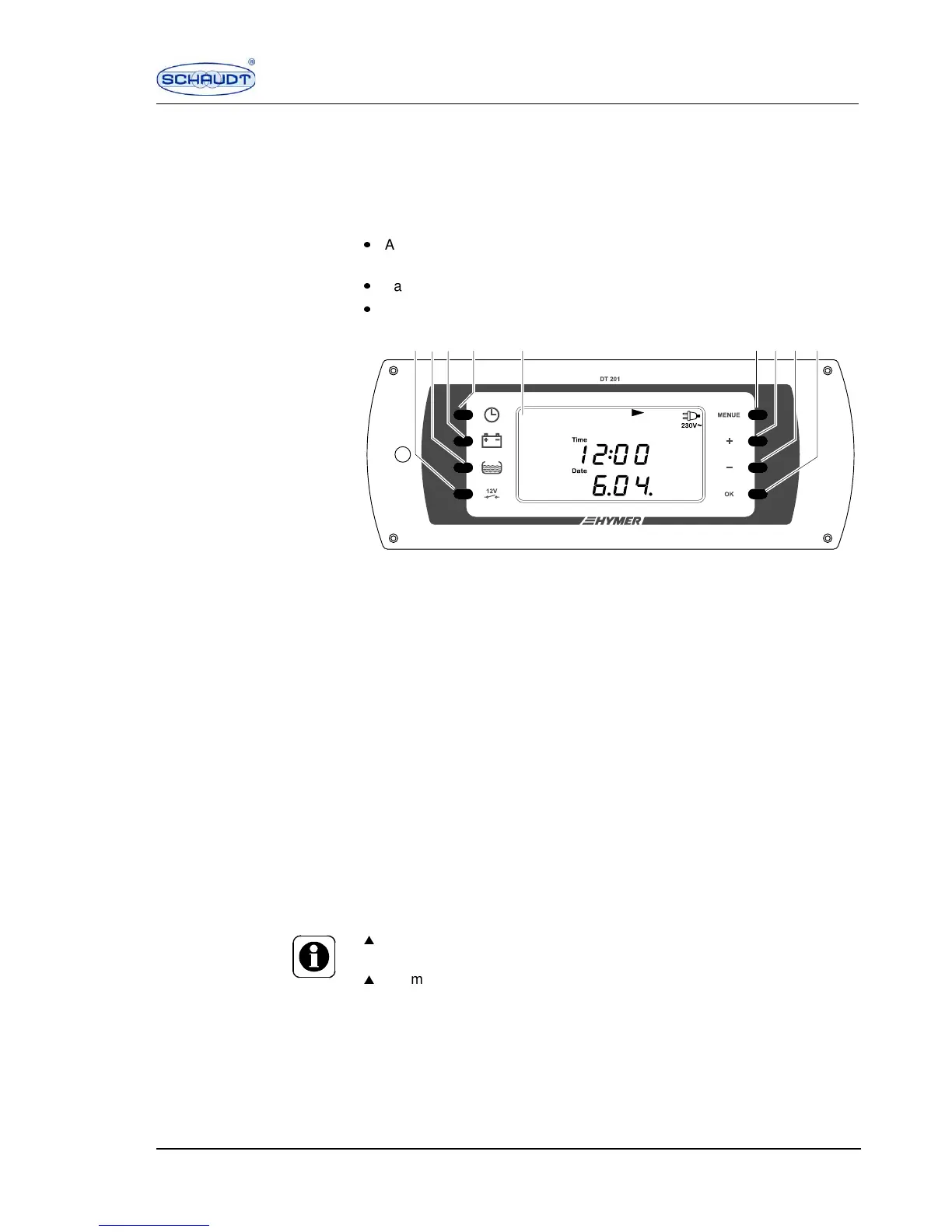

Fig. 1 Control and switch panel DT 201 B
1 12 V main switch button
2 Tank button
3 Battery button
4 Basic display button
5 Display window
6 "MENUE" button, setting menu
7 "+" button (increase indicated value)
8 "–" button (reduce indicated value)
9 "OK" button (selection/confirm settings)
Buttons The various displays and menus are selected and settings made using the
8 buttons on the front of the control and switch panel.
The control and switch panel must first be switched on using the 12 V main
switch button, before the other buttons can be used. When the control and
switch panel is switched on, the basic display is visible.
If the basic display, tank or battery button is pressed, the corresponding dis-
play appears and is illuminated. 20 seconds after pressing the button for the
last time, the basic display appears. It is not illuminated.
The "MENUE" button must be pressed for more than 3 seconds to arrive at
the desired setting menu.
