Instruction Manual EBL 101 D / EBL 101 C with OVP
9
Date: 29.04.2010
811.554 BA / EN
EBL 101 D
DT/LT ...
+--
+--
Control and
display panel
Electroblock
230V AC
12V consumers
Living area battery
Starter battery
Lighting
Pump
Heater
etc.
LR / LRS ...
Solar regulator
(accessory)
LAS ...
Additional charger
(accessory)
EBL 101 C with OVP

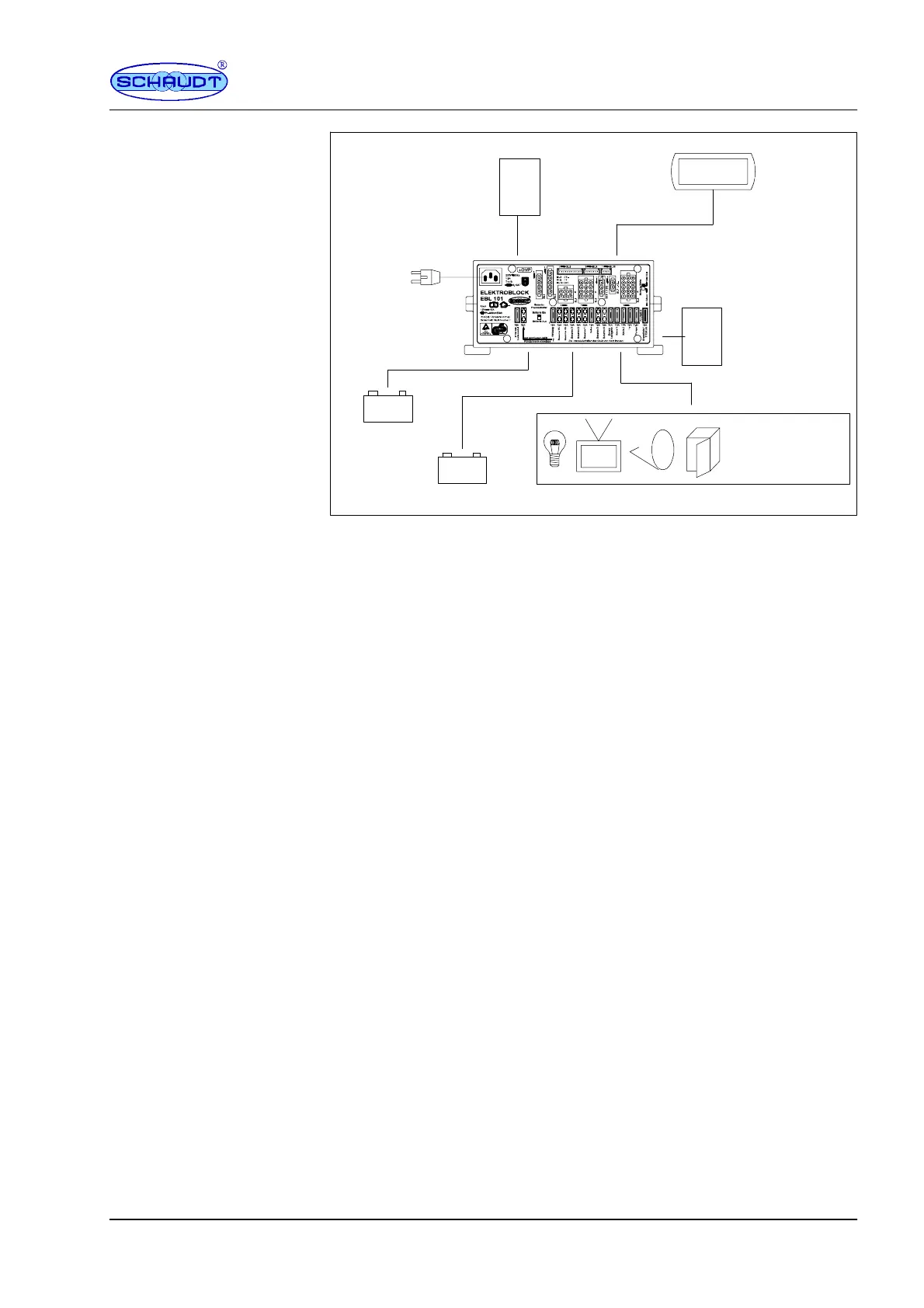

Fig. 2 On-board power supply system
Electroblock EBL 101 D contains:
F
a charge module for charging all connected batteries
F
the entire12 V distribution system
F
fuses for the 12V circuits
F
a main switch module
F
other control and monitoring functions
Electroblock EBL 101 C with OVP contains in addition:
F
overvoltage protection OVP
A DT ... control and switch panel must be connected for operation. This de-
vice controls the electrical functions in the motorhome’s living area as well
as the accessories.
There are connections for an additional battery charger and a solar charge
regulator.
Flat vehicle fuses protect the various circuits. Exceptions here are the step
and the frost protection valve.
F
Excess temperature
F
Overload
F
Short circuit
F
Overvoltage in the 230 V supply (only EBL 101 C with OVP)
230 V AC ± 10 %, 47 to 63 Hz sinusoidal, protection class I
12V outputs may be loaded with max. 90% of the rated current of the re-
spective fuse (see also installation instructions or front panel).
Modules
System devices
Protective circuits
Mains connection
Current-carrying
capacity
