4 Edition: 21.08.2008 811.550 BA / EN
Instruction Manual Electrobloc EBL 101
The electrical management system Electrobloc EBL 101 consists of:
●
the LAS 1218 charger module
●
the 12 V distribution
●
fuses for the 12 V circuits
●
a battery monitor module
●
other control and monitoring functions
The charger module is a primary controlled switch-mode power supply. This
modern switching technology achieves high charging performance at a com-
pact size and low weight.
A control and switch panel has to be connected for operation. This panel con-
trols the electrical functions of the living area in the motorhome, including
accessories.
There are connections for an auxiliary charging unit and a solar charge regu-
lator.

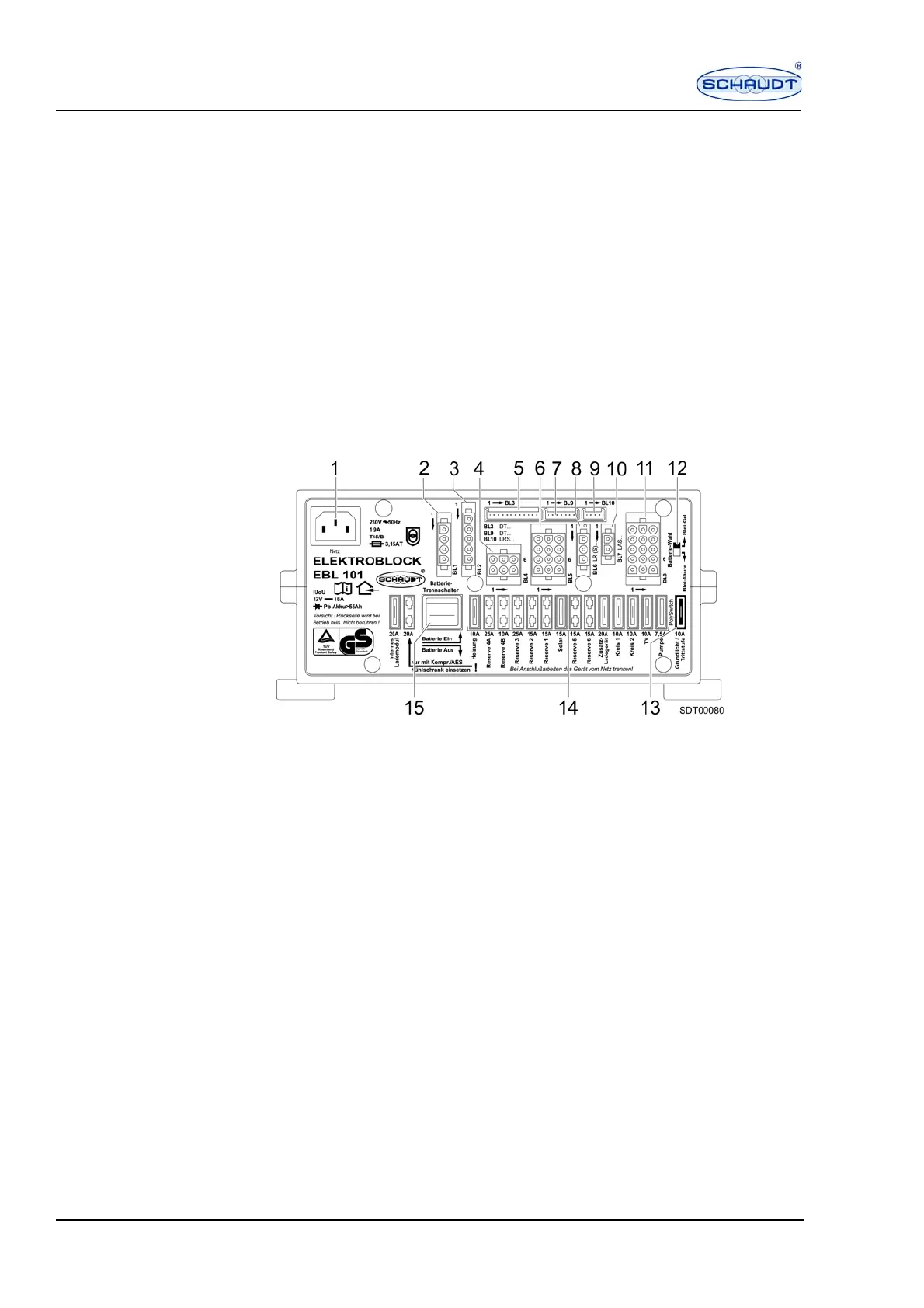

Fig. 1 Front view Electrobloc EBL 101
1 Mains connection
2 Connections for refrigerator
3 Connections for refrigerator power supply, D+ and sensor/control line
4 Connections for heater and floor light/step
5 Connections for control and switch panel
6 Spare connections
7 Connections for control and switch panel
8 Connections for solar charge regulator LR...
9 Connections for solar charge regulator only LRS
10 Connections for auxiliary charging unit
11 Connections for TV, pump and other consumers
12 Battery selector switch
13 PolySwitch fuse for floor light/step
14 Flat vehicle fuses
15 Battery cut-off switch
4 Suitable accessories (not supplied)
Control and switch panel
●
DT 201
●
DT 100 or DT 200 with reduced functionality
Auxiliary charging unit Schaudt battery charging unit type LAS... with up to 18 A charge current
Additional 2-pin charging cable, lengths supplied on request
Solar charge regulator Schaudt solar charge regulator type LR... for solar modules with a total cur-
rent of 14 A with connector plug, including 0.5 m cable
