3.6.2 Starting up
Start-up is performed in different ways depending on electrobloc used (elec-
trobloc with or without battery isolator on the front panel).
Start-up for electrobloc without battery isolator on the front panel (such as
EBL 220):
Battery isolation is enabled if the ”12V” symbol flashes three times after a
power-on attempt (by pressing the ”12V On/Off” button). End as follows:
" Press, and keep pressed, the ”12V On/Off” button (underneath the indi-
cator,Fig1,Pos.2).
F After about 5 seconds, press the ”12V” symbol three times.
" Release the ”12V On/Off” button.
F Battery isolation is disabled.
F The display lights up after about 2 seconds.
F The 12V living area supply is switched on.
Start-up for electrobloc with battery isolator on the front panel (such as
EBL 101):
" Enable battery isolator on electrobloc.
4 Application and functions in detail
The MP 22-T display panel is the central control panel for the EBL ... elec-
trobloc which powers all 12V consumers in the vehicle’s electrical system. It
is usually installed in an easily accessible place high up near the door of the
motorhome/caravan.
EBL ...
+--
+--
Display panel
Electrobloc
230V AC
12V consumers
Living area battery
Starter battery
Lighting
etc.
LR ...
Solar regulator
(accessory)
LAS ...
Additional char
g
(accessory)
Solar cell
(accessory)
MP 22-T

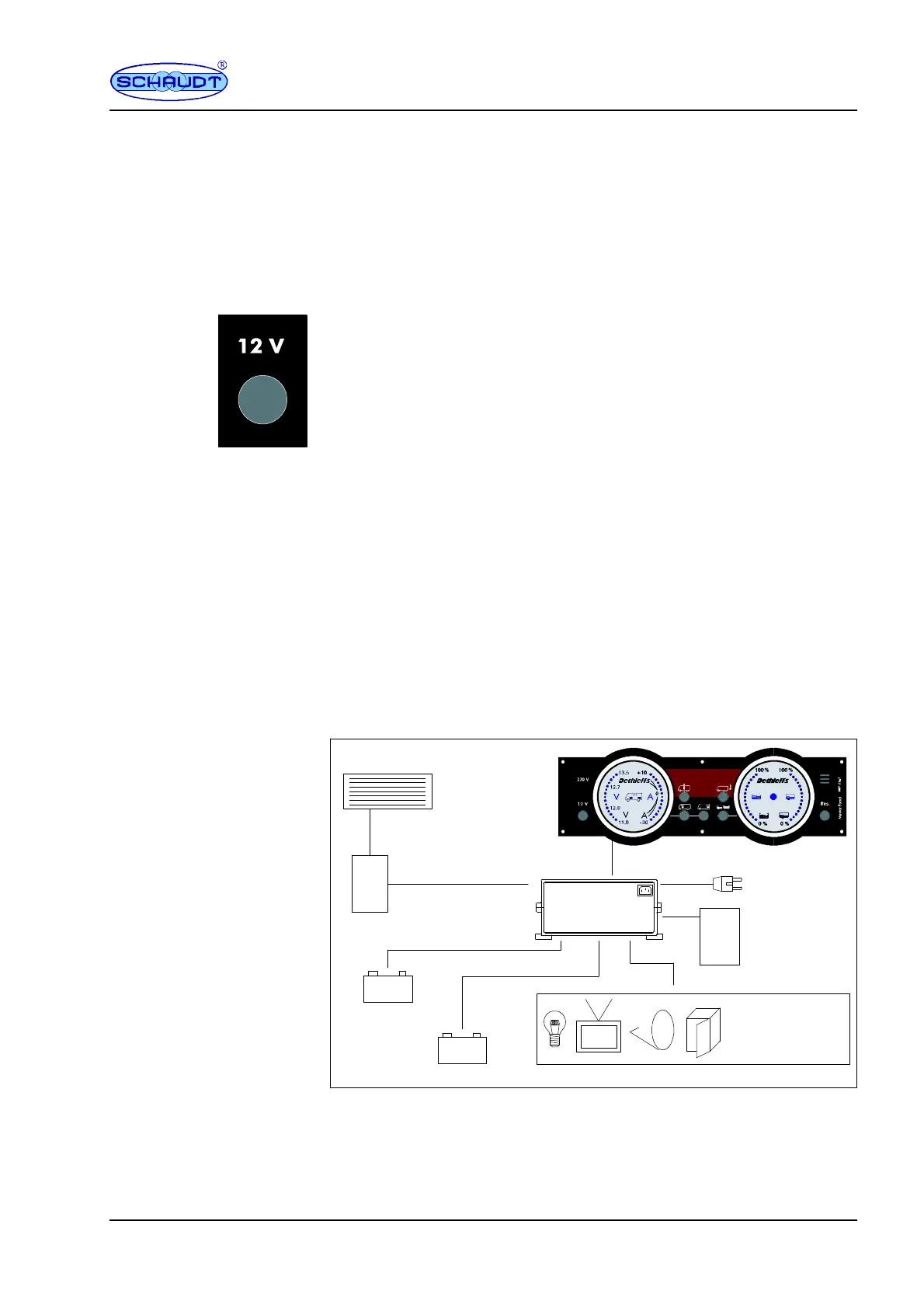

Bild 6 On-board power supply system
An EBL ... electrobloc must be connected for operation. This powers the
12V devices in the motorhome/caravan and charges the living area battery
and starter battery.
System devices
