Instruction Manual MP 22-T Display Panel
3
Date: 28.05.2014
831.416 BA / EN
2 Introduction
This instruction manual contains important information on the safe operation
of equipment supplied by Schaudt. Make sure you read and follow the safety
instructions provided.
The instruction manual should be kept in the vehicle at all times. Ensure that
other users are made aware of the safety regulations.
3 Operation
1
3
5
2
9
467
8

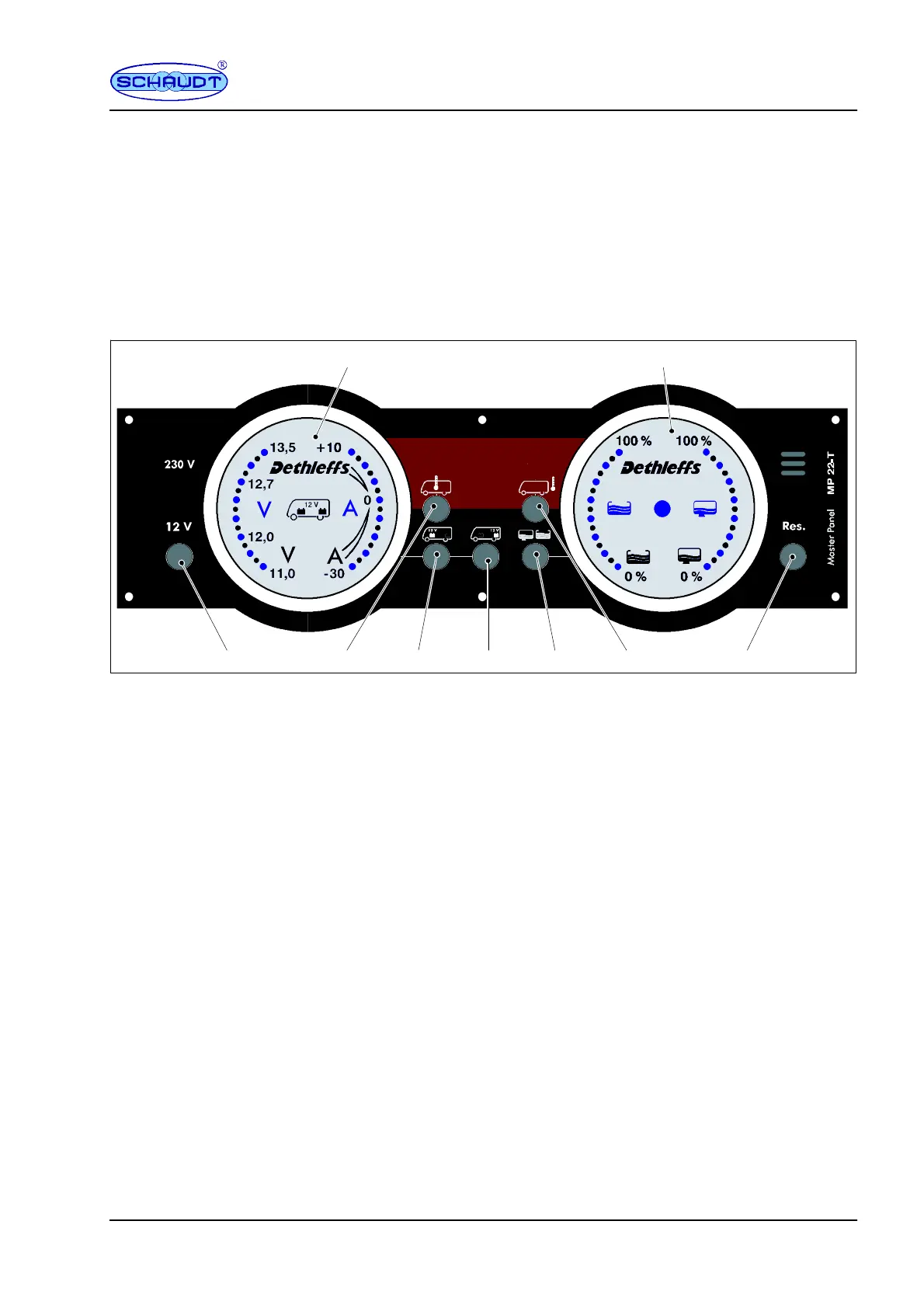

Bild 1 Layout of the MP 22-T display panel
1 ”Batteries” display panel
2 ”Tanks” display panel
3 ”12V On/Off” button
4 ”Interior room temperature” button
5 ”V ehicle battery” button
6 ”Living area battery” button
7 ”Tanks” button
8 ”External temperature” button
9 ”Reserve” button
The MP 22-T display panel has seven controls (from left to right):
F A button to switch the 12V supply on and off
F A button to show the interior room temperature
F A button to query the battery voltage of the vehicle
F A button to query the battery voltage and the current of the living area
battery
F A button to show the external room temperature
F A button to query the tank fill levels
F A reserve button
The luminance of all LEDs and symbols automatically adjusts to the surroun-
ding brightness (in 15 increments). In the event of a sudden change in the
surrounding brightness (such as the light in the living area being turned on),
the luminance of the LEDs changes by one increment per second.
Light intensity of the
display
