Instruction Manual MP 22-T Display Panel
17
Date: 28.05.2014
831.416 BA / EN

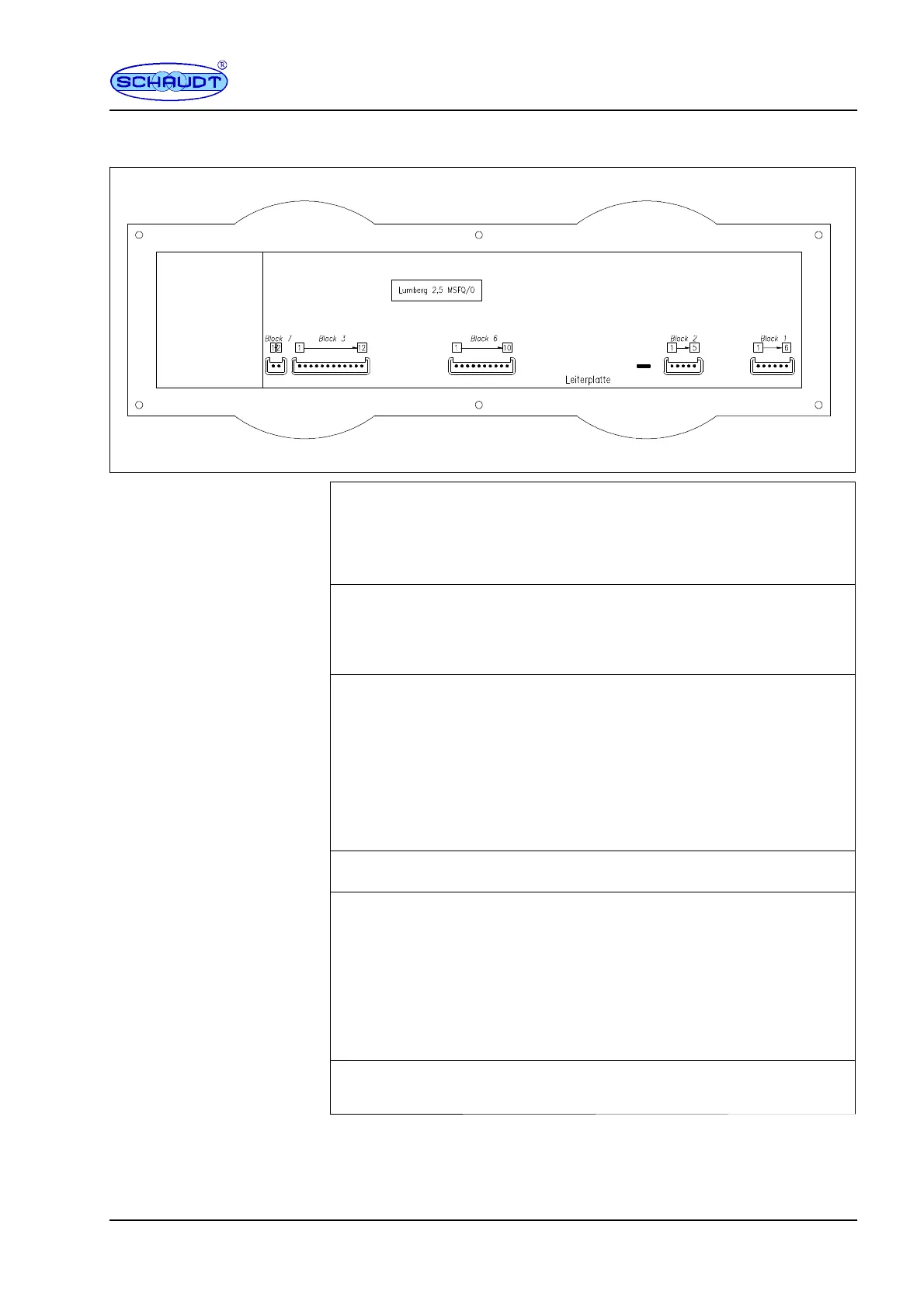

E Block diagram/conn ectio n diagram
X1X2X3 X5X6X7
X1 Lumberg MSFQ 6-way on water tank
1full
23/4
31/2
41/4
5 Base water tank
6n.c.
X2 Lumberg MSFQ 5-way on wastewater tank
1full
23/4
31/2
41/4
5 Base wastewater tank
X3 Lumberg MSFQ 12-way on EBL ...
1 Main switch relay 1 Off
2 Main switch relay 1 On
3 Main switch relay 2 Off
4 Main switch relay 2 On
5 Mains signal
6 Shunt consumer
7 Shunt battery
8 Negative living area battery sensor
9n.c.
10 + living area battery sensor
11 + starter battery 12V
12 +Lighting
X5 contact lug, 2.8mm (use optional)
12V for Res. ”ON”, loading max. 200mA
X6Lumberg MSFQ 10-way on EBL ...
(only certain EBL ..., optional)
1n.c.
2Pump
3n.c.
4 Frost protection valve
5n.c.
6n.c.
7n.c.
8n.c.
9n.c.
10 n.c.
X7 Lumberg MSFQ 2-way external temperature sensor
1KTYpin1
2KTYpin2
