Schauer CM1A - Trouble Shooting; Charger Does Not Work; Charger Has No DC Output

8
 If the Battery is out of the vehicle.
o Switch OFF and Remove the AC Power Socket from the outlet.
o Remove the Black lead and then the Red lead.
o Check electrolyte levels if possible.
(As they may need topping up with distilled water after charging)

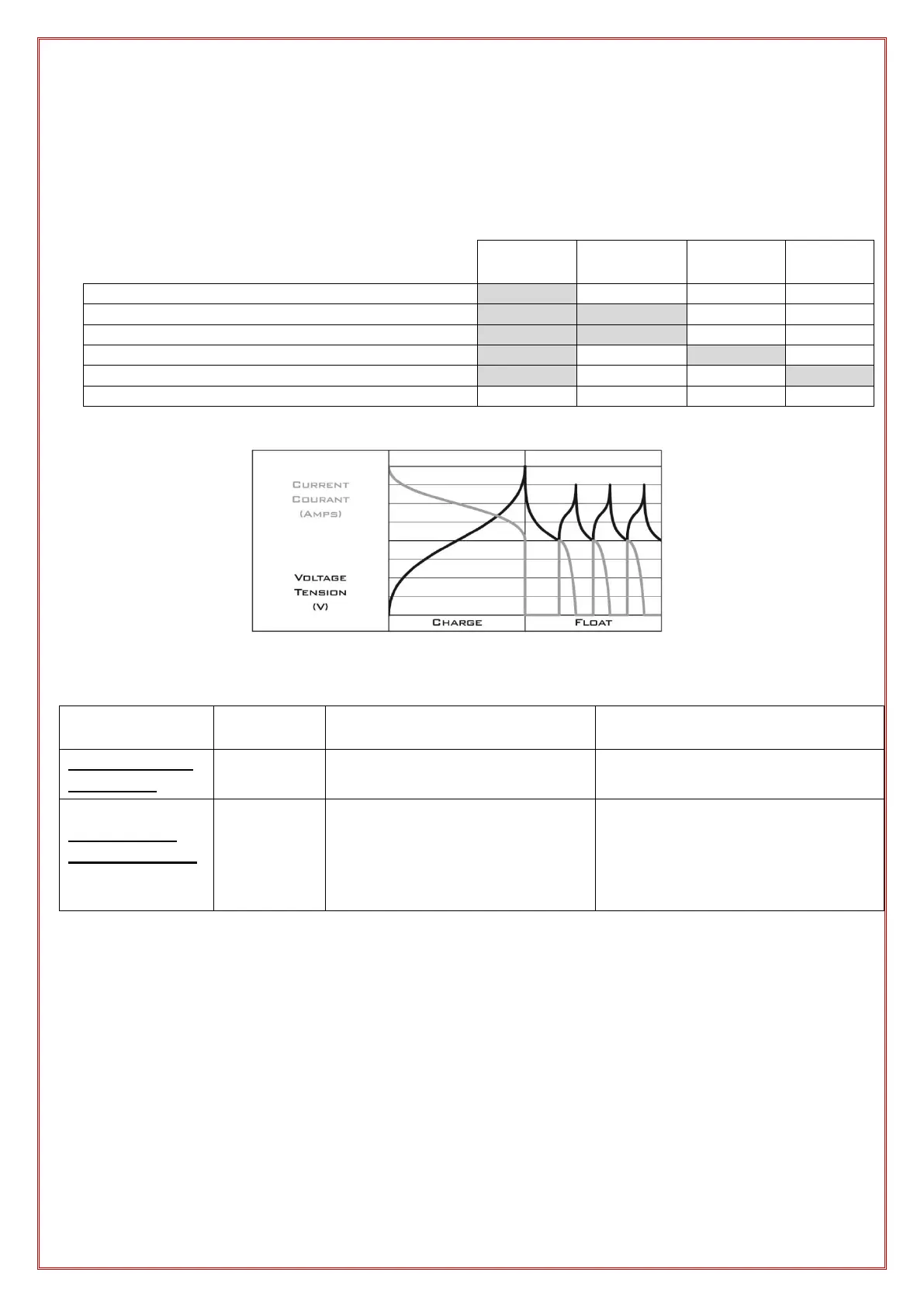

LED STATUS INIDICATOR TABLE:
Power
Charging
Full
Fault
(Red)
(Yellow)
(Green)
(Red)
A.C. Power connected, battery disconnected
ON
OFF
OFF
OFF
Bulk Charging
ON
ON
OFF
OFF
Level 1 Charging
ON
ON
OFF
OFF
Level 2,3 Charging
ON
OFF
ON
OFF
Battery Reverse polarity connection
ON
OFF
OFF
ON
A.C. Power OFF
OFF
OFF
OFF
OFF
CHARGING CURVE (VOLTAGE):
TROUBLE SHOOTING
Types of
Problems
Indication
Possible Causes
Suggested Solution
Charger does
not work?
No Indicator
lights on
- No AC power
- Check AC connections and make
sure Power Point is switched ON
Charger has
no DC output?
Fault LED is
On.
- Reverse polarity connection to
Battery
- Check that the crocodile clips
haven’t fallen off the battery.
- Check that the crocodile clips /
ring terminals are connected to the
correct polarity.
MAINTENANCE
 The charger is maintenance free. If the power cord is damaged, the charger must be left to
the reseller for maintenance. The case should be cleaned occasionally. The charger should
be disconnected from the power while cleaning.
702-000465-01-R
