• Hands may never enter the processing zone when
the machine is in operation.
• Release the handle button and switch o the ma-
chine prior to any operations.
Warning!
This electric tool generates an electromagnetic eld
during operation. This eld can impair active or passive
medical implants under certain conditions. In order to
prevent the risk of serious or deadly injuries, we recom-
mend that persons with medical implants consult with
their physician and the manufacturer of the medical im-
plant prior to operating the electric tool.
6. Technical data
AC motor .........................................220 - 240 V~ 50 Hz
Power S1 ........................................................ 1700 Watt
Operating mode ...................................S6 25%* 2000W
Idle speed n0 ............................................... 4800 min-1
Carbide saw blade ..................... ø 210 x ø 30 x 2,6 mm
Number of teeth ......................................................... 24
Maximum tooth width of saw blade ...................... 3 mm
Swivel range .......................................... -45° / 0°/ +45°
Mitre cut ........................................... 0° to 45° to the left
Saw width at 90° ....................................... 340 x 65 mm
Saw width at 45° ....................................... 240 x 65 mm
Saw width at 2 x 45°
(double mitre cut)) ..................................... 240 x 38 mm
Protection class .................................................... II /
Weight ......................................................... ca. 12,15 kg
Laser class ................................................................... 2
Wavelength of laser ........................................... 650 nm
Laser output .......................................................< 1 mW
* S6, continuous operation periodic duty. Identical duty
cycles with a period at load followed by a period at no
load. Running time 10 minutes; duty cycle is 25% of the
running time.
The work piece must have a minimum height of 3
mm and a minimum width of 10 mm.
Make sure that the workpiece is always secured
with the clamping device.

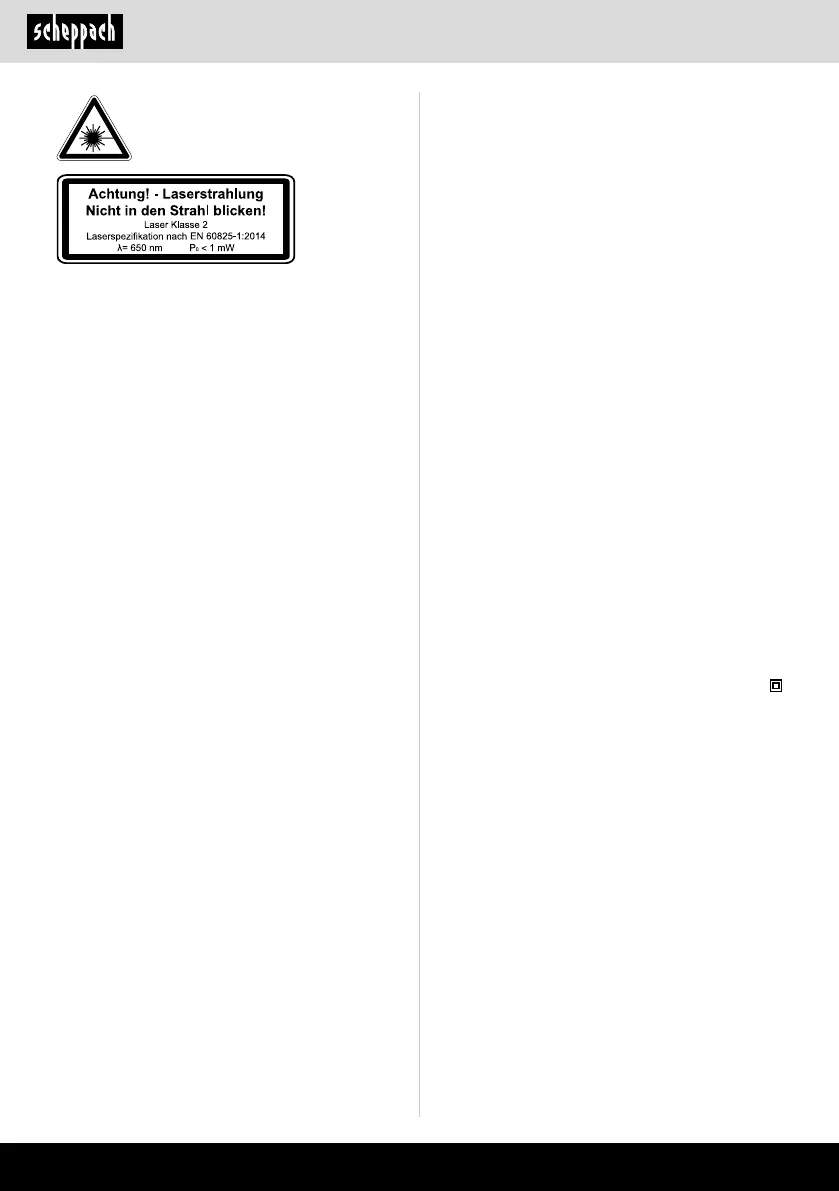

Attention: Laser radiation
Do not stare into the beam
Class 2 laser
Protect yourself and you environment from acci-
dents using suitable precautionary measures!
• Do not look directly into the laser beam with unpro-
tected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
• Caution - methods other than those specied here
can result in dangerous radiation exposure.
• Never open the laser module. Unexpected exposure
to the beam can occur.
• The laser may not be replaced with a dierent type
of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representative.
Residual risks
The machine has been built according to the state
of the art and the recognised technical safety re-
quirements. However, individual residual risks can
arise during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been met,
some non-obvious residual risks may still remain.
• Residual risks can be minimised if the „Safety infor-
mation“ and the „Proper use“ are observed along
with the whole of the operating instructions.
• Do not load the machine unnecessarily: excessive
pressure when sawing will quickly damage the saw
blade, which results in reduced output of the ma-
chine in the processing and in cut precision.
• When cutting plastic material, please always use
clamps: the parts which should be cut must always
be xed between the clamps.
• Avoid accidental starting of the machine: the oper-
ating button may not be pressed when inserting the
plug in an outlet.
• Use the tool that is recommended in this manual.
In doing so, your machine provides optimal perfor-
mance.
