18. Prior to use, make sure that the insertion tool
meets the technical requirements of this electric
tool and is properly fastened.
19. Only use the supplied saw blade for cutting
wood, never for the processing of metals.
20. Only use saw blade diameters in accordance
with the markings on the saw.
21. Use additional workpiece supports, if required for
workpiece stability.
22. Workpiece support extensions must always be
secured and used during work.
23. Replace table inserts when worn!
24. Avoid overheating of the saw teeth.
25. When sawing plastic, avoid melting of the plastic.
Use the appropriate saw blades for this purpose.
Replace damaged or worn saw blades immedi-
ately. When the saw blade overheats, stop the
machine. Allow the saw blade to cool down be-
fore using the power tool again.

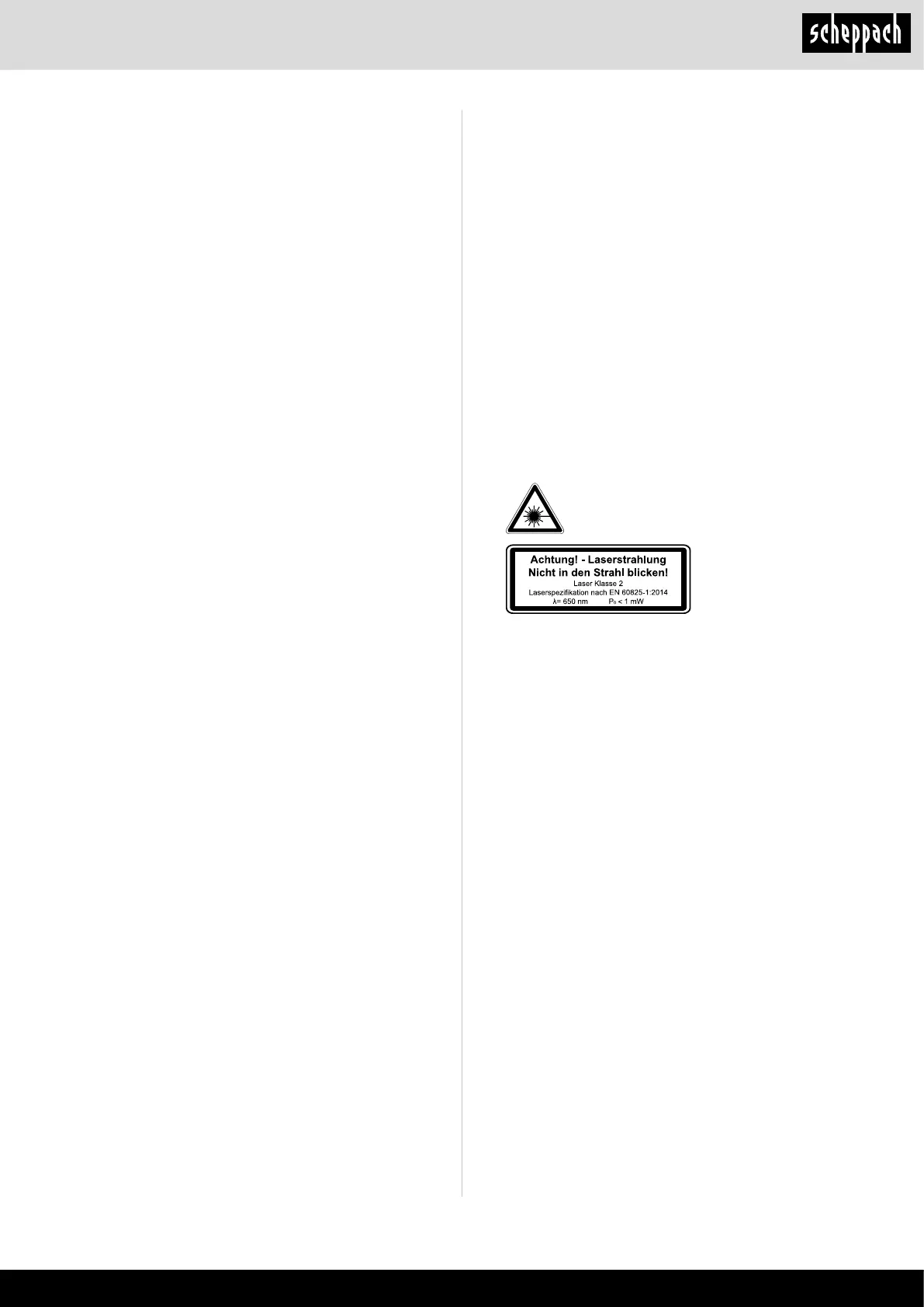

Attention: Laser radiation
Do not stare into the beam
Class 2 laser
Protect yourself and you environment from acci-
dents using suitable precautionary measures!
Do not look directly into the laser beam with unpro-
tected eyes.
Never look into the path of the beam.
Never point the laser beam towards reecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
Caution - methods other than those specied here
can result in dangerous radiation exposure.
Never open the laser module. Unexpected expo-
sure to the beam can occur.
If you do not use the device for a long time, the bat-
teries should be removed.
The laser may not be replaced with a different type
of laser.
Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representative.
Safety instructions for handling batteries
1. Always make sure that the batteries are inserted
with the correct polarity (+ and –), as indicated
on the battery.
2. Do not short-circuit batteries.
3. Do not charge non-rechargeable batteries.
4. Do not overcharge batteries!
5. Do not mix old and new batteries or batteries of
different types or manufacturers! Replace an en-
tire set of batteries at the same time.
pack. Then work to free the jammed materi-
al. Continued sawing with a jammed workpiece
could cause loss of control or damage to the mi-
tre saw.
r) After nishing the cut, release the switch,
hold the saw head down and wait for the blade
to stop before removing the cut-off piece.
Reaching with your hand near the coasting blade
is dangerous.
s) Hold the handle rmly when making an incom-
plete cut or when releasing the switch before
the saw head is completely in the down posi-
tion. The braking action of the saw may cause
the saw head to be suddenly pulled downward,
causing a risk of injury.
Safety Instructions for the handling of saw blades
1. Do not use damaged or deformed saw blades.
2. Do not use any insertion tools with cracks. Sort
out cracked insertion tools. Repairs are not per-
mitted.
3. Do not use saw blades made of high speed steel.
4. Check the condition of the saw blades before us-
ing the cross cut mitre saw.
5. Make sure that a suitable saw blade for the ma-
terial to be cut is selected.
6. Only use saw blades recommended by the man-
ufacturer. Saw blades designed to cut wood and
similar materials must comply with EN 847-1.
7. Do not use saw blades made of high-speed alloy
steel (HSS steel).
8. Only use saw blades for which the maximum per-
missible speed is not lower than the maximum
spindle speed of the cross cut mitre saw and
which are suitable for the material to be cut.
9. Observe the saw blade direction of rotation.
10. Only insertion the saw blade if you have mas-
tered their use.
11. Observe the maximum speed. The maximum
speed specied on the insertion tool may not be
exceeded. If specied, observe the speed range.
12. Clean grease, oil and water off of the clamping
surfaces.
13. Do not use any loose reducing rings or bushes
for the reducing of holes on saw blades.
14. Make sure that xed reducer rings for securing
the insertion tool have the same diameter and
have at least 1/3 of the cutting diameter.
15. Make sure that xed reducer rings are parallel to
each other.
16. Handle insertion tool with caution. They are ide-
ally stored in the originally package or special
containers. Wear protective gloves in order to im-
prove grip and to further reduce the risk of injury.
17. Prior to the use of insertion tools, make sure that
all protective devices are properly fastened.
