45GB
7.3 Assembly

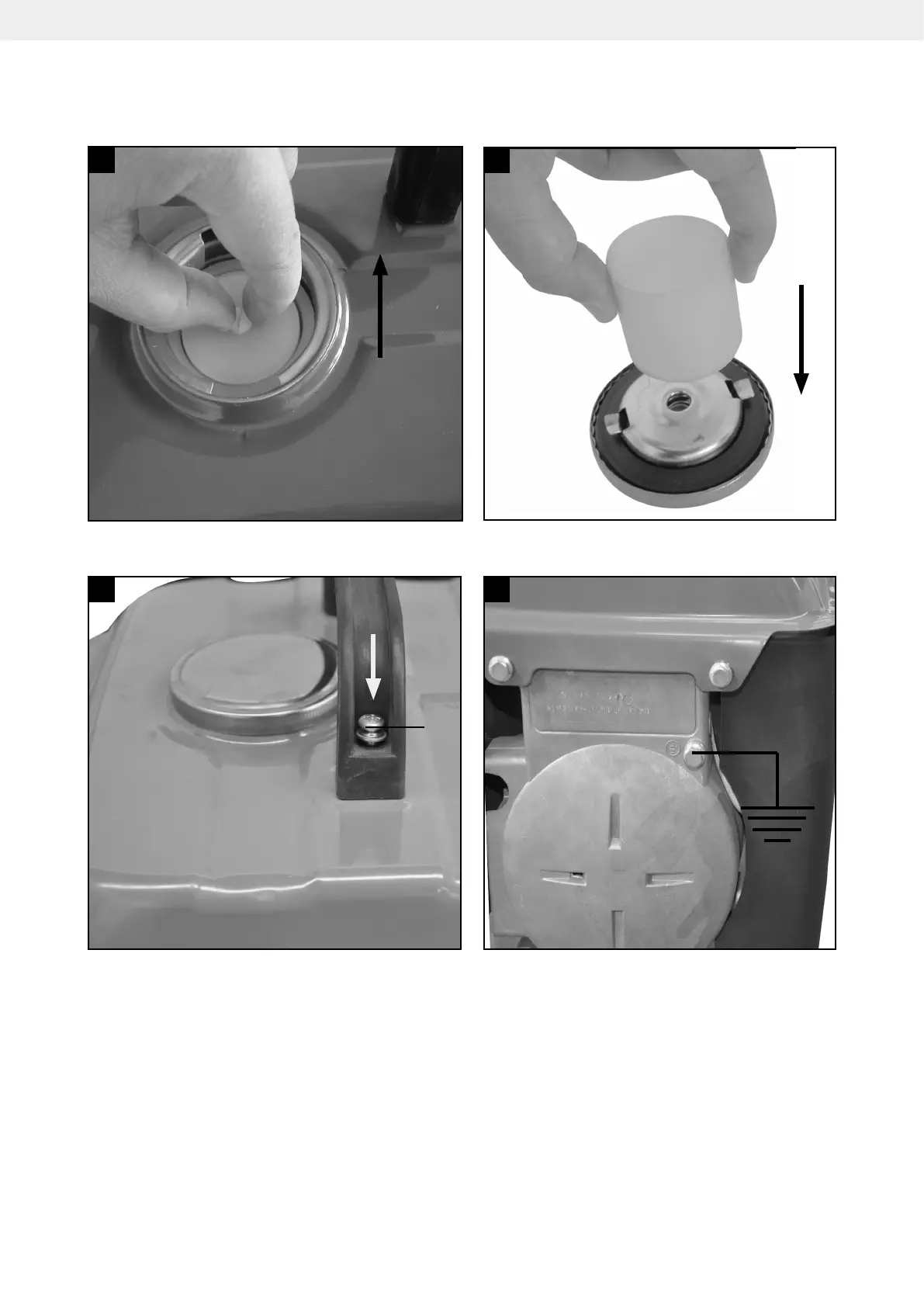

Take the measuring jug out of the tank (Fig. 3a) and t into the recess on the bottom of the tank
cover (Figure 3b).
3b
3a
Use on both sides 1 screw and 1 washer (9) to fast the carry handle (2) onto the tank (Fig.3)
3c
9
4
7.4 Connecting to earth
The housing is allowed to be connected to earth in order to discharge static electricity. To do
this, connect one end of a cable to the earth connection on the generator (Fig. 4) and the other
end to an external earth (for example an earthing rod).
8. Operation
Important! Before using the appliance for the rst time the tank must be lled with a petrol mix-
ture in a mixing ratio of 1:40. To do so, use the measuring jug inside the tank (Fig. 3b) (Impor-
tant: One increment of the scale equals 20 ml). Shake the petrol mixture before lling into the
tank.
