Antenna setup

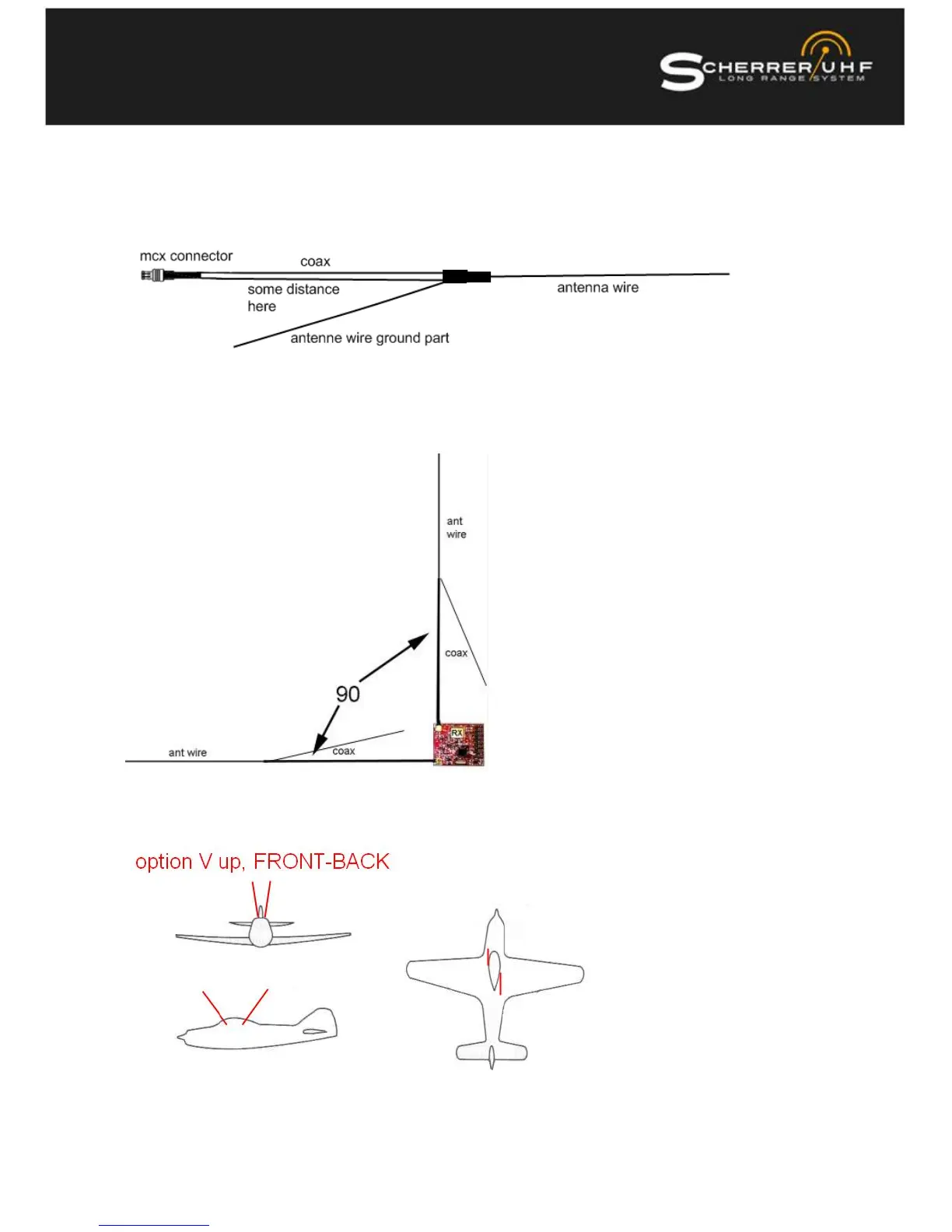

The ground wire must be separated a bit from the coax. There are no rules of how much of a distance, but
3-5 cm is normally used.
RX antennas always have to mount with a 90 degree from each other. With this setup there will be no lost
spots. See this example with an airplane. - The antennas are the red lines.
