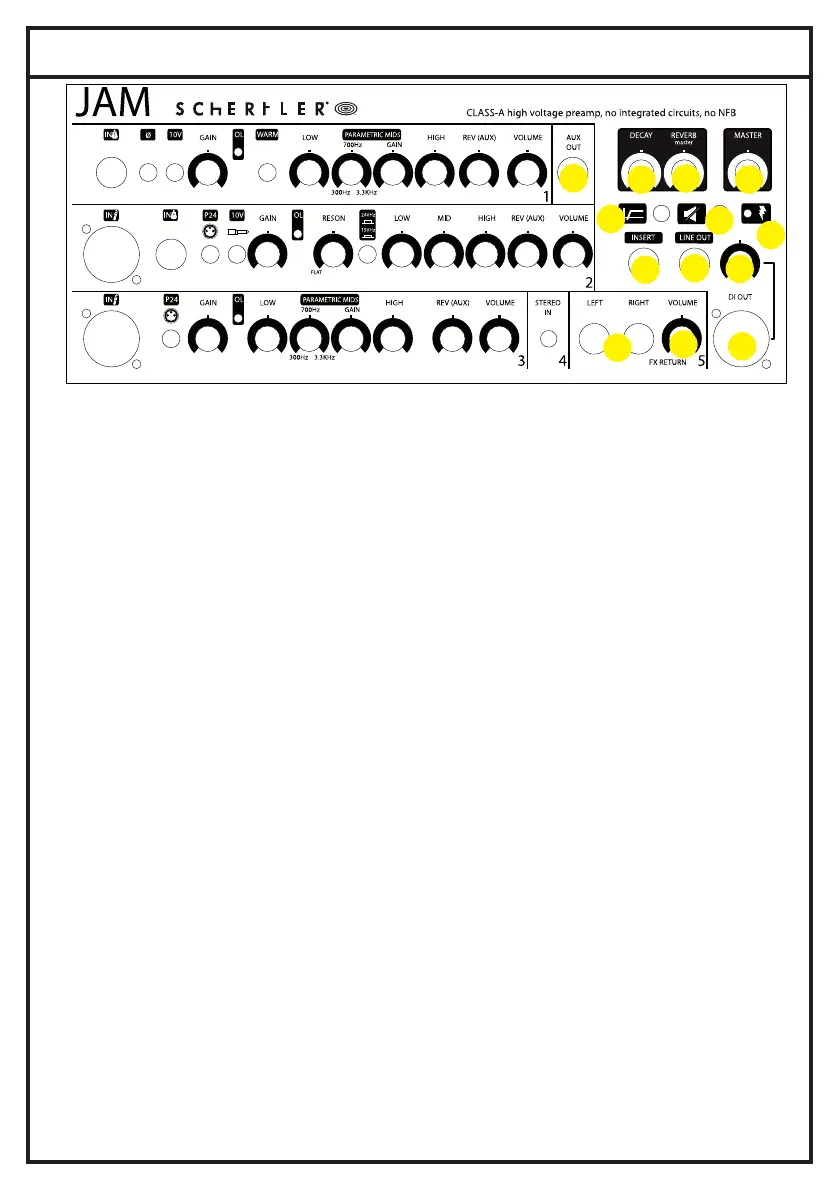

5. MASTER SECTION / FX RETURN / AUX OUT
5.1.
5.4.
5.3.
5.5.
5.2.
5.6.
5.1. DI-OUT
General output. XLR balanced type connector for connections of external systems. The output volume does not depend on the regulation of the
MASTER-VOL but is effected by changes in individual channel volume.
5.2. DI-OUT vol
This rotary control sets the output level on the DI-OUT
5.3. LOW CUT
When engaged, this filter cuts all the frequencies below 180Hz. This function is ideal if you play an instrument that generates aggressively low frequencies,
it enables you to connect a subwoofer and prevent unpleasant vibration and possible damage to your JAM.
5.4. MASTER
Control overall system volume
5.5. LINE OUT
This unbalanced jack plug enables the connection of external systems. The output volume depends on the regulation of the MASTER-VOL.
5.6. INSERT
This stereo jack plug enables the connection of an external device (compressor, equalizer, etc.) in series to all the outputs
5.7. REVERB master
This control regulates the general level of the digital reverb, common to all channels. The amount of the effect can be regulated individually for the
single channel through the dedicated controls.
5.8.DECAY
This control regulates the length of the reverb (time of the reverb from attack to silence).
5.9. MUTE
Mute switch, cuts the audio on the master
5.10. Power LED
This LED indicates when the amplifier is switched ON
5.11 AUX OUT
Additional output. This mono jack plug enables the connection to other systems.
5.12. FX Return
Left and Right unbalanced jack plug for FX Return
5.13. FX Return volume
This rotary control sets the output level on the FX Return
5.7.
5.10.
5.9.
5.8.
5.11.
5.12.
5.13.
