Installation Instructions

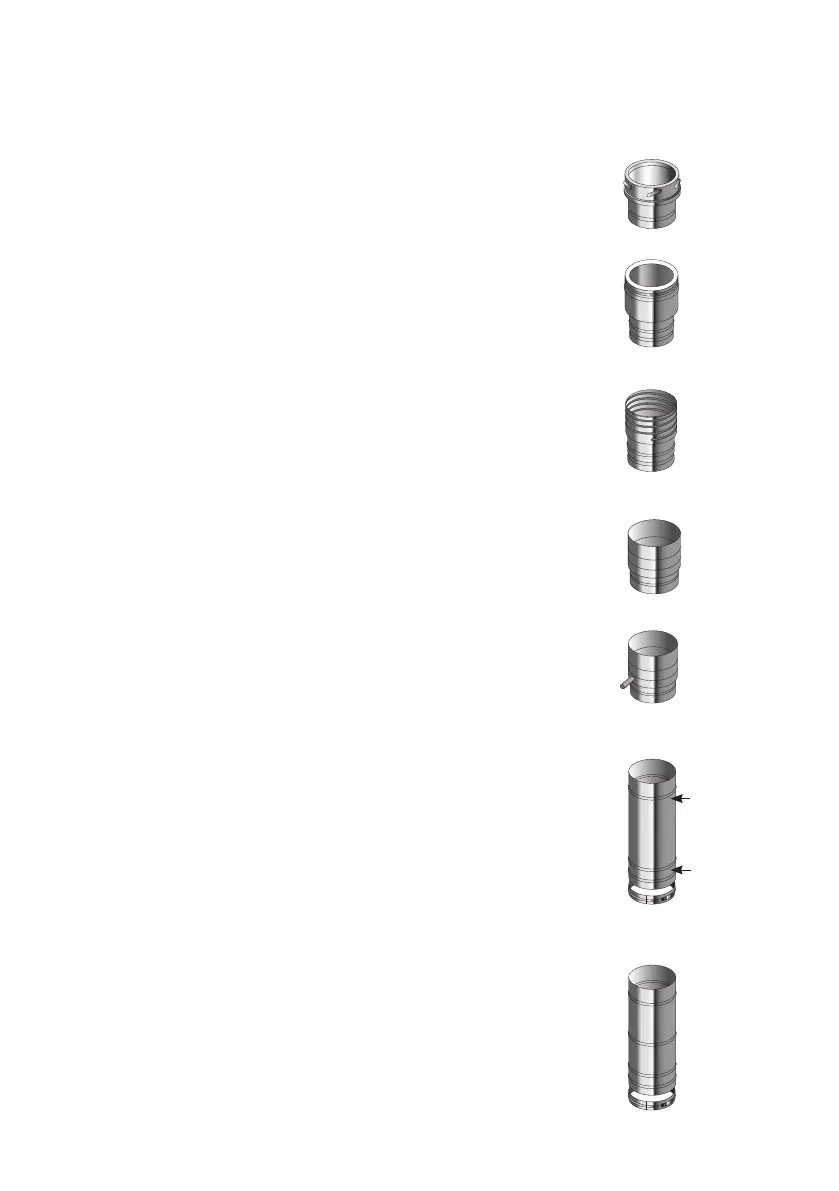

ADAPTOR PRIMA PLUS TO ICID PLUS
This component is used to convert from Prima Plus to the
ICID Plus System Chimney. The protruding liner of the adaptor
should be pushed down inside the female socket of the
connecting flue pipe, with the male collar pointing upwards.
ADAPTOR FROM PRIMA PLUS TO ICS
This component is used to convert from Prima Plus to the ICS
System Chimney. The protruding liner of the ICS should be
pushed down inside the female socket of the Prima Plus.
ADAPTOR FROM PRIMA PLUS TO TECNOFLEX PLUS
This component is used to convert from Prima Plus to
TecnoFlex Plus. The end of the TecnoFlex Plus should be
trimmed to allow the adaptor to be screwed in a clockwise
direction onto the TecnoFlex Plus. Care should be taken to
ensure that the TecnoFlex Plus liner is fully engaged into the
inner sleeve of the adaptor, thereby protecting the cut edges of
the TecnoFlex Plus.
INCREASER
This component is used to increase from one diameter to the
next diameter (e.g.) 125mm to 150mm.The component is fitted
in the same way as a standard pipe length.
VERTICAL / HORIZINATAL DRAIN
Connected to appliance connector to drain condensate from
the system. Can also be used in the horizontal at end of header
system or inclined run.
ADJUSTABLE PIPE
(Length 500mm with 80mm-400mm adjustment)
The standard adjustable pipe is installed by sliding the male
spigot a minimum of 100mm and a max of 400mm into the
preceding pipe. The locking band, which is provided with each
adjustable pipe is then fastened in place.
2 PIECE ADJUSTABLE PIPE
The standard adjustable pipe is installed by sliding the male
spigot a minimum of 100mm and a max of 400mm into the
preceding pipe. The locking band, which is provided with each
adjustable pipe is then fastened in place.
Max Adj.
400mm
100mm
Engagement
Bead
