Chimney Lining Components

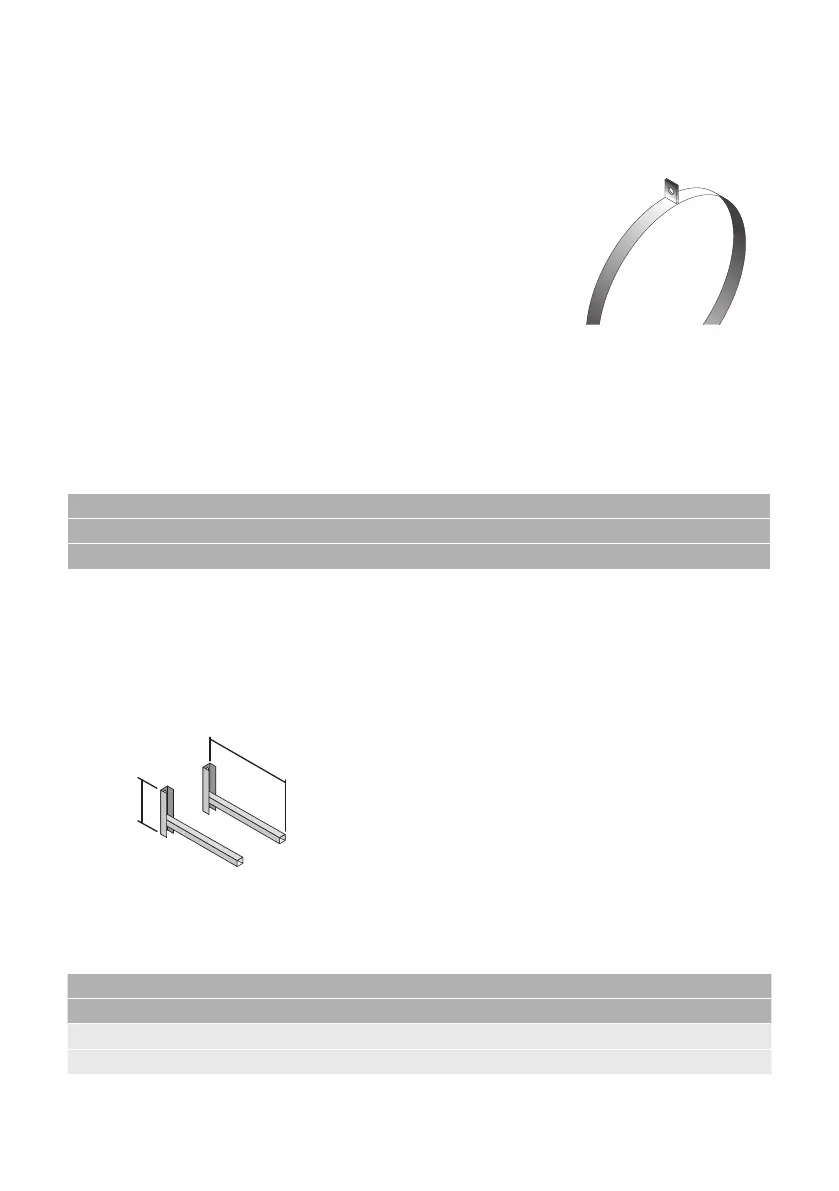

CANTILEVER SUPPORT
Once the position of the support has been established within the chimney stack, secure the
cantilever brackets to the wall using expansion bolts to ensure adequate attachment and
support.
CEILING HANGER
This accessory is designed to support horizontal runs of the
chimney from the roof or ceiling and offers adjustment from
130mm to 1115mm. Once the position of the ceiling support
has been determined, the section length of uni-rax channel
must be securely fixed to the roof or the ceiling using a method
of attachment to ensure adequate attachment and support.
All items are assembled as shown to attach the length of
studding to the channel. Attach the stud connector to the
length of studding and connect the eye bolt to the connector.
Position the split band around the chimney section and secure
to the eye bolt using the nut/bolt provided. Maximum support
spacing to be no more than 1.5 metres.
SAP Code 190920 190995 110118 110199 110392 112037 112279 112503 112876
Ext Ø 80 100 130 150 180 200 230 250 300
Int Ø 130 153 180 200 230 250 280 300 350
Type 325 475 570
Ø Range 125-150 125-200 125-200
A 325 475 570
B 242 242 330
A
B
Types 325, 475
