Schiedel Prima Plus - Max Offset Info

21
Max Offset Info
(In Same Plane)
Component Weights
min height before
1st offset 600mm

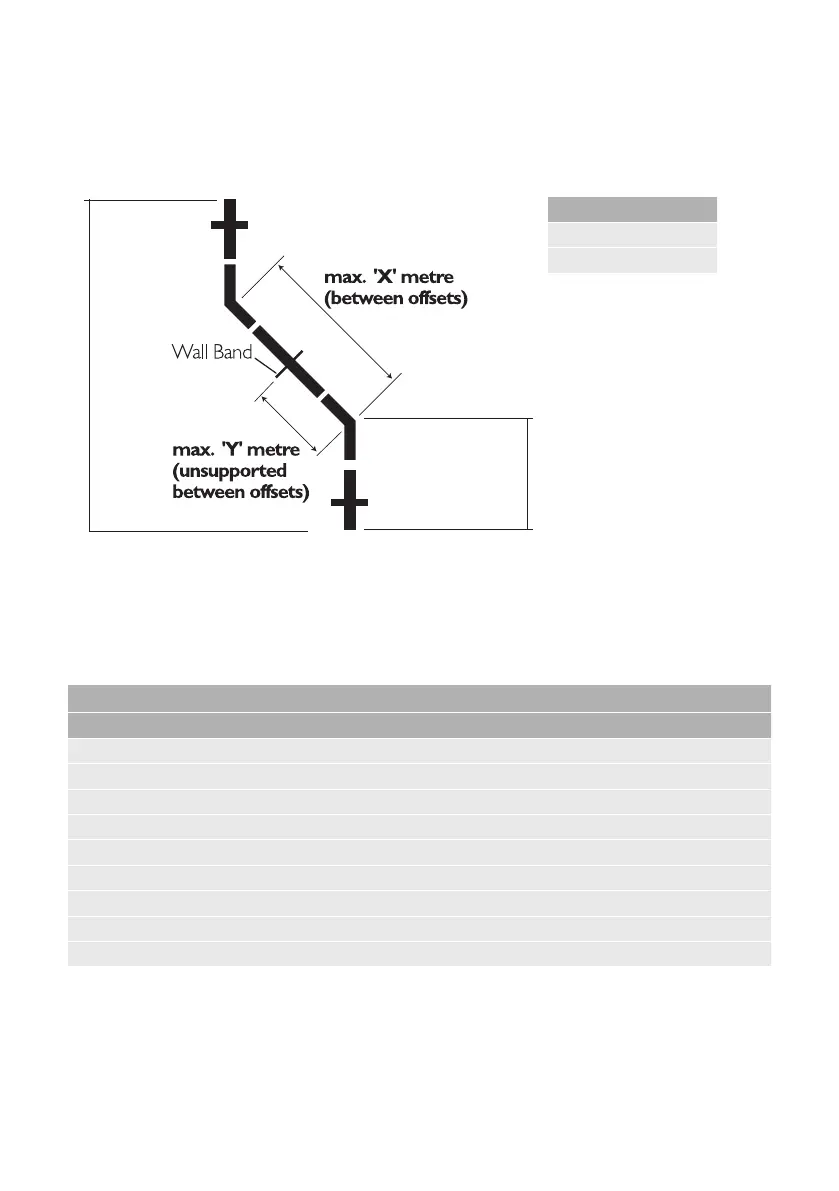

max length
1800mm
Int Ø
125-200
X (m) 1.5
Y (m) 1
Approximate Weights of Finished Goods(Kg)
Internal Diameter Length(mm) 1000 500 250
80 1.22 0.61 0.30
100 1.52 0.76 0.38
130 1.88 0.99 0.49
150 2.28 1.14 0.57
180 2.73 1.37 0.68
200 3.04 1.52 0.76
230 3.49 1.74 0.87
250 3.79 1.9 0.95
300 4.55 2.27 1.14
