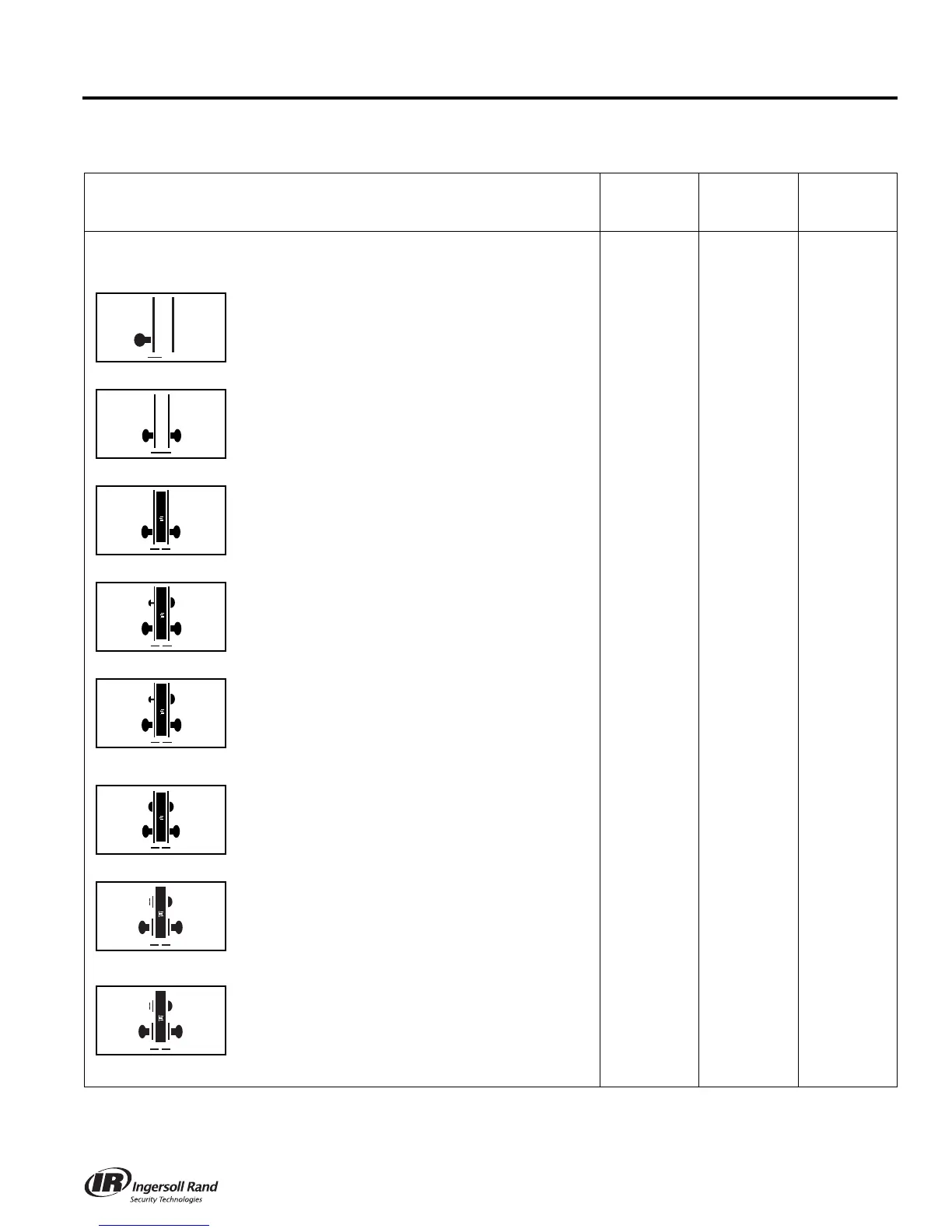

Lock Assembly Drawing Index
† Not sold separately as a part.

Available with Request to Exit feature. See page 114 for Request to Exit information.
Functions
ANSI A156.13, 1994 Series 1000
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Part Number
Non-Keyed Locks
SCHLAGE® ANSI
L0170 Single Dummy Trim
Knob/lever on one side is fixed by mounting bar.
15 — —
L0172 Double Dummy Trim
Knob/lever on both sides is fixed by mounting bar.
16 — —
L9010 F01 Passage Latch 
Latchbolt is always retracted by knob/lever from either side.
18 48 L283-131
L9040 F22 Bath/Bedroom Privacy Lock
Latchbolt is retracted by knob/lever from either side unless
outside is locked by inside turn piece. Turning inside knob/lever
or closing door unlocks outside knob/lever. To unlock from
outside, remove emergency button, insert emergency turn in
access hole and rotate.
19 49 L283-132
LV9040
Bath/Bedroom Privacy Lock with Vandlgard
®
Latchbolt is retracted by knob/lever from either side unless
outside is locked by inside turn piece. Turning inside knob/lever
or closing door unlocks outside knob/lever. To unlock from
outside, remove emergency button, insert emergency turn in
access hole and rotate. Vandlgard function allows exterior lever
to rotate freely down, while remaining securely locked.
19 50 L283-171†
L9040 x XL11-446 Privacy with Turns Both Sides
Latchbolt is retracted by knob/lever from either side unless
outside is locked by inside or outside turn piece. Turning inside
knob/lever or closing door unlocks outside knob/lever.
Specify per XL11-446.
20 49 L283-132
L9044 Privacy with Coin Turn Outside
Latchbolt is retracted by knob/lever from either side unless
outside is locked by inside turn piece or outside coin turn.
Operating inside knob/lever, closing door, rotating inside turn
piece or outside coin turn unlocks outside knob/lever. Available
in rose trim only. Specify per L283-056 for Torx screws.
(Previously XL11-868)
21 49 L283-132
LV9044
Privacy with Coin Turn Outside with Vandlgard
®
Latchbolt is retracted by knob/lever from either side unless
outside is locked by inside turn piece. Operating inside
knob/lever, closing door, rotating inside turn piece or outside
coin turn unlocks outside knob/lever. Available with rose trim
only. Vandlgard function allows exterior lever to rotate freely
down while remaining securely locked. Specify per L283-056 for
Torx screws.
21 50 L283-171†
