Chassis
Schlage • ND-Series service manual • 47

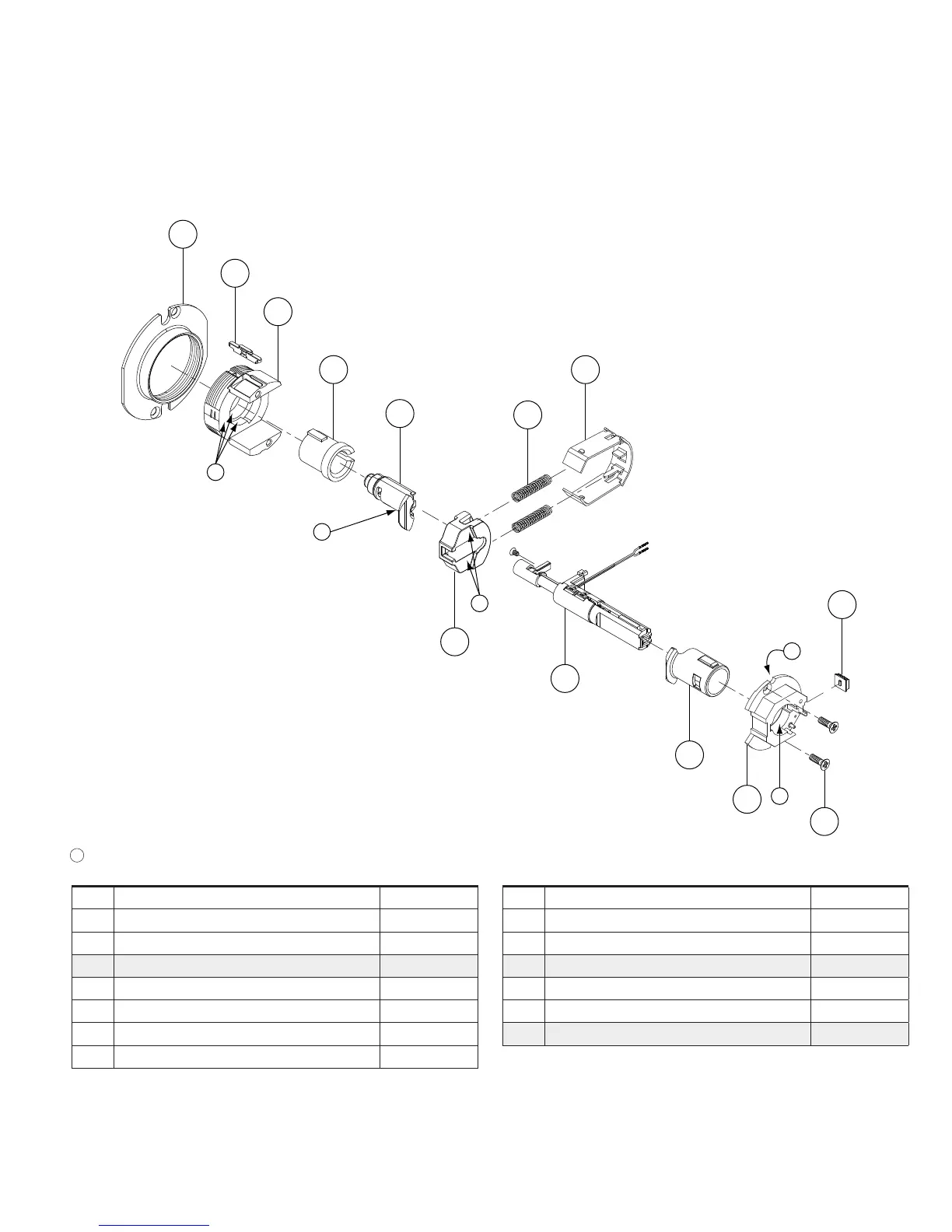

Storeroom lock with Vandlgard
®
— Electrically locked (fail safe) or
electrically unlocked (fail secure)
ND96EL or ND96EU
37
26
1
28
15
30
6
27
39
29
a
a
a
a
a
53
52
54
a
Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1 Slide spring C503-019
6 Chassis screw L583-454
15 Electrified keycam assembly N223-066
26 Outside electrified housing 24088551
27 Inside hub—electrified functions 24085078
28 Outside electrified spindle N523-019
29 Slide N523-149
No. Description Part number
30 Slide clip N523-025
37 Adjustment plate N523-054
39 Inside electrified spindle N523-177
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
54 Electrified motor assembly –Vandlgard N223-063**
* Not sold separately as a part.
** For electrified lock details, see Electrified locks on page 105.
Designates new parts or assemblies.
