Schlage ND75 - Storeroom lock with Vandlgard- electrically locked (fail safe) or electrically unlocked (fail secure)

48 • Schlage • ND-Series service manual
Chassis

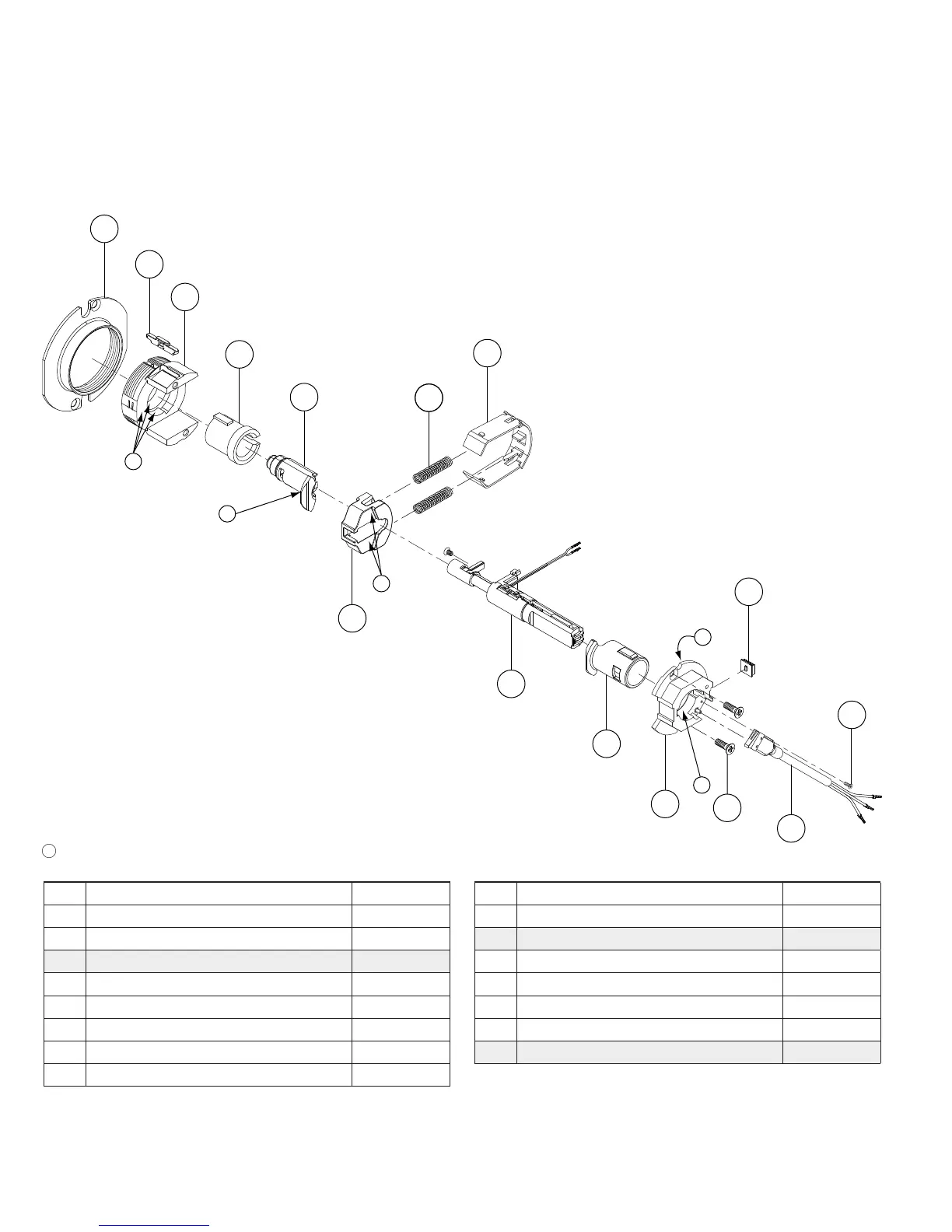

Storeroom lock with Vandlgard
®
— Electrically locked (fail safe) or
electrically unlocked (fail secure) with request-to-exit
ND96EL RX or ND96EU RX
27
48
49
53
a
a
37
26
1
28
15
30
39
29
a
a
a
52
54
6
a
Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1 Slide spring C503-019
6 Chassis screw L583-454
15 Electrified keycam assembly N223-066 
26 Outside electrified housing 24088551
27 Inside hub—electrified functions 24085078
28 Outside electrified spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
No. Description Part number
37 Adjustment plate N523-054
39 Inside electrified spindle N523-177 
48 RX harness N523-194**
49 RX harness screw N523-135
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
54 Electrified motor assembly –Vandlgard N223-063**
* Not sold separately as a part.
** For RX details, see “Request-to-exit feature”. For electrified lock details, see Electrified locks on page 105.
 Designates new parts or assemblies.
