Schlage ND75 - Page 63

64 • Schlage • ND-Series service manual
Trim assemblies
Hospital privacy lock
ND44
A
B
C
P
E
J
H
D
K
N
Q
M
C
AA
Y
R
V
GG

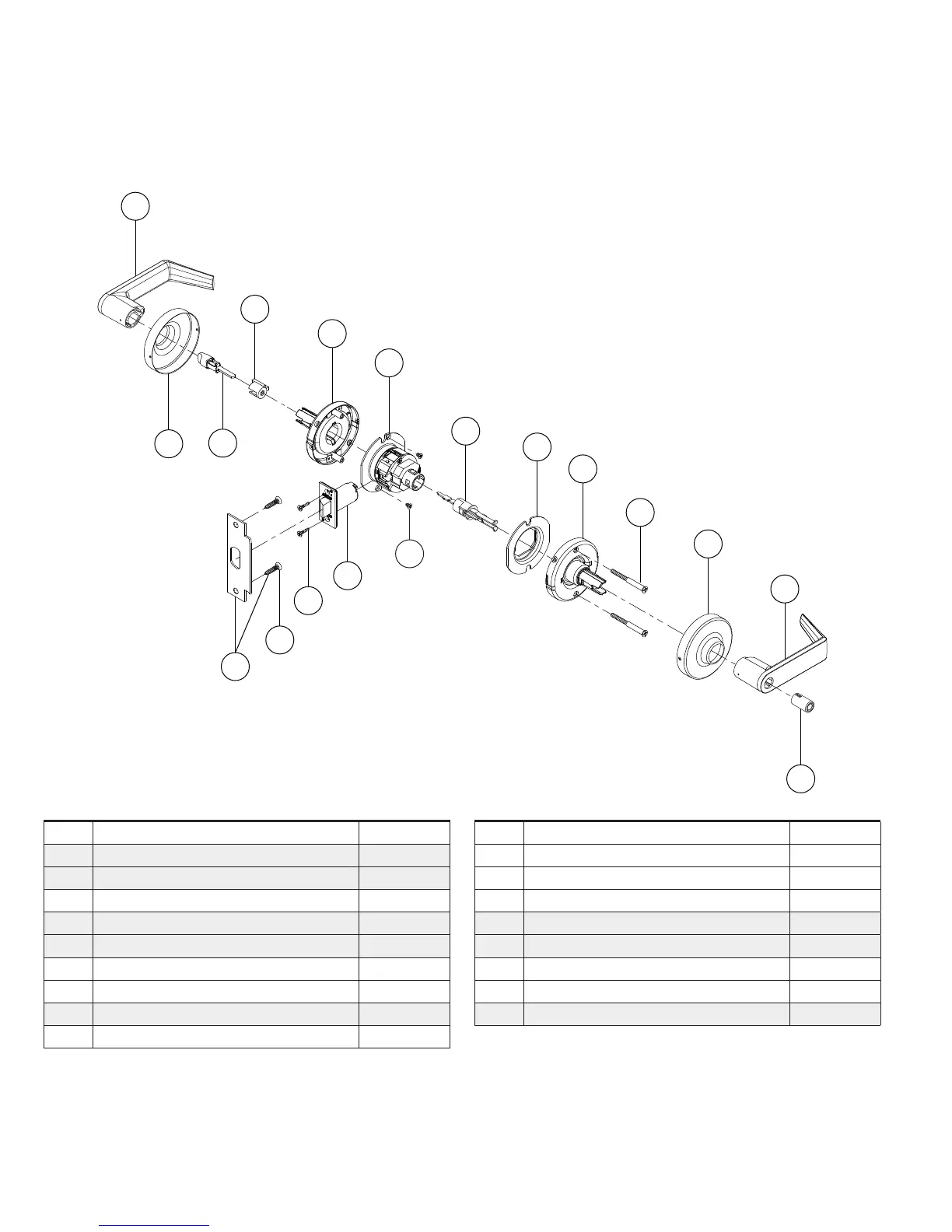

Letter Description Part number
A Outside lever—open (cylinder) 03-231 
B Inside lever—open (button) 03-233 
C Rose 03-042
D Outside spring cage assembly—standard N523-218 
E Inside spring cage assembly—standard N523-221 
H Chassis 24088304*
J Anti-rotation plate N523-055
K Springlatch 13-248 
M Strike assembly 10-025
Letter Description Part number
N Latch screws C603-897
P Mounting screws N523-021
Q Strike screws C603-256
R Plunger assembly—push button N123-086 
V Push button N523-209 
Y Emergency cylinder N523-020
AA Emergency turn button and plunger N123-035
GG Adjustment plate screws N523-240 
* Chassis part number is for reference only.
 Designates new parts or assemblies.
