9/12
Fix-EZ™ Installation Manual
MI-018CA
072216
© Schletter Canada Inc.
• 3181 Devon Drive • Windsor, Ontario N8X 4L3 • Tel: (519) 946 – 3800 • Fax: (519) 946 – 3805
E-mail: mail@schletter.ca • www.schletter.ca

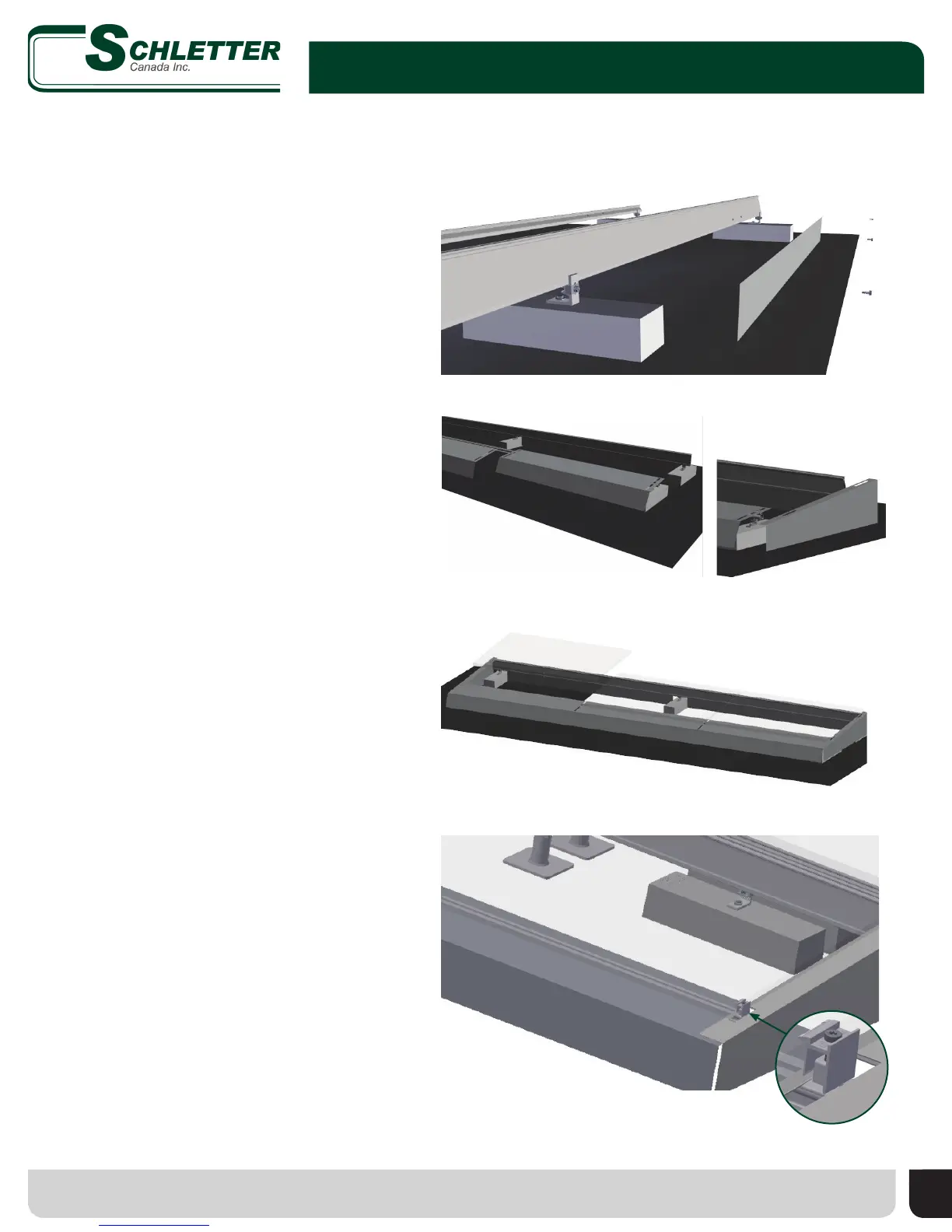

Attach rear barrier on rail with self-drilling screws
Place front barrier on top of front rail, repeat until end of row; then place side skirt
on both ends of array (barrier pieces will overlap)
Position modules
• Provides for a Class A re rating when
used with Type I or Type II modules.
• IMPORTANT! Only available in system
designed with one row of module in
landscape orientation.
• Required in systems installed on roofs
with slopes less than 9.5 degrees (not for
use on roofs with slopes greater than
9.5 degrees).
• Maximum opening between re barrier
and roof deck is one inch.
• Ensure correct dimension of the side
alignment of module and rail.
• Only required in perimeter of array.
• Assembly is to be mounted over a re
resistant roof covering rated for
the application.
Secure all connections with module clamps
1. Fire Barrier
Fire Barrier
