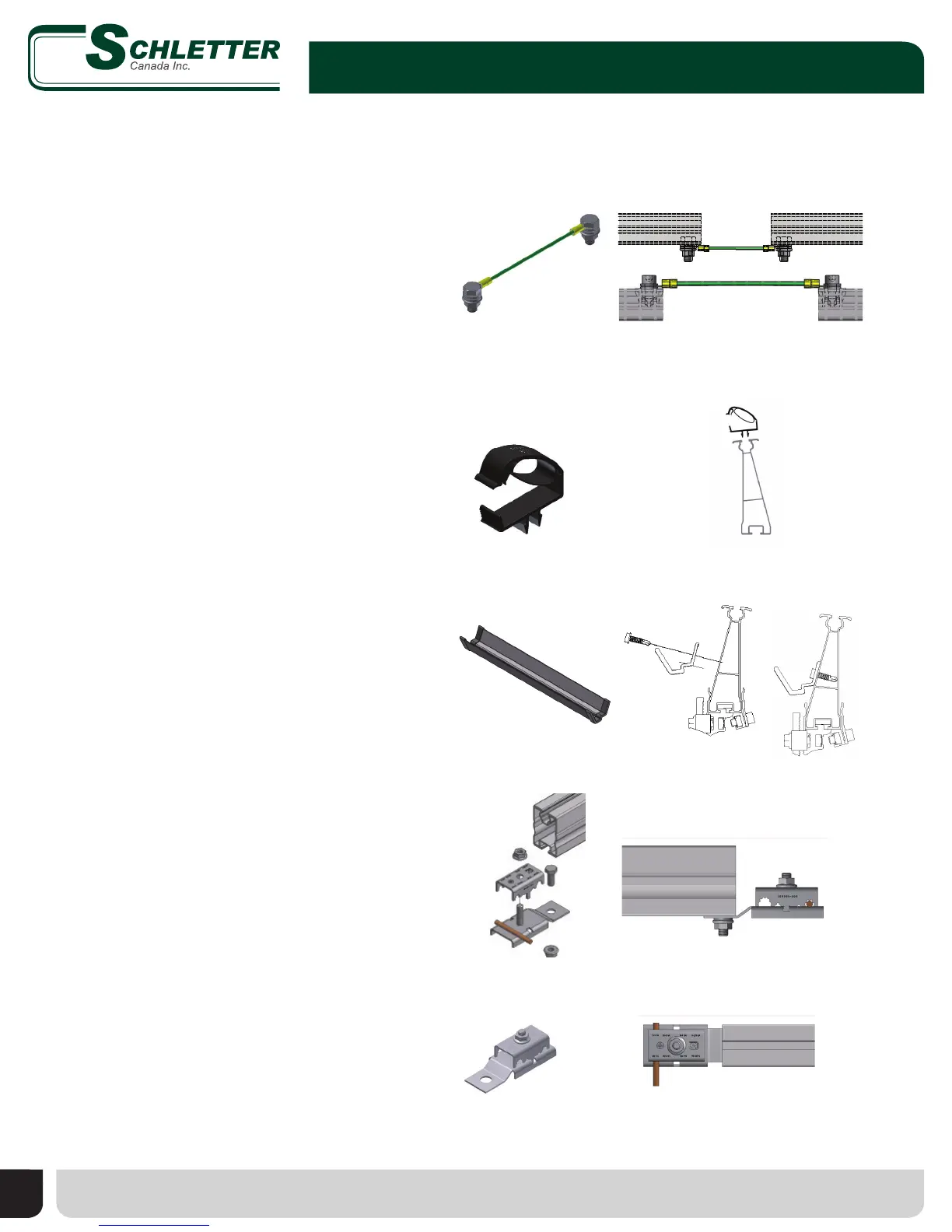

Optional Accessories
1. Bonding Jumper
• Electrically bonds adjacent systems
forming a continuous ground path.
• Connects directly to FixZ rail.
• Available in 6-inch to 48-inch lengths.
• Used for expansion joints or other breaks
in racking system.
2. Cable Management
• If cable management was ordered with
the system, install before modules are
in place.
• To install ProKlip-Multi 8, gently press into
receiving channel on top of rear or
front rail.
• ProKlips are positioned in the space
between FixZ rail and back of module,
which is created by module frame.
• If using cable duct, secure trays on outer
portion of rear rails for convenient placing
of cables.
ProKlip-Multi 8
(129065-008)
Attach ProKlip-Multi 8 to M8 top channel,
typically one per module
Attach cable duct to rear module rail using self-
drilling screws spaced two feet apart
Bonding jumper Bonding jumper connects directly to the top
channel of purlin using M8 hardware and
bottom channel using M10 hardware
SIDE VIEW
SCALE 1 : 1
END VIEW
SCALE 1 : 1
ISOMETRIC VIEW
SCALE 1:2
PARTS LIST
MASSDESCRIPTIONPART NUMBERQTYITEM
0.027 kg
Screw, HexHead, M10x25, DIN933, A2
943610-025 21
0.004 kgWasher, M10, DIN 125, A2943921-01042
0.015 kgNut, Flange, Serrated, M10, DIN 6923, A4943912-01023
0.059 kgGrounding Jumper, 36 in, M10, Assy 14
1
1
2
2
3
3
4
4
A A
B B
C C
D D
MATERIAL:
DATEBY
SHEET: OF
TOLERANCES:
REVISION
LET
WEIGHT:
AREA:
PART NUMBER:
CROWN:
TITLE / PROJECT / CUSTOMER:
RT-PART # :
SIZE:
SCALE: AS SHOWN
SUBCONTRACTOR:
ENG APPROVAL DATE:
ASSEMBLY NUMBER
CUSTOMER:
MFG APPROVAL DATE:
CREATION DATE:
CHECKED DATE:
DRAWN BY:
APPROVED:
STATUS:
CHECKED:
MFG:
DIN 2768
david.hulbert
Released
7/2/2012
Grounding Assy, M10,Bottom Channel,36in.
C
1731.197 cm^2
OLD PART # :
WT/FT:
1
2
2
3
4
SIDE VIEW
SCALE 1 : 1
END VIEW
SCALE 1 : 1
ISOMETRIC VIEW
SCALE 1:2
PARTS LIST
MASSDESCRIPTIONPART NUMBERQTYITEM
0.027 kg
Screw, HexHead, M10x25, DIN933, A2
943610-025 21
0.004 kgWasher, M10, DIN 125, A2943921-01042
0.015 kgNut, Flange, Serrated, M10, DIN 6923, A4943912-01023
0.059 kgGrounding Jumper, 36 in, M10, Assy 14
1
1
2
2
3
3
4
4
A A
B B
C C
D D
MATERIAL:
DATEBY
SHEET: OF
TOLERANCES:
REVISION
LET
WEIGHT:
AREA:
PART NUMBER:
CROWN:
TITLE / PROJECT / CUSTOMER:
RT-PART # :
SIZE:
SCALE: AS SHOWN
SUBCONTRACTOR:
ENG APPROVAL DATE:
ASSEMBLY NUMBER
CUSTOMER:
MFG APPROVAL DATE:
CREATION DATE:
CHECKED DATE:
DRAWN BY:
APPROVED:
STATUS:
CHECKED:
MFG:
DIN 2768
david.hulbert
Released
7/2/2012
Grounding Assy, M10,Bottom Channel,36in.
C
1731.197 cm^2
OLD PART # :
WT/FT:
1
2
2
3
4
Cable duct
(128014-000)
• Accommodates stranded or solid
copper wire (2 gauge to 14 gauge).
• Must use bare copper wire to connect to
the grounding wire; remove at least two
inches of insulation to expose
copper wire.
• Connects to bottom M10 rail channel.
Loosen or remove top portion of grounding lug and insert grounding wire
into appropriate groove
Grounding wire must extend through
grounding lug by at least 1/4 inch
Grounding lug
(Part #135003-003)
3. Overcurrent Protection Device (grounding)
