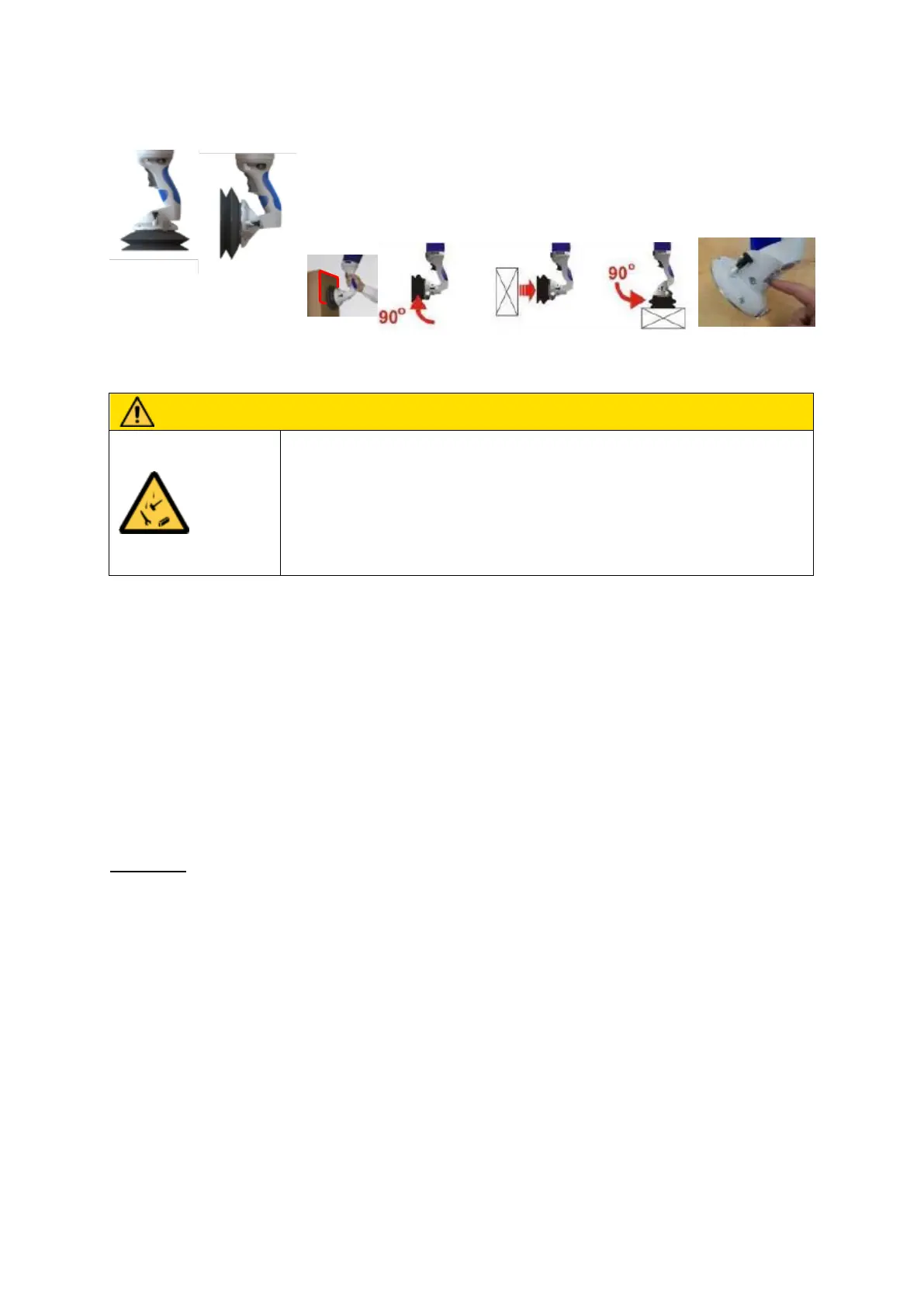

6.8.3 Picking up vertically and depositing horizontally
1. The 90° swiveling unit is designed for handling loads, picking up
vertically and depositing horizontally.
2. Pick up the workpiece in the center or at the top so that the load
swivels slowly to a horizontal position.
CAUTION
Risk of injury when swiveling the rotation unit
When the rotation unit is swiveled by 90°, there is a risk of fingers
becoming pinched in the shaft of the joint.
►
Always keep one hand on the operator handle.
►
Use the other hand to support the swiveling process (position your
hand on the side of the workpiece).
6.9 Continuous rotatability
The vacuum tube lifter JUMBOFLEX can be rotated continuously on the rotation unit (suspension point).
Workpieces that have been picked up can also be rotated continuously below the operating element or
locked in position at 90° intervals.
6.10 Parking the vacuum tube lifter Jumbo
It is possible to park the vacuum tube lifter JUMBO for a brief period of time.
Procedure:
1. Stop the vacuum blower or ejector.
2. Leave the vacuum tube lifter JUMBO hanging on the crane system or position it in a holding device.
