Caution
Do not use or load the cross strut as a lifting or carrying aid!
This can be damaged and thus impair the function of the seat-bench
combination.

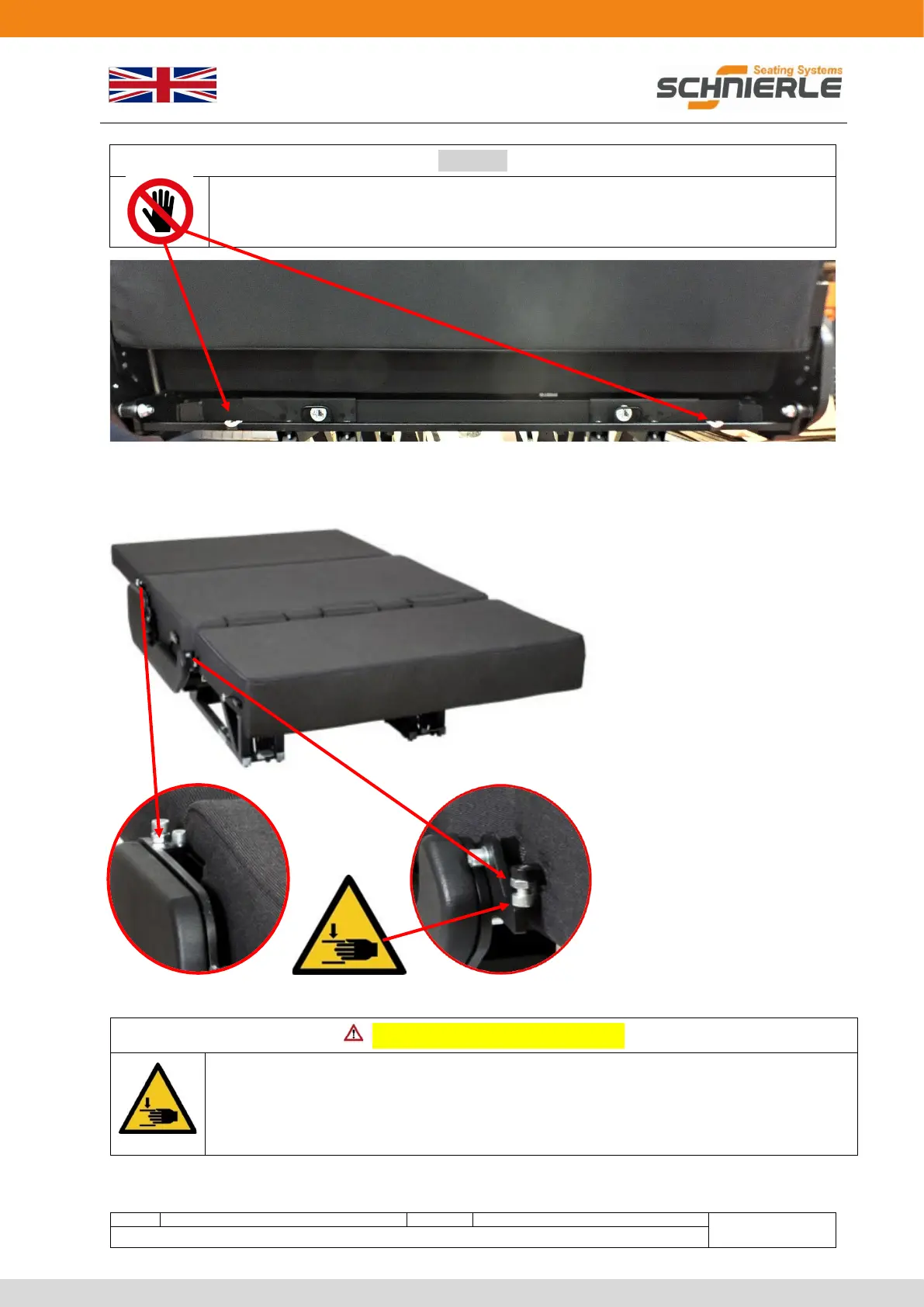

3.5. Adjustment options
There are screws with nuts on
both sides of the seat-bench
combination.
The desired inclination of the
additional lounger can be
adjusted with the adjusting
screw A left & right.
The desired inclination of the
seat frame can be adjusted at
adjusting screw B left & right.
Warning Danger of crushing
Crushing of fingers possible due to carelessness
Only work with full concentration on the adjusting screws.
Only operate the adjusting screws when crushing of other persons is
impossible.
