KL 1500 compact – Instructions for Use
8/12
Inserting filters into the filter slide
Please take care to ensure that the filter slide has colled down before fitting the filter insert into it. It
carries the warning symbol to remind you.
Pull out the filter slide (5) as far as the 2nd latched position and insert the required filter. The light
source is fully operational in this position.
When the filter slide is pushed in up to the end stop, the filter is located in the optical beam path.
If you want to operate the light source without a filter for a short time, pull out the slide only up to
the first latched position. In this position the filter is still in the light source but no longer in the path
of the beam.

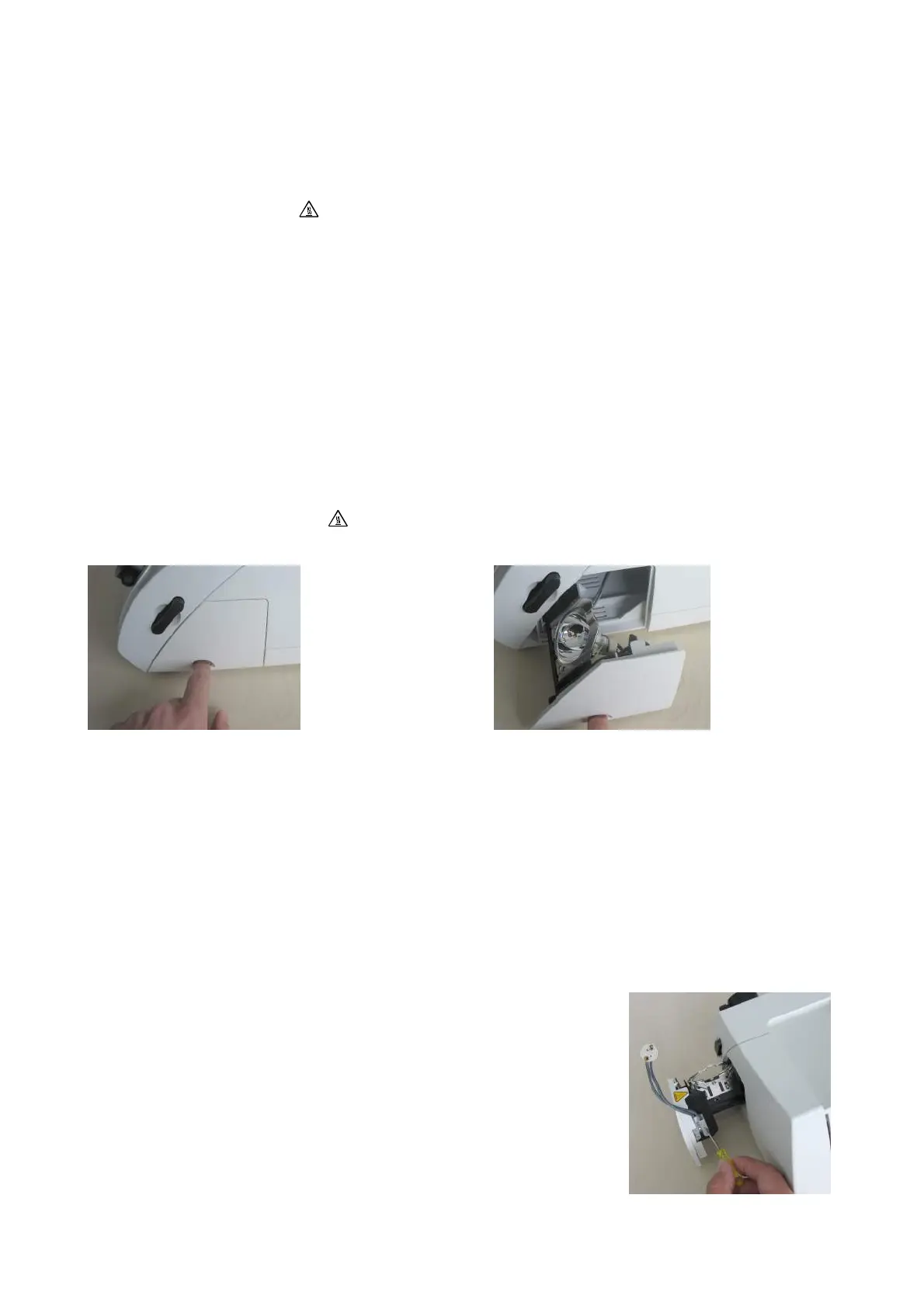

3. Replacing the lamp
Please ensure that the lamp and lampholder have cooled down before replacement. The
corresponding warning symbol is attached to remind you.
First of all switch off the light source and pull out the mains plug.
Open the lamp compartment (7) by pulling out the indentation provided as far as the stop. Take
out the lamp, including the socket, upwards out of the holder. Carefully remove the faulty lamp
from the socket and insert a new lamp (use light bulb specified in part list). Then press the lamp
downwards into the holder as far as the stop.
Push the lamp compartment in until it latches (audible locking sound).
Put in the mains plug and switch the light source on.
Replacement of the lamp socket:
This high-quality lamp socket has a guarateed service life of
20,000 operating hours or, alternatively, 20 lamp changes.
To replace the lamp socket, first carefully remove the lamp, as
described above. With the aid of a screwdriver loosen both
upper fixing screws on the clip and remove the complete
component. Insert both cable ends of the new socket (for
replacement part number see Point 4.6) into the corresponding
openings on the clip and tighten the screws again (make sure
the attachment is secure). Reinsert the lamp and press into the
mounting, as described above.
