Assembly and settings
02.00 | MMS 22-PI1-EX/MMSK 22-PI1-EX | Assembly and Operating Manual | en | 1566685 9
NOTE
l
Do not use the sensor as a safety component.
l
Do not pull on the cable of the sensor.
l
Secure the cable and connection plug so that they are not
taught and cannot move during operation.
l
Do not exceed the permitted bending radius of the cable.
l
Do not allow the sensor to come into contact with hard
objects and chemicals (e.g., nitric acid, chromic acid and
sulfuric acid).
The sensor is an electronic component that can be sensitive to
high-frequency interference or electromagnetic fields.
l
Check whether there is sufficient distance between the sensor
and sources of interference and their supply cables.

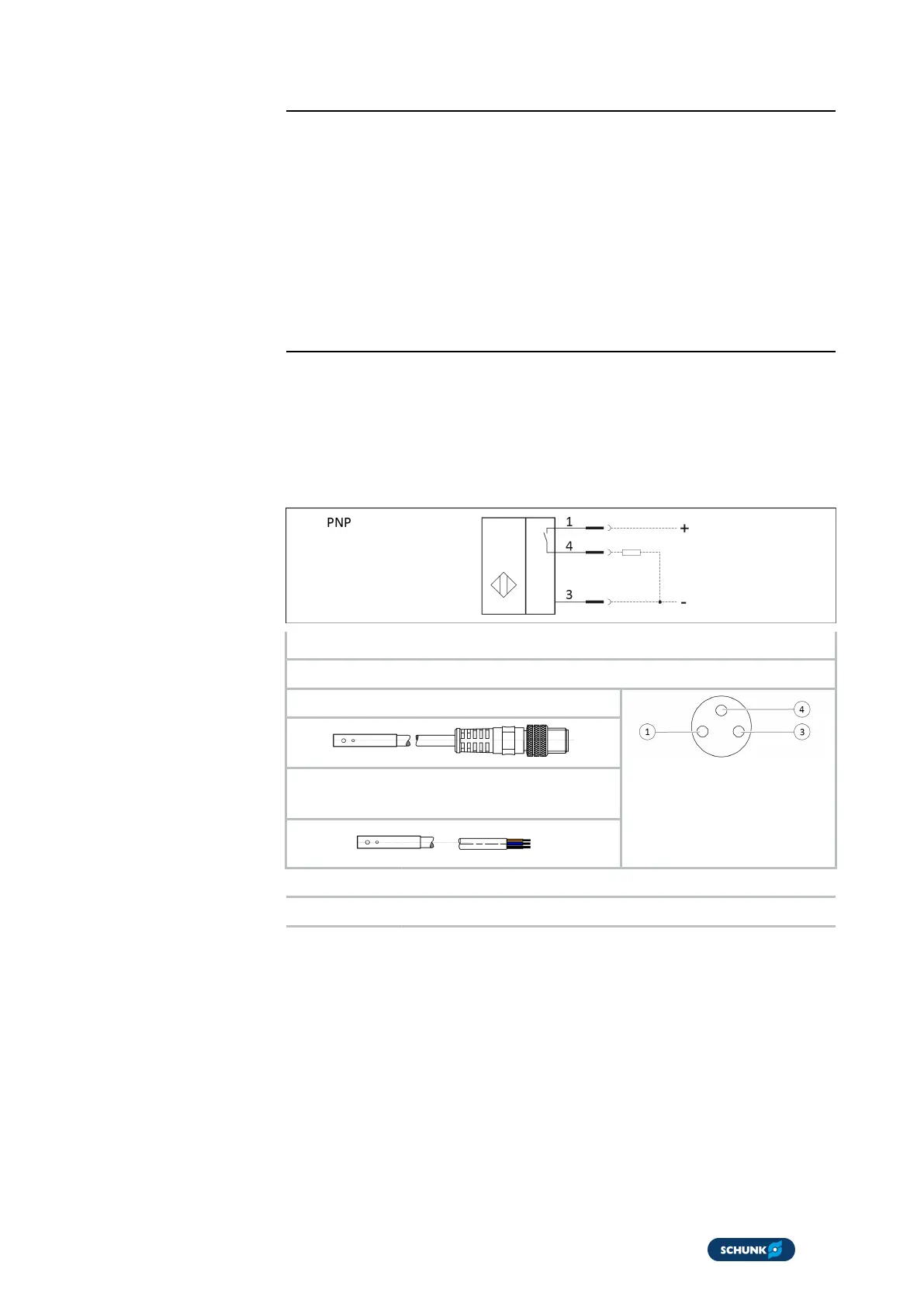

4.3 Electrical connection
Type of switching : PNP
Switching function: closer
Variant MMS 22-PI1 ... EX: ConnectorM8
VariantMMSK 22-PI1 ... EX: 2 m cable,
open wire strand
1 Brown Supply voltage 4 Black Output
3 Blue GND
