INSTALLATION INSTRUCTIONS

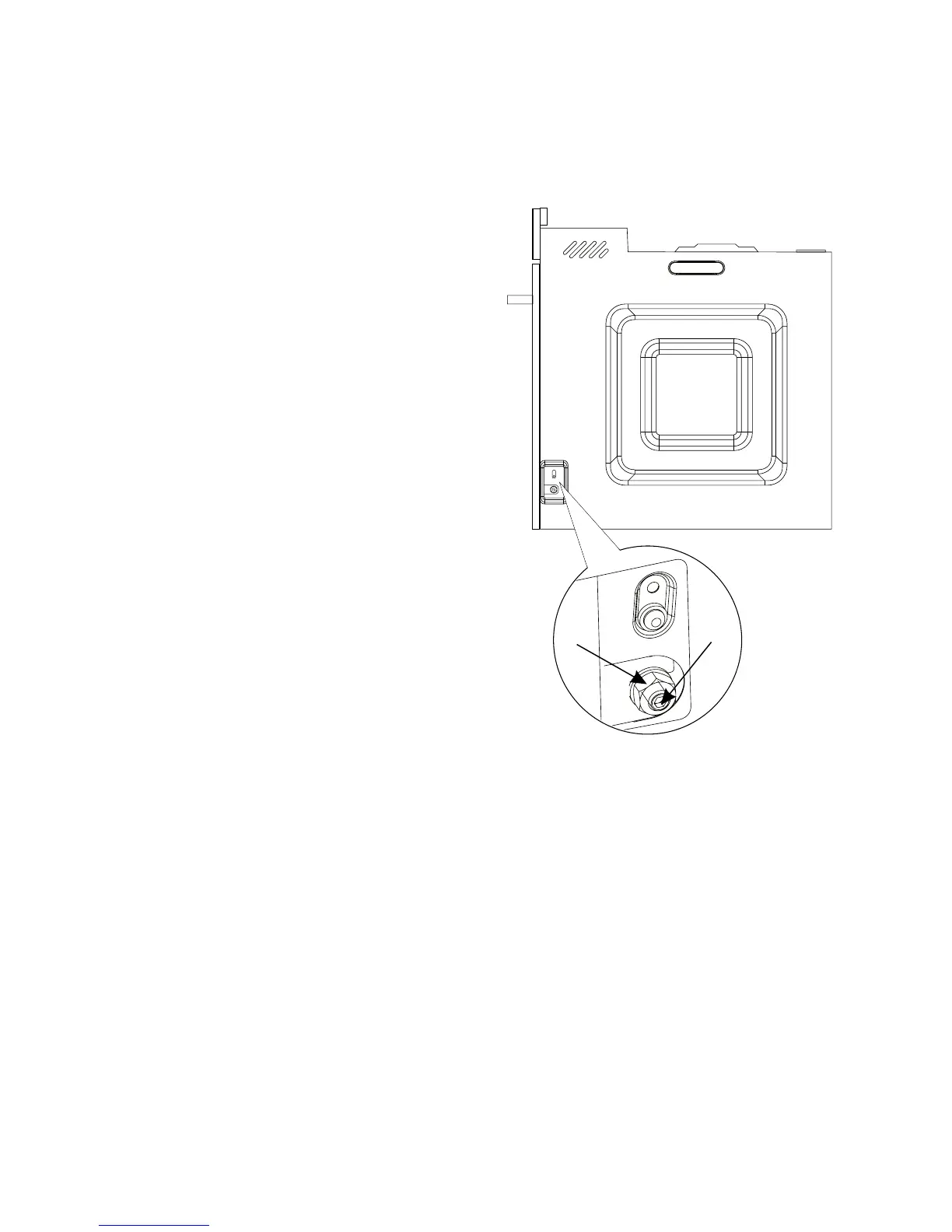

ADJUSTING THE POSITION OF THE OVEN
DOOR
Should the oven door be out of alignment, the
adjustment mechanism allows you to change the
height of the right side of the oven door to level
and align it with the control panel.
Adjustment method:
• Loosen the nut [1] with size 13 open-end spanner.
• Use size 4 Allen key to rotate adjustment spindle
[2] within 180° range to obtain the correct door
position. The door position will be adjusted in
the ±1.5 mm range.
• Tighten the lock nut [1] while holding the
adjustment spindle [2] in position using the
Allen key.
1
2
...................................................................................................................................................................................
...................................................................................................................................................................................
