INSTALLATION INSTRUCTIONS
ELECTRICAL CONNECTION
Warning: This appliance MUST be earthed.
persons.
The power supply must be accessible to allow
disconnection of the appliance in the installed
position.
means for all pole disconnection with at least 3mm
distance between contacts, must be incorporated
rules.

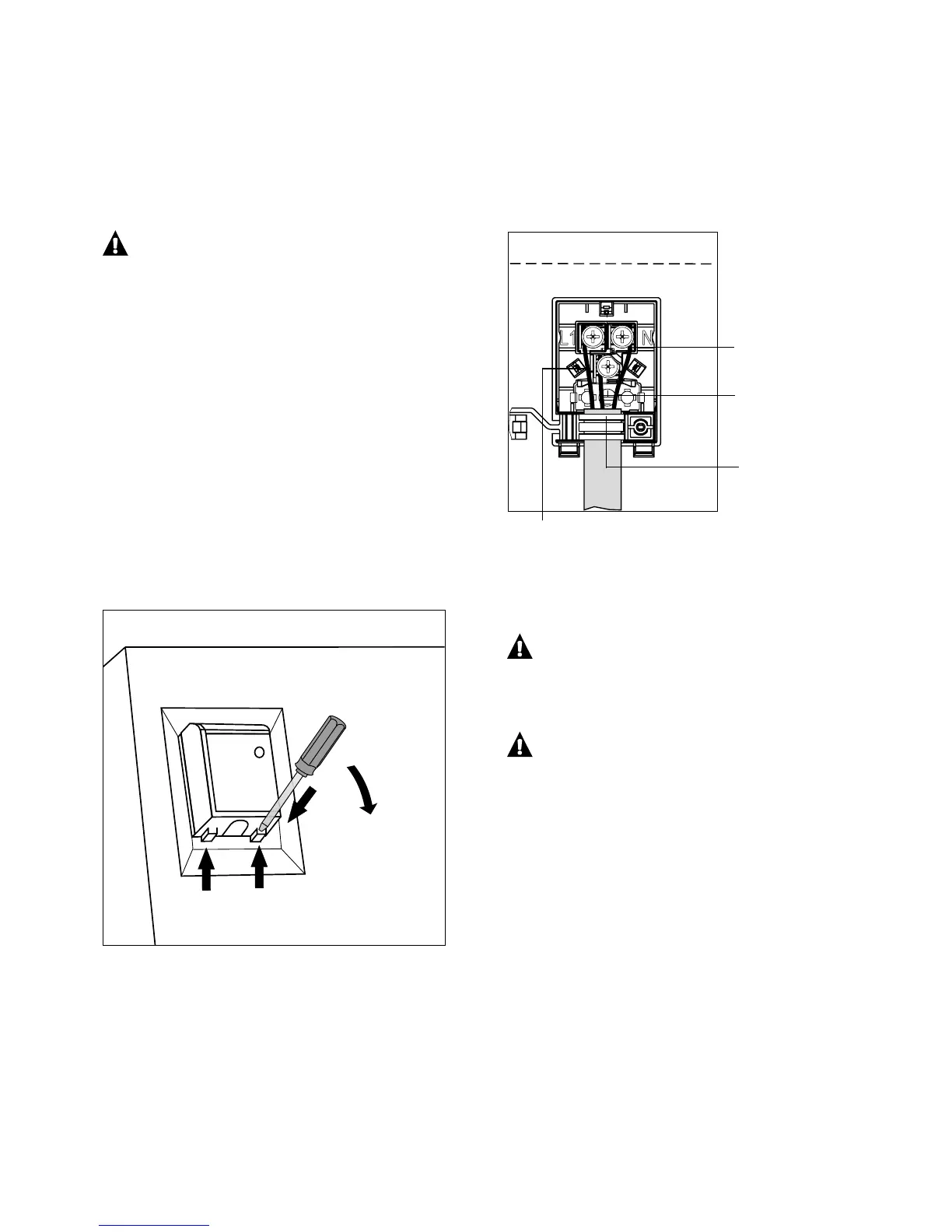

• Access to the electrical terminal is gained by
opening the terminal block cover at the rear of
• Once connection is made, close the terminal
box, ensuring that the cover is engaged on the
locking tabs.
2
1
ELECTRICAL TERMINAL BLOCK
230V 1N~
Live
or sleeving)
Cable clamp
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
WARNING
Ensure the electric cables do not pass near or come
into contact with surfaces reaching a temperature
above 75 °C.
ATTENTION
Disconnect the electric power supply before
performing technical assistance or maintenance
on the product.
In case of replacement of the electric cable, ensure
Australian/ NZ Standards.
Type HO5VV-F 3G1.5
...................................................................................................................................................................................
...................................................................................................................................................................................
