Schweitzer Engineering Laboratories, Inc. SEL-487V Data Sheet
23
Figure 22 5U Connectorized With INT3 and INT8 Interface Boards and Ethernet Option
Relay Dimensions

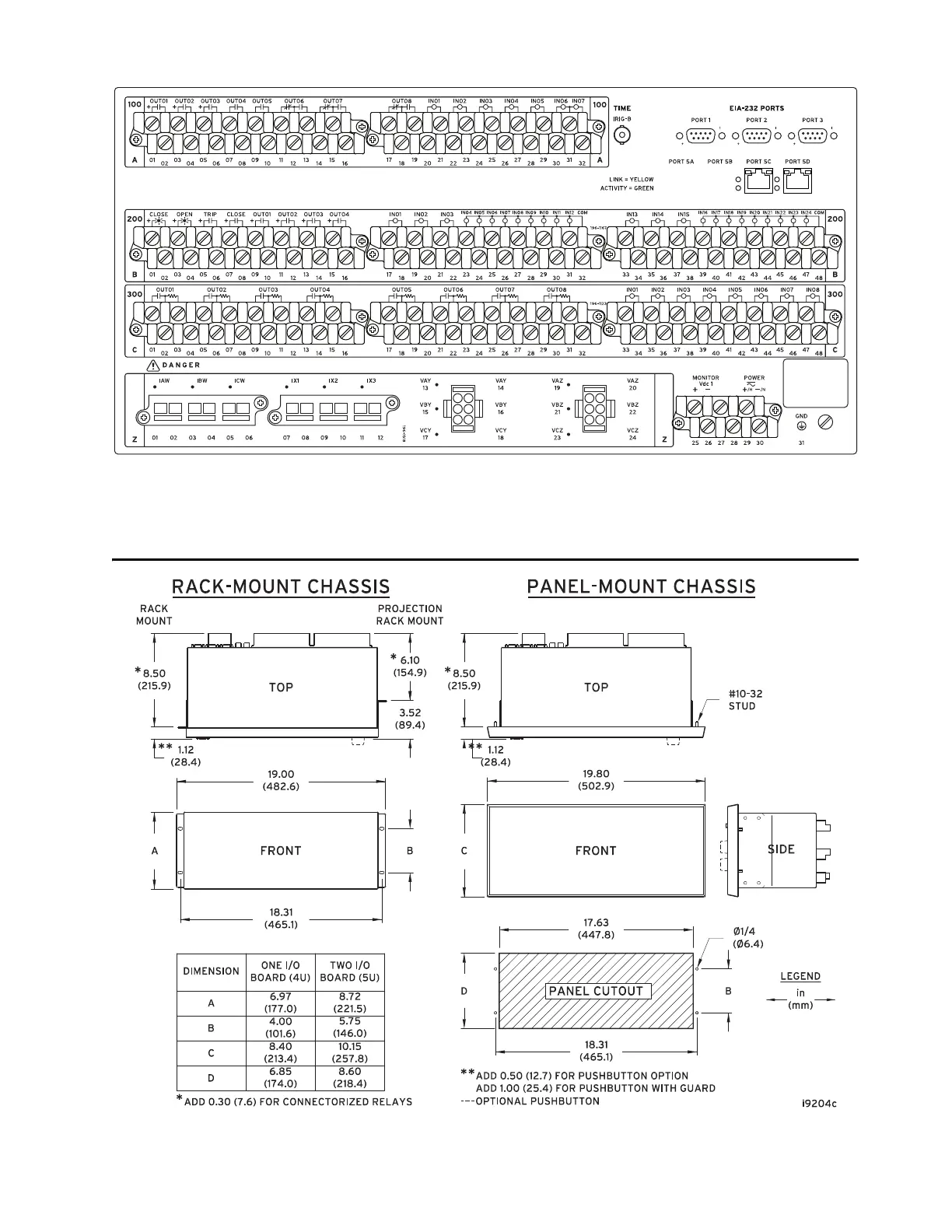

Figure 23 SEL-487V Dimensions for Rack- and Panel-Mount Models (Horizontal Mounting Shown; Dimensions Also
Apply to Vertical Mounting)
5U Connectorized, With INT3 and INT8 Interface Boards and Ethernet Option
