33

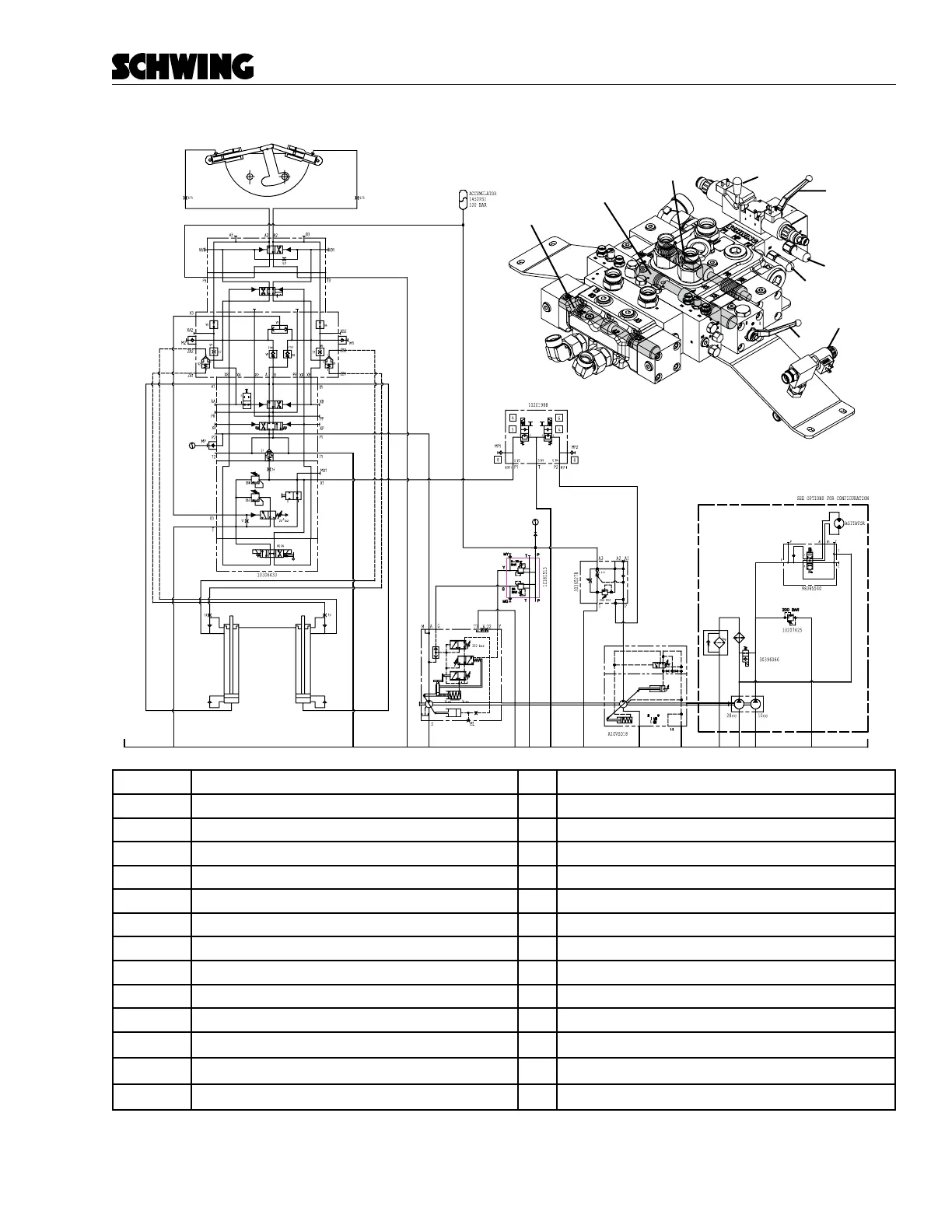

Overview
SP 500 / 750-15 / 750-18 / 1000 / 1250 Operation Manual
1 Hydraulic oil reservoir 15 E-Stop Manifold
2 Main hydraulic pump 16 Stroke Limiter
3 Main pressure relief valve 17 Agitator Dump Valve
4 Directional control valve S-1 18 Accumulator safety relief valve
5 Rock Valve slewing cylinder 19 Agitator Relief Valve
6 Directional control valve S-3 20 Accumulator hydraulic pump
7 Directional control valve S-2 21 Accumulator Gauge
8A/8B Di󰀨erential hydraulic cylinder 22 Agitator Circuit
9A/9B Switching valves 23 NG 10 valve for forward/reverse
10 Forward/Reverse Valve 24 Soft Switch relief valve
11 1/4” Turn - Shuto󰀨 Valve 25 Soft Switch shuto󰀨 handle
12 Hydraulic oil lter with bypass valve 26 Main relief poppet valve
13 Accumulator unloading valve 27 Soft Switch valve
14 Accumulator 28 Concrete Pump Pressure Gauge
20
2
1
14
15
16
17
17
19
13
21
6
6
4
7
5
7
4
26
27
25
25
22
23
24
28
24
3
3
8A
9A
10
9B
8B
11
11
18
12
