Schwinn 810 - Parts

10

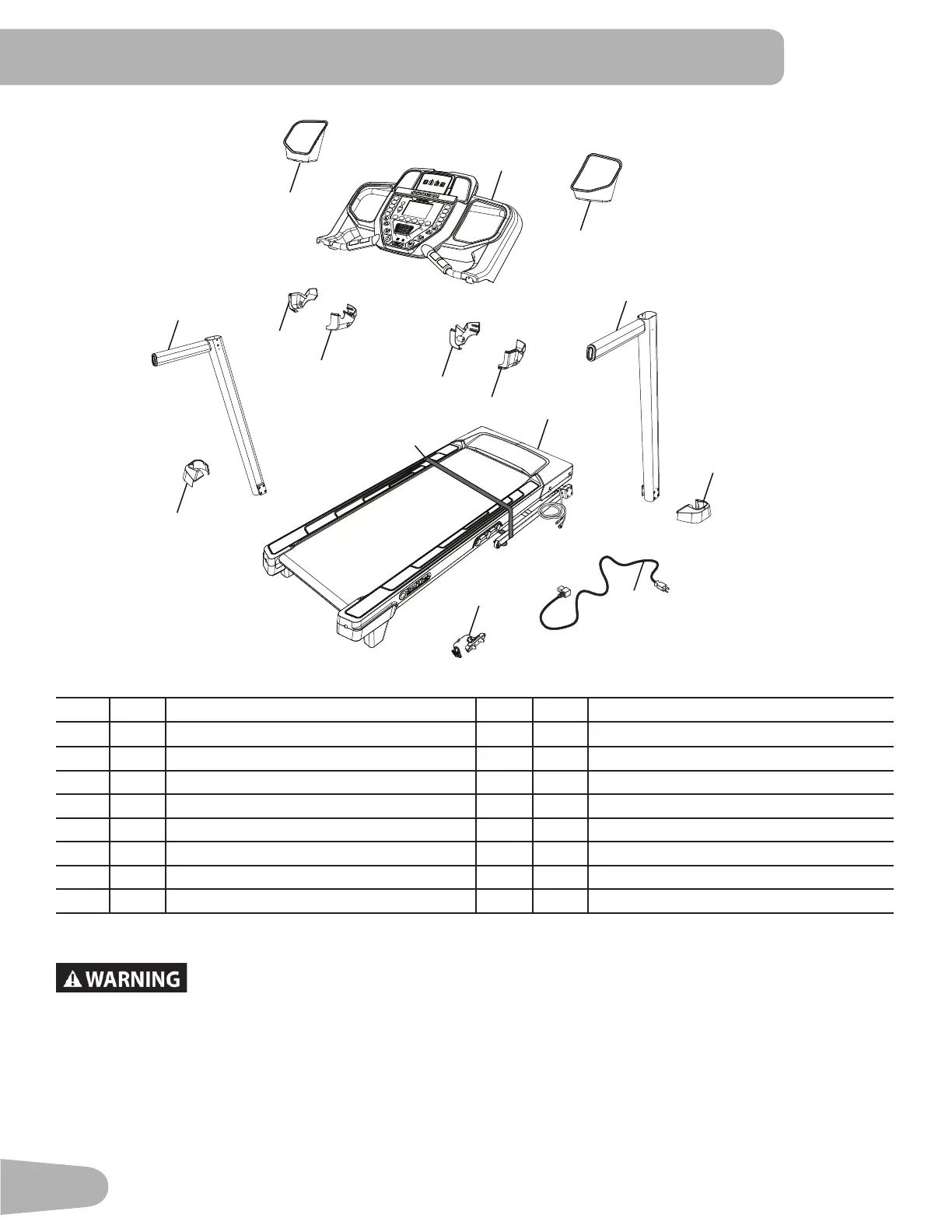

PARTS
Item Qty Description Item Qty Description
1 1 Tray, Left 9 1 Handlebar Shroud, Left Inner (L-R)
2 1 Console Assembly 10 1 Handlebar Shroud, Left Outer (L-L)
3 1 Tray, Right 11 1 Upright, Left
4 1 Upright, Right 12 1 Base Shroud, Left
5 1 Base Shroud, Right 13 1 Safety Key
6 1 Base Assembly ( * ) 14 1 Power Cord
7 1 Handlebar Shroud, Right Outer (R-R) 15 1 Audio Cable (not shown)
8 1 Handlebar Shroud, Right Inner (R-L)
DO NOT CUT the Shipping Strap on the Base Assembly until it has been placed face up as
shown in the appropriate work space ( * ).
11
4
6
12
5
2
10
8
7
9
3
1
14
13
*
