Schwinn 810 - Connect Cables and Attach Console

15
D
C
E
C
E
B
X2
X2
6mm
6mm
2
*
*

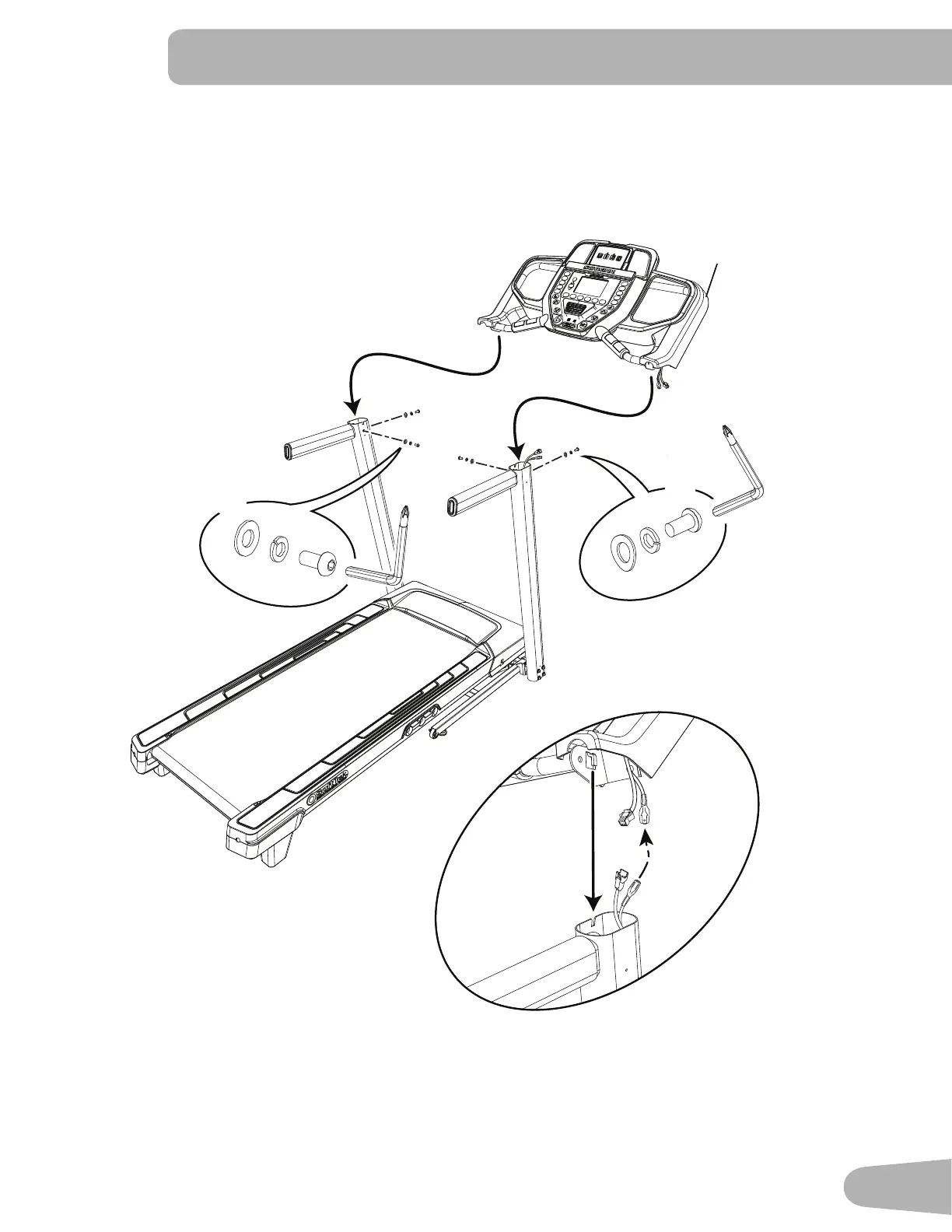

4. Connect the Cables and Attach the Console to Frame Assembly
Note: Do not crimp the Cables. Be sure the hooks on the Console are set into the notches of the Uprights. *Install
the front hardware first.
