Schwinn 810 - Page 42

42

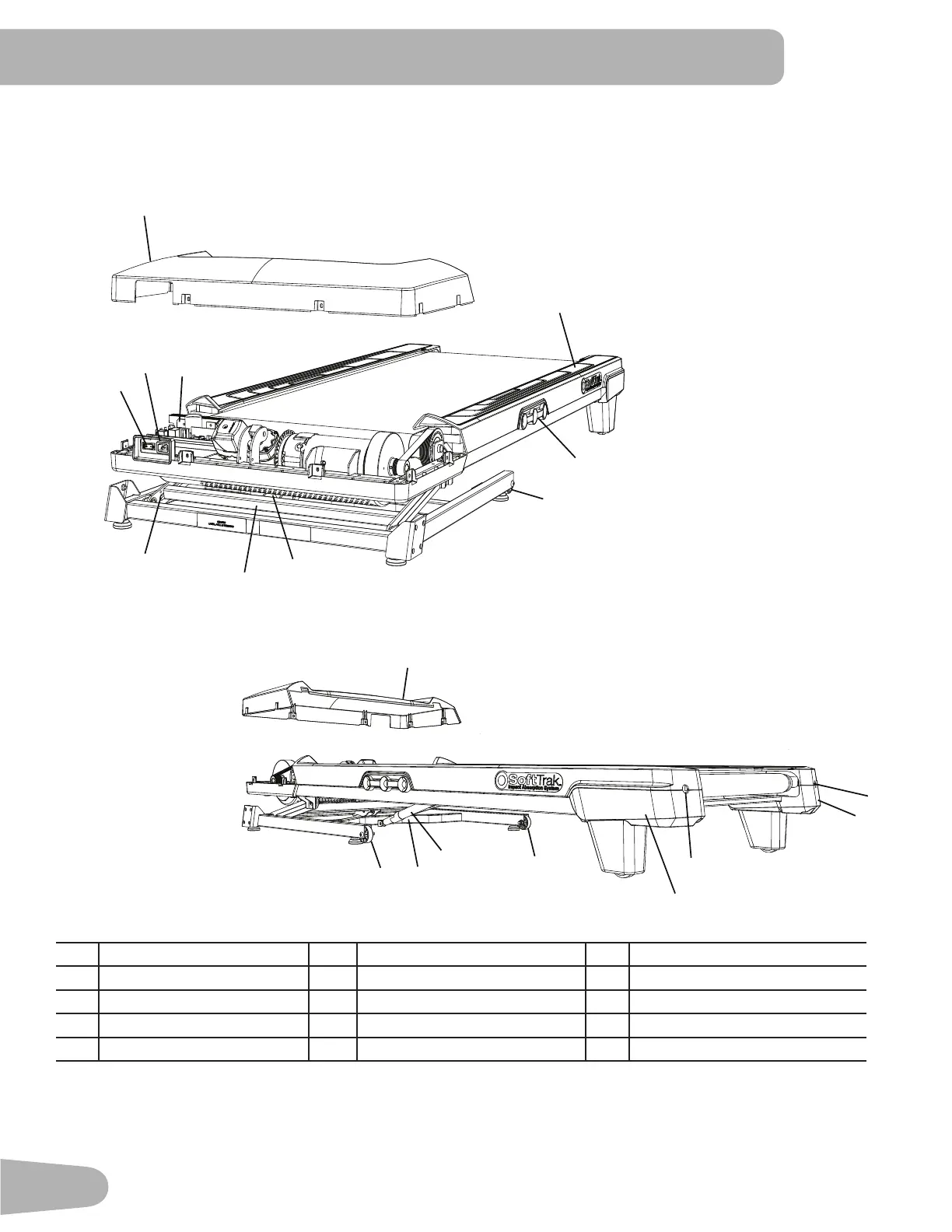

Maintenance Parts ( Frame )
Front
Back
U Motor Cover Z Base Support EE Incline Adjuster
V Power Switch AA Deck Cushioners FF Pivot Assembly
W Power Input BB Transport Wheel GG Belt Tensioner
X Motor Control Board CC Leveler HH Rear Roller Cover
Y Side Foot Support Rails DD Lifting Cylinder
GG
EE
GG
BB
BB
Z
DD
HH
HH
X
U
U
AA
Z
Y
DD
CC
CC
BB
EE
FF
CC
V
W
Z
