Assembly

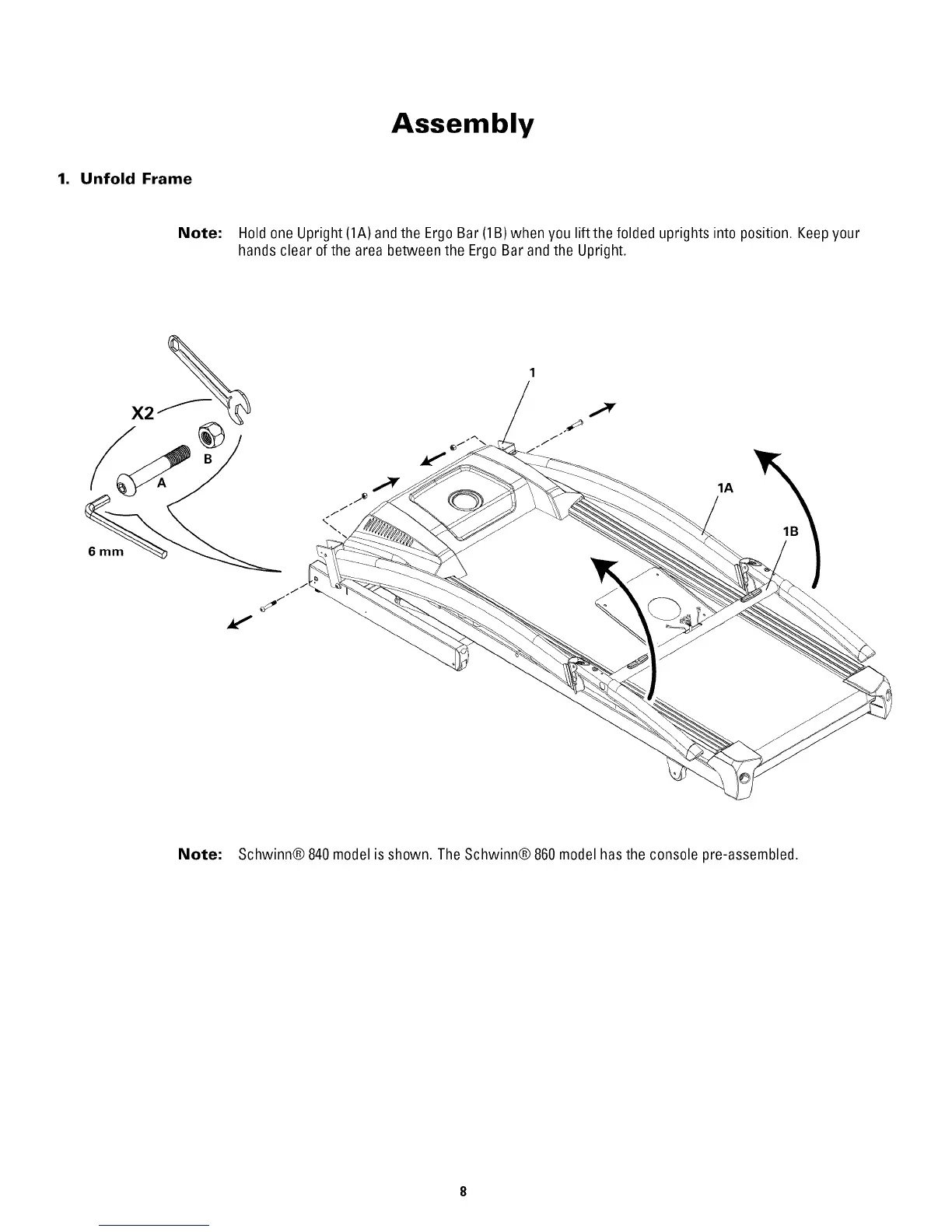

1. Unfold Frame
Note: Hold one Upright(1A) and the Ergo Bar (1B)when you liftthe folded uprights into position. Keepyour
hands clear ofthe area between the Ergo Bar and the Upright.
6mm
_r 1A
1B
Note: Schwinn® 840modelis shown. TheSchwinn® 860model has the console pre-assembled.
