AC Performance
Required Tools:
• 5mm Allen Key
• 10mm Allen Key
• 17mm Open-ended Wrench
• 8mm Allen Socket
• Torque Wrench

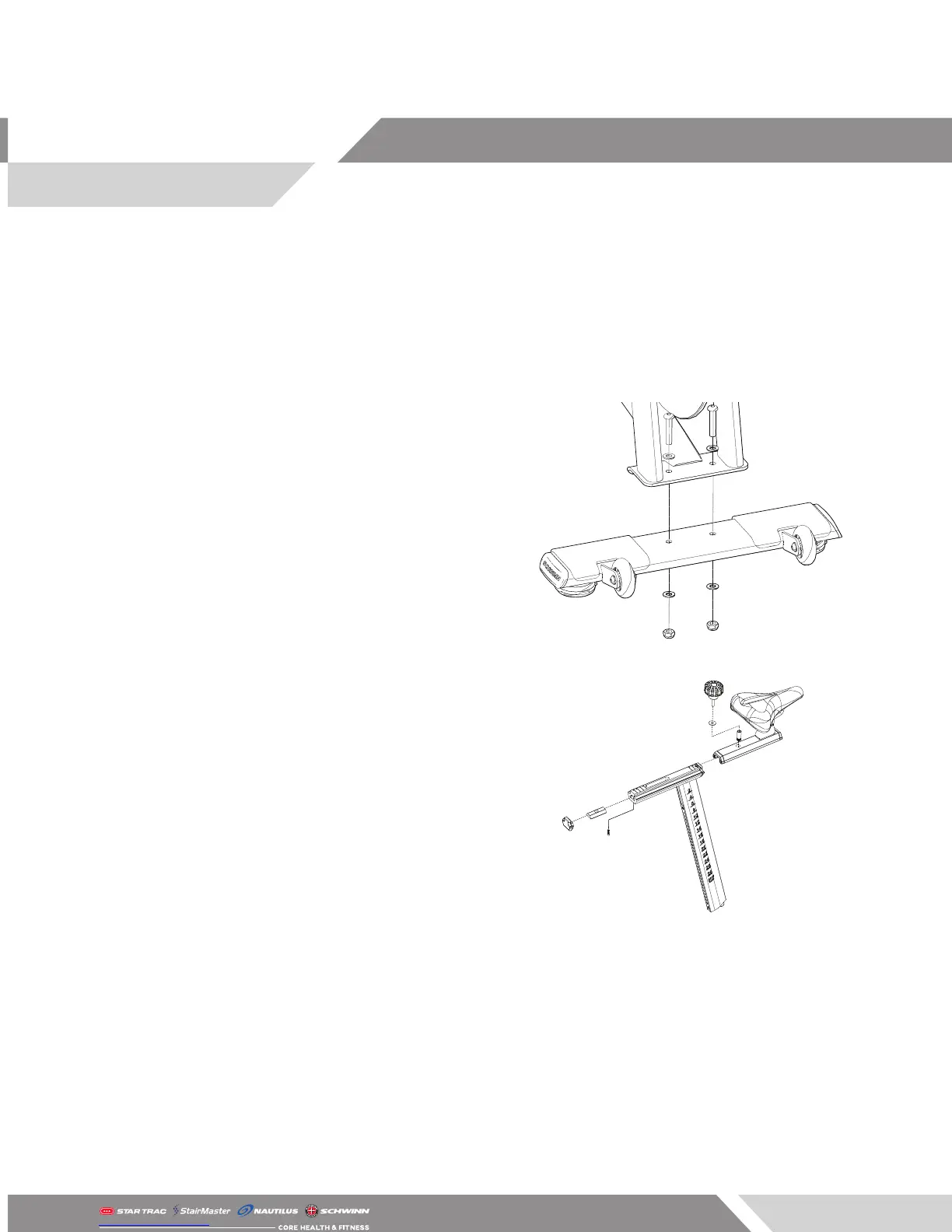

1. Install the front stabilizer using a 5mm allen key
and a 17mm open-ended wrench to secure two
(2) pieces each of the M10 x 50mm screws and
M10 nuts. Be sure to place one (1) piece of the
M10 washer between the nuts and the stabilizer
as well as the screws and the frame. Repeat this
step to attach the rear stabilizer to the frame.
2. Insert one (1) piece of the trapezoidal fore/aft
locking nut into the seat post slider then slide
the fore/aft seat slider onto the seat post. Insert
one (1) piece of the threaded collar locking nut
through the hole in the fore/aft seat slider and
into the trapezoidal fore/aft locking nut then
tighten with a 10mm allen key.
3. Slide one (1) piece each of the M8 washer and
M8 nylon washer onto the fore/aft adjustment
knob then tighten the fore/aft adjustment knob
into the threaded collar locking nut. Finally, insert
the end cap into the seat post and secure using
a phillips screwdriver and one (1) piece of M4 x
19mm screw.
To Next Page
