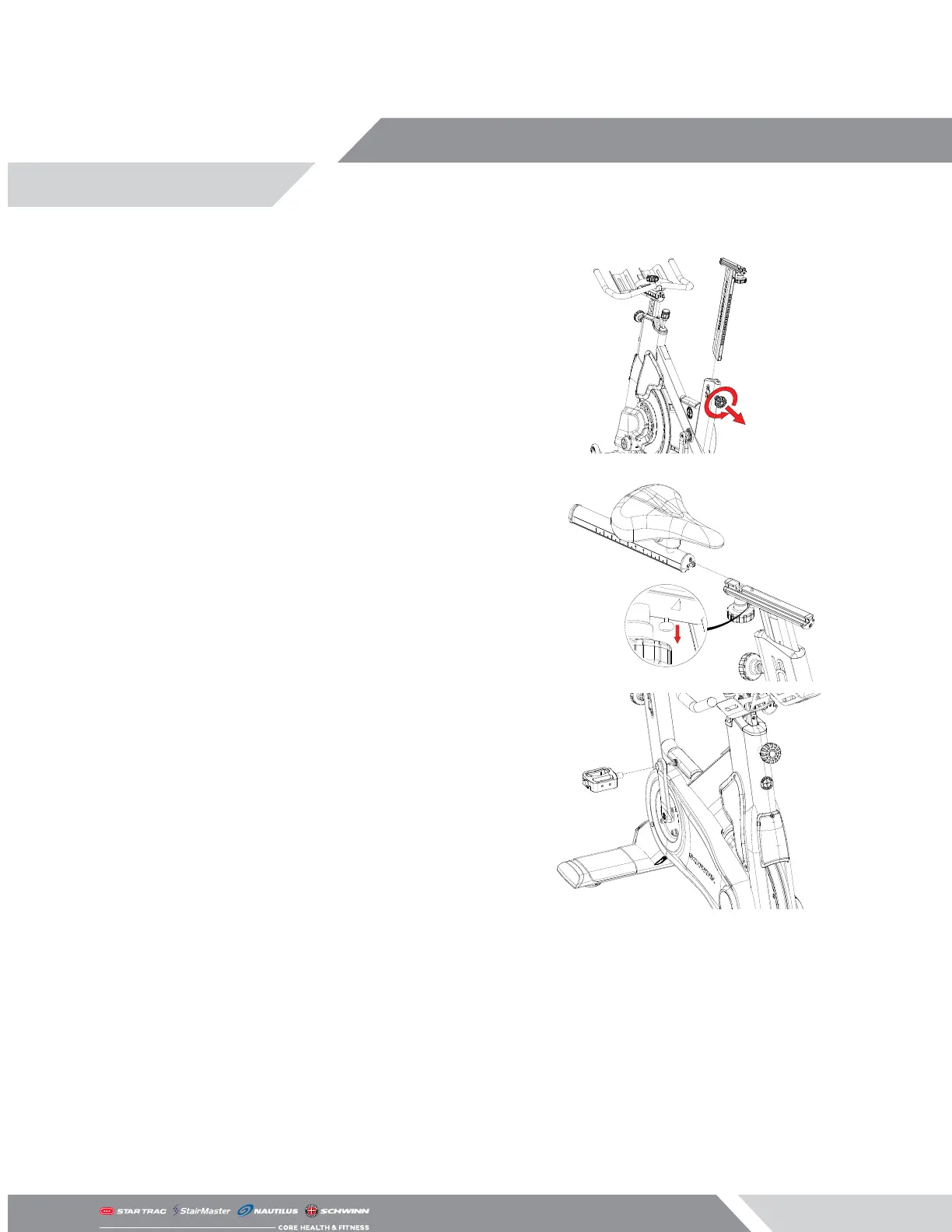

5. Slide the seat post into the frame by loosening
the seat post pop pin, then pulling outwards on
the pin while sliding the seat into the frame.
6. Pull down on the seat slider locking pin then
slide the seat assembly onto the seat post in-
stalled in Step 3, tightening the fore/aft adjust-
ment knob to lock the seat slider into place.
7. Install the pedal into the crank arm then use a
torque wrench and a 8mm allen socket to secure
one (1) piece of the crank bolt from the other
side of the pedal, torquing to 33-37 ft-lbs (45-50
Nm). Repeat this step for the rider left side pedal.
CAUTION: The pedal MUST be torqued to the above
speci cations otherwise a failure of the pedal may
occur.
