8
Each program segment have two small segment, i.e. slope segment and temperature retaining segment
（refer to graph three), and consist of three parameter: the temperature ascending time of the slope
segment, the ending temperature of the slope segment, the temperature retaining time of the
temperature retaining segment. When the slope segment ends, program enters into the temperature
retaining segment, the setting temperature is the ending temperature of the slope segment. The ending
temperature of the last slope segment is the starting temperature of next slope segment. This equipment
has up to 9 program segment to set (9 slope segment + 9 temperature retaining segment). When you do
not need all the 9 segment, you can set the temperature ascending time of the next segment left unused
to be“-1”and the screen will display “End”.

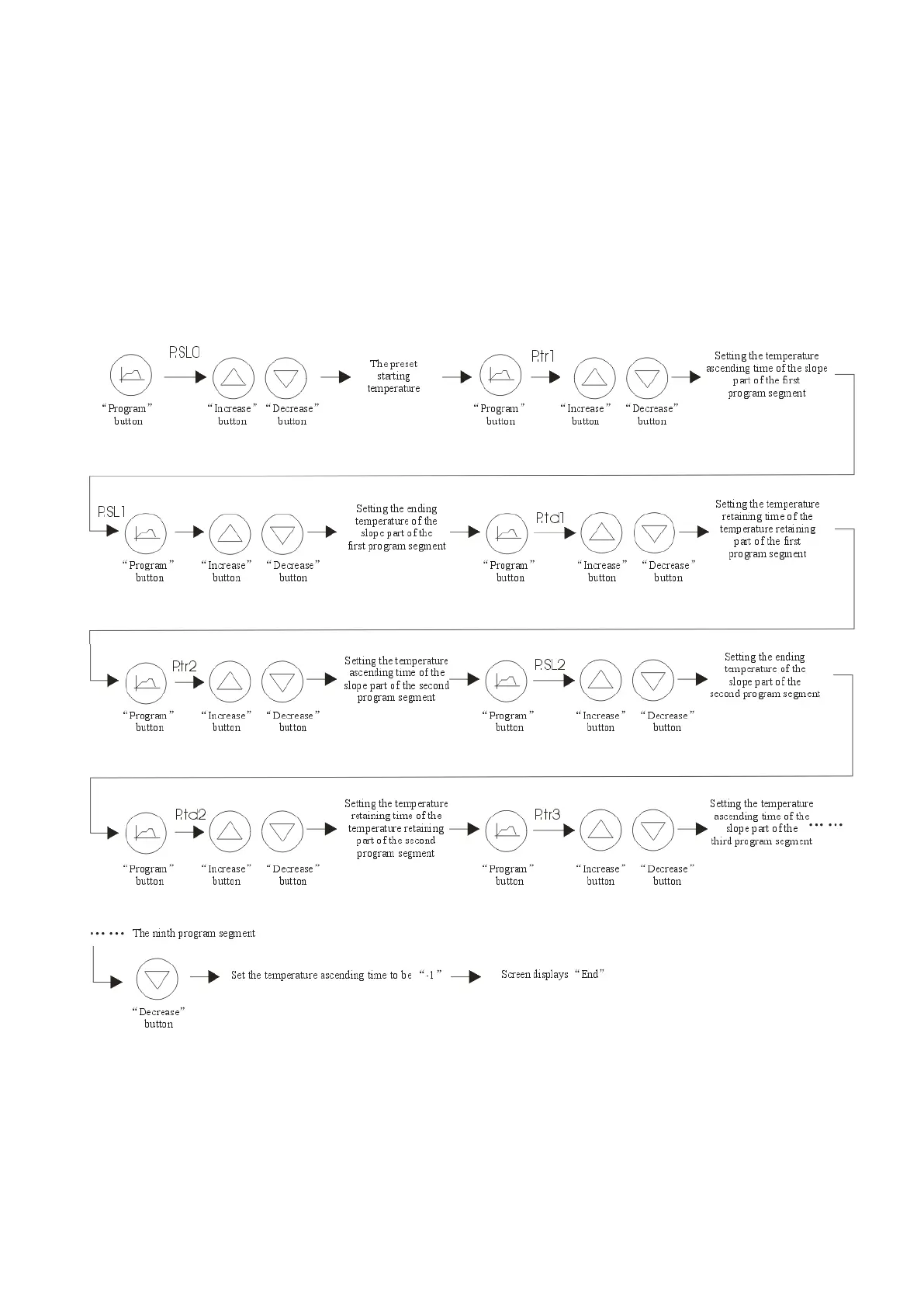

Simplified instruction on the setting of program control time and temperature
