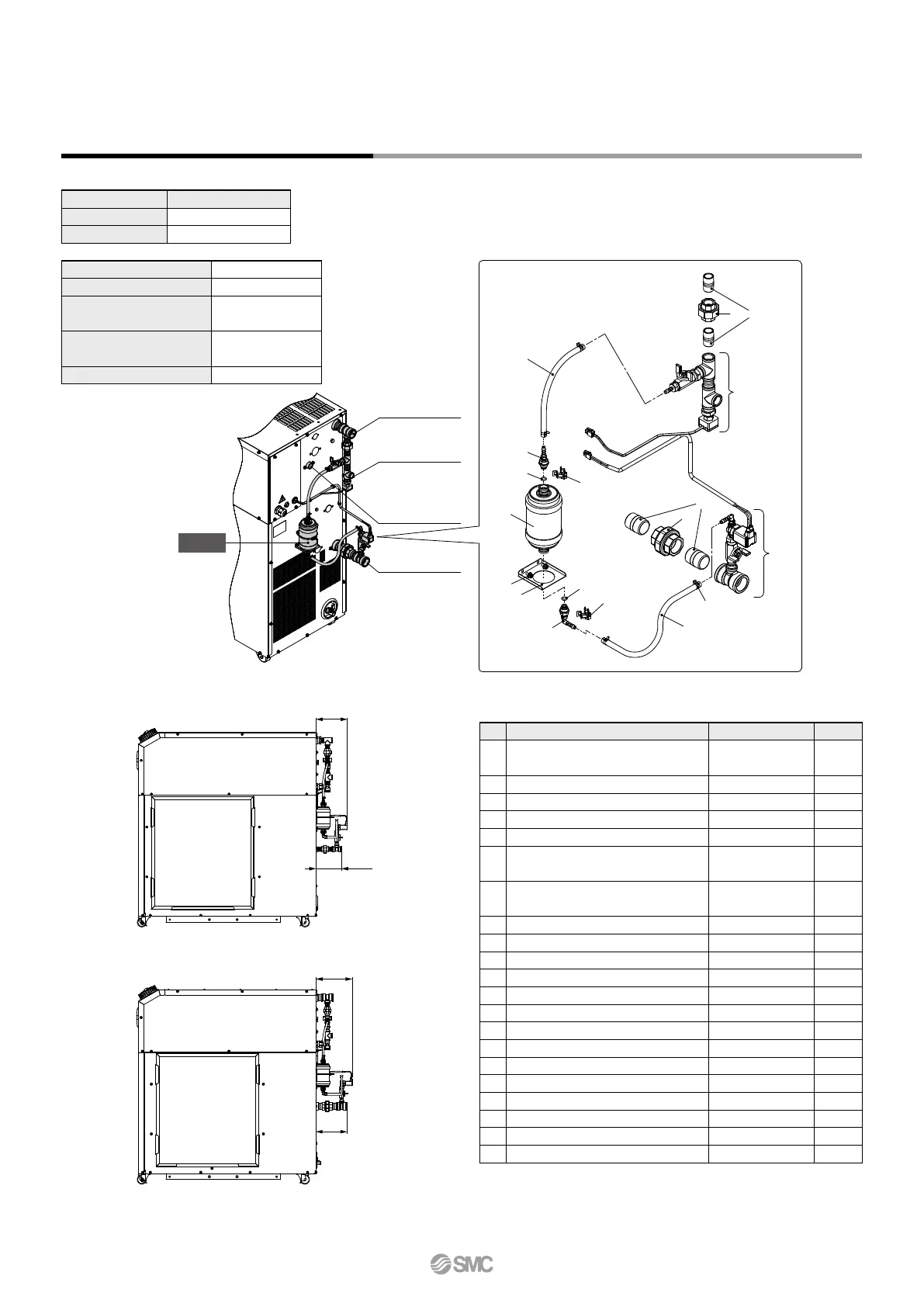

e Electric Conductivity Control Set
This set can be used to display and control the electric conductivity of the circulating fluid. Refer to the Operation Manual for details.
Part no. Applicable model
HRL-DI002 HRLE050-m-m
HRL-DI001 HRLE090-m-m
Measurement range of electric conductivity
2.0 to 48.0 µS/cm
Set range of target electric conductivity
0.5 to 45.0 µS/cm
Set range of electric
conductivity hysteresis
0.1 to 10.0 µS/cm
Operating temperature range
(Circulating fluid temperature)
5 to 60°C
Power consumption 400 mA or less
CH1 Circulating
fluid return port
CH2 Circulating
fluid return port
CH2 Circulating
fluid outlet
CH1 Circulating
fluid outlet
DI filter
x 4
e
o
i
r
!0
!1
w
u
y
t
!4
!6
!2
!3
!5
r
t
q
Mounting dimensions: HRLE050
(138
(170)
Mounting dimensions: HRLE090
Parts List
No. Description
Fluid contact material
Qty.
q
DI filter cartridge
(Part no.: HRR-DF001)
∗
1
PP, PE 1
w
DI filter inlet fitting assembly Stainless steel, PA 1
e
DI filter outlet fitting assembly Stainless steel, PA 1
r
O-ring EPDM 2
t
Clip — 2
y
Nipple (Size : 1 inch…HRL-DI001)
: 1/2 inch…HRL-DI002)
Stainless steel 2
u
Union (Size : 1 inch…HRL-DI001)
: 1/2 inch…HRL-DI002)
Stainless steel 1
i
DI control piping assembly Stainless steel 1
o
Nipple (Size: 1/2 inch) Stainless steel 2
!0
Union (Size: 1/2 inch) Stainless steel 1
!1
DI sensor piping assembly Stainless steel 1
!2
Mounting bracket — 1
!3
DI filter inlet hose PVC 1
!4
DI filter outlet hose PVC 1
!5
Hose clamp — 4
!6
Mounting screw (Size: M5) — 2
!7
Cable tie holder — 5
!8
Binding band — 4
!9
Reusable band — 1
@0
Sealant tape PTFE 1
@1
DI control solenoid valve extension cable
— 1
∗1 The product should be replaced when it can no longer preserve the
electrical conductivity set value.
21
HRLE Series
