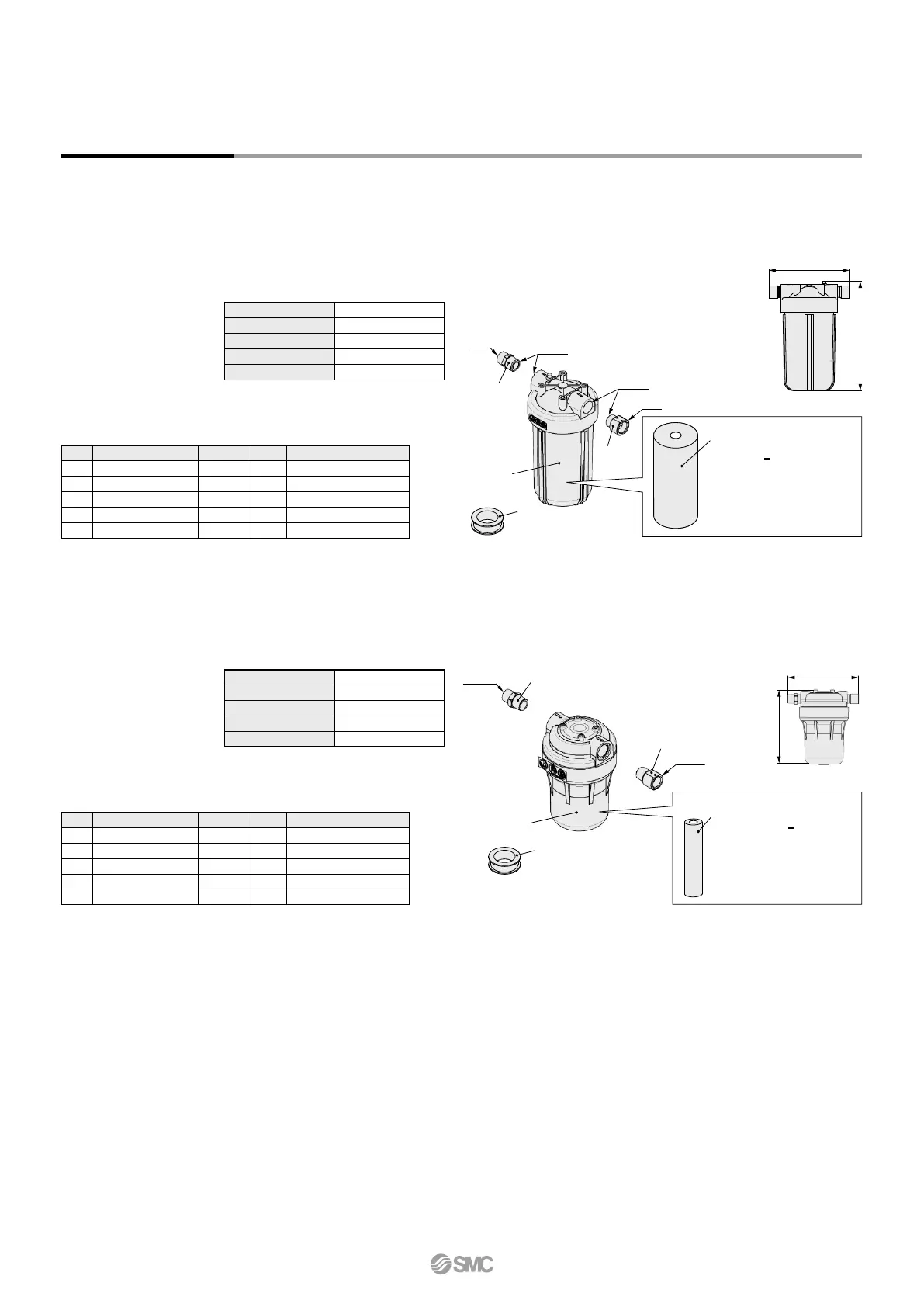

r Particle Filter Set
This set can be used to remove foreign matter from the circulating fluid. If foreign matter such as scales in the piping enter the
circulating fluid, this may cause the pump to malfunction. Therefore, it is strongly recommended to install the particle filter set. This
set cannot be directly connected to the thermo-chiller. Install it in the customer’s piping system. For details, refer to the Operation
Manual.
Parts List
No. Description Material Qty. Note
q
Body
PC, PP
1
—
w
Element
PP
1
—
e
Conversion nipple
Stainless steel 2
Conversion from NPT to Rc
r
Conversion fitting
Stainless steel 2
Conversion from NPT to Rc
t
Sealant tape
PTFE
1
—
Parts List
No. Description Material Qty. Note
q
Body
PP
1
—
w
Element
PP, PE
1
—
e
Conversion nipple
Stainless steel
2
—
r
Conversion fitting
Stainless steel
2
—
t
Sealant tape
PTFE
1
—
Fluid Tap water
Max. operating pressure 0.65 MPa
Operating temperature range 5 to 35°C
Nominal filtration accuracy 5 µm
Installation environment Indoors
Fluid Tap water
Max. operating pressure 0.65 MPa
Operating temperature range 5 to 35°C
Nominal filtration accuracy 5 µm
Installation environment Indoors
HRL-PF001
HRL-PF002
M Particle filter set (For HRLE090, CH1)
(264)
(354)
(173)
(182)
M Particle filter set (For HRLE050, CH1/CH2) (For HRLE090, CH2)
This set can be used to remove foreign matter from the circulating fluid.
w
q
e
r
Rc1
NPT1
NPT1
Rc1
t
∗ If a handle is required, please order it separately.
Handle: HRR-S0079
q
e
r
Rc
1/2
R
c1/2
t
w
The product should be
replaced when the
pressure drop reaches
0.15 MPa.
∗ If a handle is required, please order it separately.
Handle: HRS-S0600
HRS PF006
Replacement Element
The product should be
replaced when the
pressure drop reaches
0.15 MPa.
EJ202S 005X11
Replacement Element
22
Optional Accessories HRLE Series
