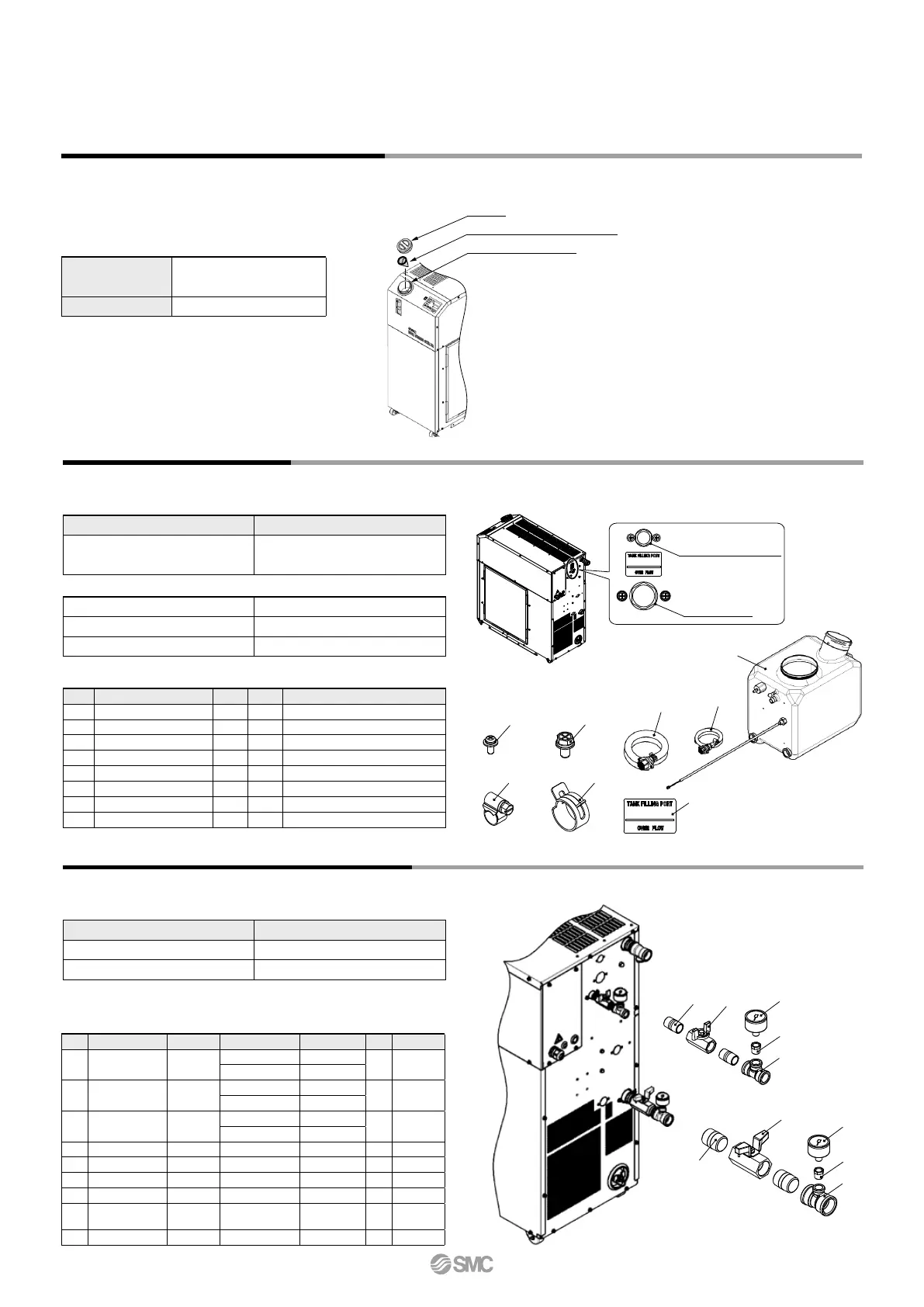

Tank lid
F
ilter for circulating fluid fill port
Circulating fluid fill port
t Filter for Circulating Fluid Fill Port
Prevents foreign matter from entering the tank when supplying the circulating fluid. Can be used just by fitting into the circulating
fluid fill port.
M Filter for circulating fluid fill port
HRS-PF007
Material
Stainless steel 304,
Stainless steel 316
Mesh size 200
y Automatic Fluid Fill Set
u Ball Valve Set (With Pressure Gauge)
By installing this at the automatic fluid fill port, the circulating fluid can be automatically supplied to the product while the circulating
fluid is decreasing.
This is a set of fittings including a ball valve and a pressure gauge to be used when adjusting the circulating fluid discharge
pressure and flow rate at the chiller.
Fluid fill pressure [MPa] 0.2 to 0.5
Feed water temperature [°C] 15 to 25
Fluid fill method
Ball tap
Parts List
No. Description Material Qty. Note
q
Overflow port assembly 1
w
Automatic fluid fill assembly 1
e
Automatic fluid fill tank assembly PE 1
r
M4 screw — 2
For securing automatic fluid fill assembly
t
M6 screw — 2
For securing overflow port assembly
y
Hose clamp — 1
For securing automatic fluid fill assembly hose
u
Hose clamp — 1
For securing overflow port assembly hose
i
Automatic fluid fill label — 1
Automatic fluid fill port
Overflow port
q
i
w
e
x 2 x 2
r
y
u
t
[CH2 side]
[CH1 side]
q
y
u
t
r
i
t
w
r
e
Part no. Applicable model
HRL-JK001
HRLE050-m-m
HRLE090-m-m
Part no. Applicable model
HRL-BB002 HRLE050-m-m
HRL-BB001 HRLE090-m-m
Parts List
No. Description Material Applicable model Size Qty. Note
q
Nipple
Stainless steel
HRLE090 R1
2 For CH1
HRLE050 R1/2
w
Ball valve
Stainless steel
HRLE090 Rc1
1 For CH1
HRLE050 Rc1/2
e
Different
diameter tee
Stainless steel
HRLE090 Rc1 x Rc3/8
1 For CH1
HRLE050
Rc1/2 x Rc3/8
r
Hexagon bushing Stainless steel HRLE090/050 Rc3/8 x Rc1/4 2 For CH1/CH2
t
Pressure gauge — HRLE090/050 R1/4 2 For CH1/CH2
y
Nipple
Stainless steel HRLE090/050 R1/2 2 For CH2
u
Ball valve
Stainless steel HRLE090/050 Rc1/2 1 For CH2
i
Different
diameter tee
Stainless steel HRLE090/050 Rc1/2 x Rc3/8 1 For CH2
o
Sealant tape PTFE HRLE090/050 — 1
23
HRLE Series
