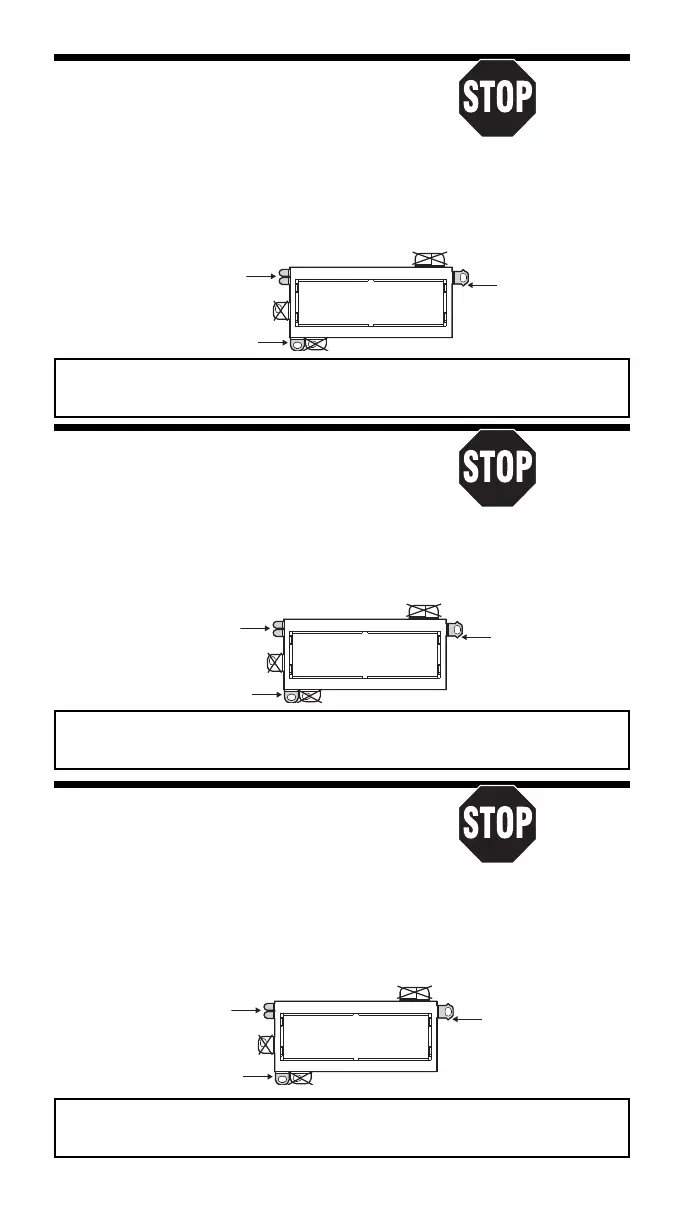

Scosche FCJ2076 - Page 12

1991-93 Chrysler Town & Country
Read pages 2-4
1991-93 Dodge Caravan
for kit assembly.
1991-93 Plymouth Voyager
RADIO REMOVAL:
1. Remove the cigarette lighter.
2. Using a panel removal tool, carefully pry outward
to release the clips securing the dash bezel and remove the bezel.
3. Extract the two screws securing the rear hatch switch to the dash bezel.
4. Extract the two 3/8" bolts securing the radio to the dash.
5. Pull the radio out of the dash, and unplug all the connectors. Disconnect the ground strap and remove
the radio.
USE THESE SUPPORT
#2190 PANEL
REMOVE ALIGNMENT
TABS AS REQUIRED
PIN - BOTTOM
Usar tantas de estas
Sacar la clavija de
pestañas como sea
alineamiento - Inferior
necesario
USE THIS BRACKET
Usar este braquete
1990 Chrysler Town & Country
Read pages 2-4
1984-90 Dodge Caravan
for kit assembly.
1984-90 Plymouth Voyager
RADIO REMOVAL:
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
1. Reach behind ashtray and unsnap the carrier housing to remove the ashtray.
2. Remove three screws along the top edge of the radio trim panel.
3. Remove two screws below the radio trim panel. Remove the trim panel.
4. Remove two screws securing the radio to dash then pull the radio out.
5. Disconnect the power, antenna, and all speaker and electrical connections. Remove the radio.
USE THESE SUPPORT
TABS AS REQUIRED
#2190 PANEL
REMOVE ALIGNMENT
PIN - BOTTOM
Usar tantas de estas
Sacar la clavija de
necesario
pestañas como sea
alineamiento - Inferior
USE THIS BRACKET
Usar este braquete
1979-82 Dodge 024
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
Read pages 2-4
1979-87 Dodge Charger
for kit assembly.
1978-90 Dodge Omni
1982-84 Dodge Rampage
1978-90 Plymouth Horizon 1979-82 Plymouth TC3
1983-90 Plymouth Scamp 1983-87 Plymouth Turismo
RADIO REMOVAL:
1. Remove seven screws from the top and bottom edges of the radio dash panel & remove the panel.
2. Remove two screws securing the radio to the dash and pull the radio out.
3. Disconnect power, antenna, and all speaker and electrical connections.
#2190 PANEL
REMOVE ALIGNMENT
TABS AS REQUIRED
USE THESE SUPPORT
PIN - BOTTOM
Sacar la clavija de
pestañas como sea
Usar tantas de estas
alineamiento - Inferior
necesario
USE THIS BRACKET
Usar este braquete
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
12
