°C
°F
SPECIFICATIONS
NOTE.
When machine is “built-in” at ambient temperature of 32
°
C (90
°
F) indicated ice capacity
decreases about 10%.
To keep your SCOTSMAN CUBER performing at its maximum capacity, it is necessary to perform
periodic maintenance as outlined on page 8 of this manual.

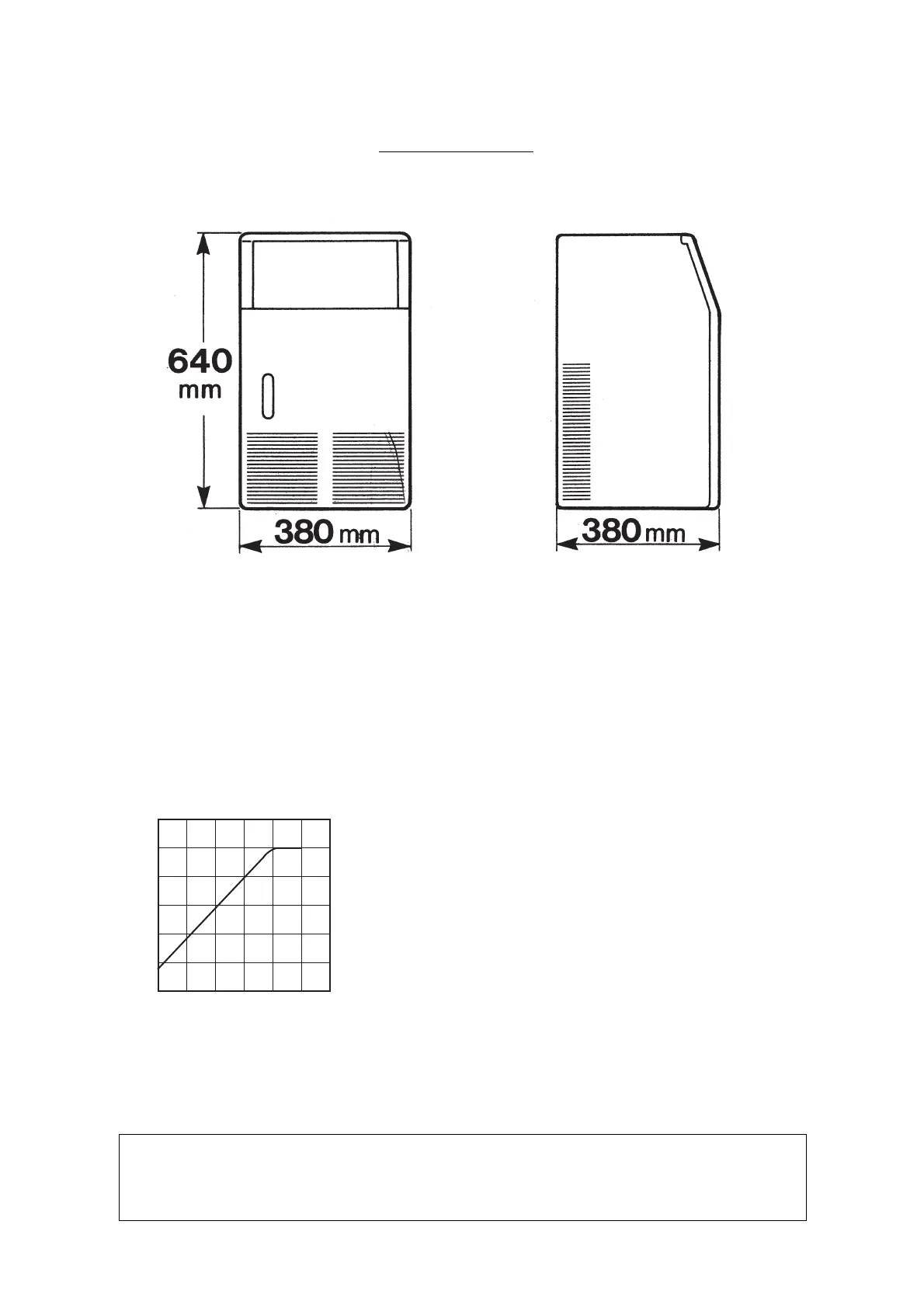

• Dimensions = m/m 380 wide-380 deep-640 high
• Weight = 29 kg (64 Ibs.)
• Cabinet = Plastic
• Finish = Enamel
• Color = Almond
• Storage bin = ABS
• Door = Sliding (recess)
• Power Requirements = 230 Volts, 50 Hz, 1 Phase
• Power Consumption = 4,5 Kwh x 24 HRS
• Wire Size = 1 m/m
• Fuse Size = 6 Amps
• Compressor = 1/5 HP
• Refrigerant metering
device = Capillary
• Refrigerant Charge = 220 grms FREON, R 134 A
• Harvest Means = Hot gas
• Cubes per harvest = 8
• Storage bin capacity = 3.5 Kgs. (7.7 Ibs.)
• Water reservoir capacity = 4 liters (1.1 gl.)
11
10
9
8
7
6
5
Kg.
35 30 525 20 15 10
AMBIENT TEMPERATURE
ICE PRODUCED PER 24 HRS.
°C
o
AIR COOLED MODELS
2
