Service Manual for Models CU0415, CU0715 and CU0920
August 2013
Page 28

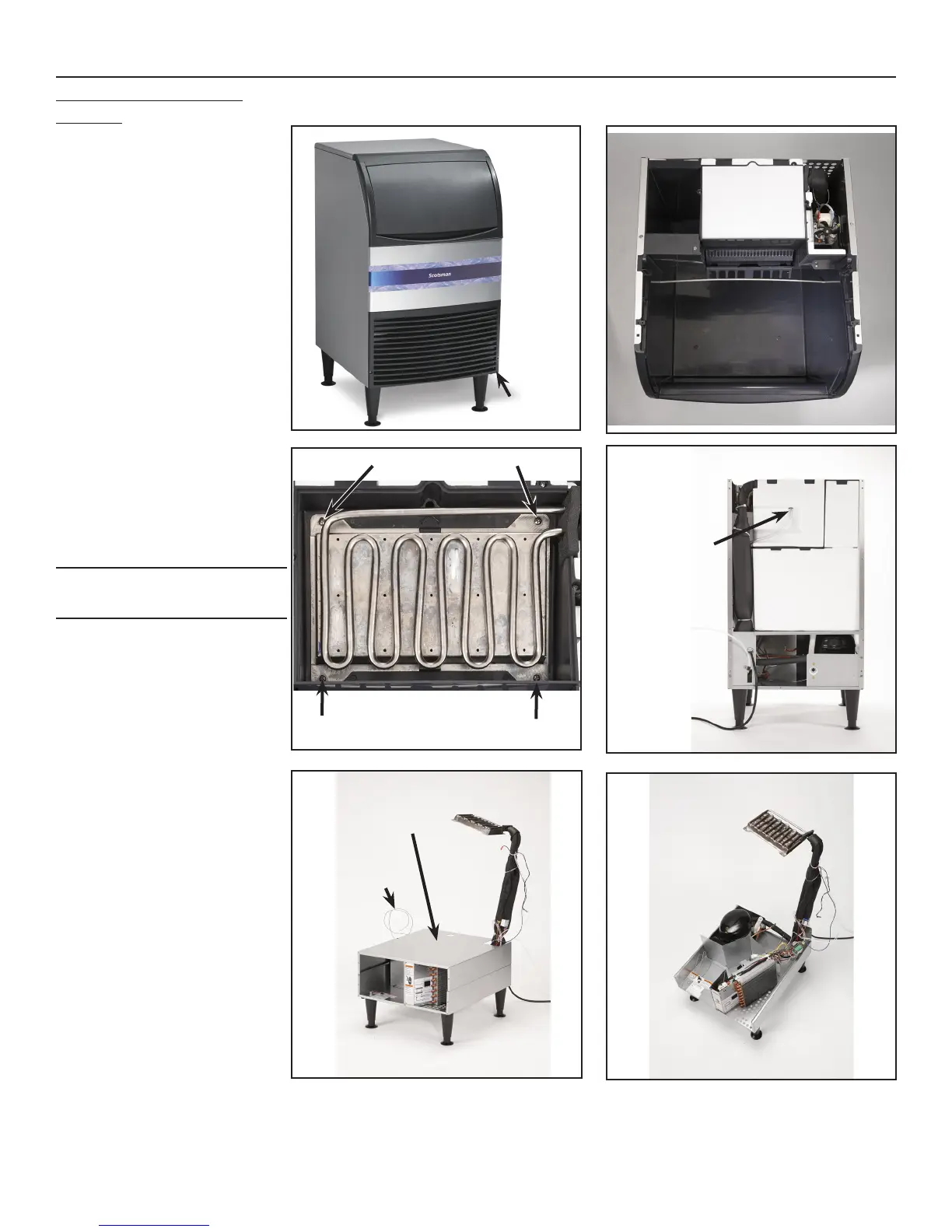

Cabinet Removal for
Service
1. Remove front panel.
2. Remove top panel.
3. Remove door.
4. Drain water from reservoir.
5. Disconnect water and
drain and electrical power.
6. Remove back and side
panels.
7. Pull bin thermostat cap
tube from tube in bin.
8. Remove evaporator cover.
9. Remove screws holding
evaporator to its frame, lift
evaporator up out of the
way.
Note: Support evaporator as
needed to prevent damage.
10. Disconnect electrical wires
from water pump.
11. Remove thermistor from
pump hose and reservoir.
12. Disconnect bin drain.
13. Disconnect water supply
hose from evaporator
platen.
14. Lift bin with reservoir off of
deck.
15. Remove deck cover.
Evaporator Screws
Deck Cover
Water
Supply
Hose
Thermostat
Cap Tube
Remove
Remove
To Next Page
