Scotsman CU1526 - CU3030 Water Reservoir Removal

May 2008
Page 54
CU1526, CU2026, CU3030
Service Manual
Removal and Replacement
Water Reservoir
CU3030
1. Shut water supply OFF.
2. Remove left grill.
3. Push and hold the Off button until the unit stops.
4. Push and hold the Clean button until a - appears in the code display. The pump will drain the
reservoir.
5. Push two tabs (located left of the pump motor) in until they release from the pump bracket.

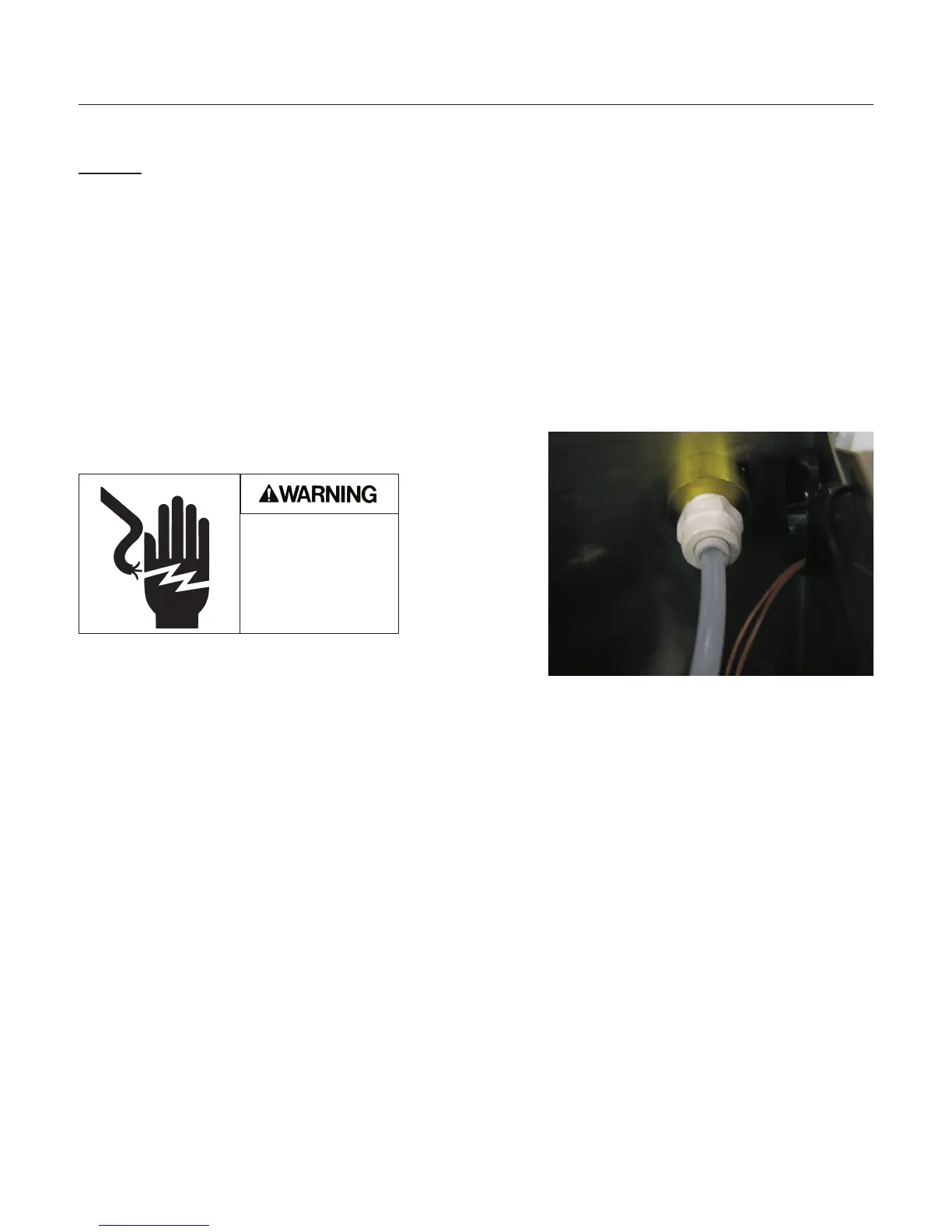

6. Push in release ring on water fitting and pull water inlet
tube out.
7. Disconnect electrical connection from pump motor.
8. Remove discharge hose from pump
9. Lift up on pump bracket to release it from the back wall. Pull forward and out of the machine.
10. Remove one screw holding the reservoir to the evaporator bracket (at the right).
11. Reservoir will drain into storage bin.
12. Push up under back of reservoir and pull forward to release reservoir tabs from back panel.
Electrical Shock
Hazard.
Disconnect electrical
power before
beginning removal
procedure.
