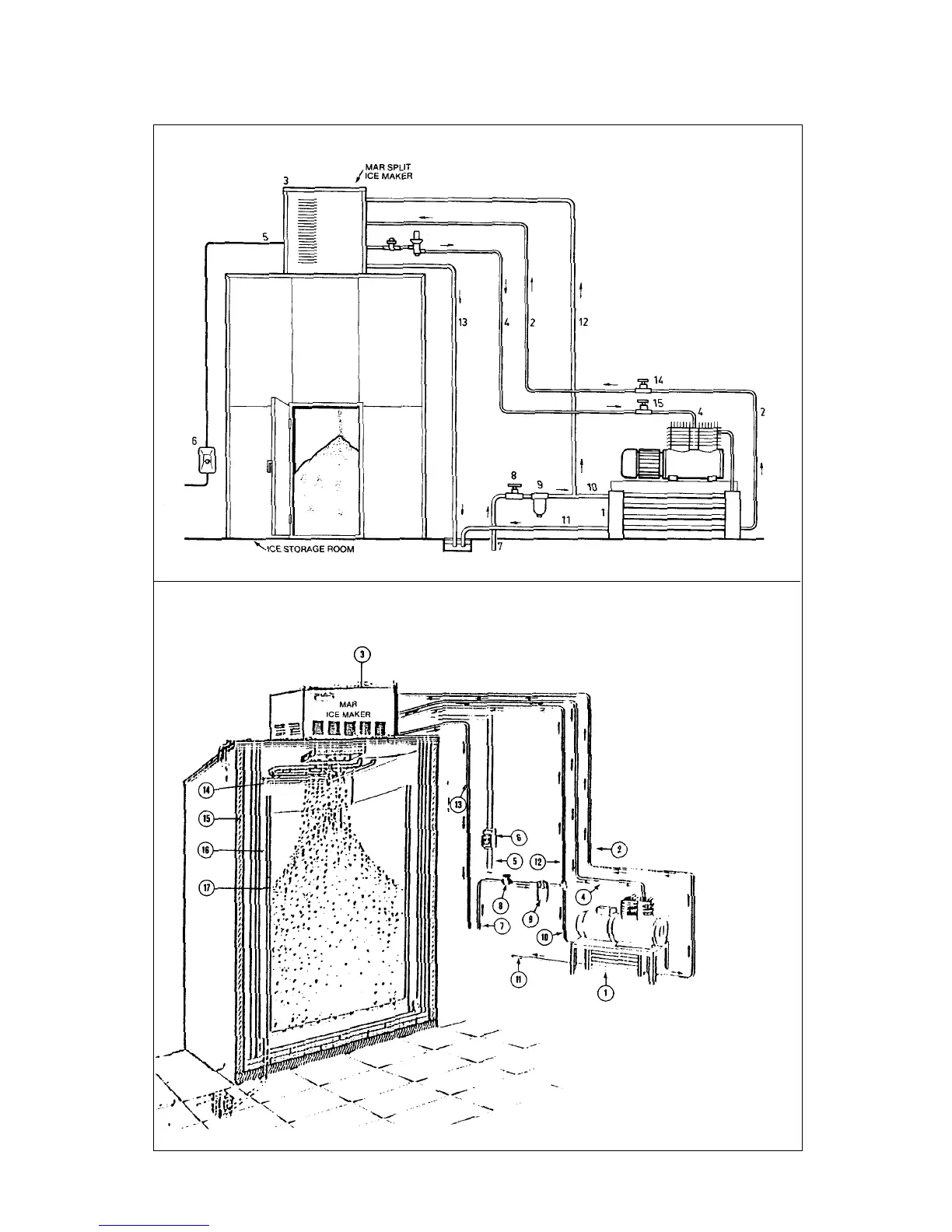

NON REFRIGERATED ICE STORAGE ROOM
1 Condensing unit
2 Liquid line
3 Evaporator drum unit
4 Suction line
5 Power supply line
6 Hand disconnect switch
7 Water supply line
8 Hand shut-off valve
9 Water filter
10 Condenser water inlet
11 Condenser water outlet
12 Evaporator water supply
13 Water drain line
14 Liquid line service valve
15 Suction line service valve
REFRIGERATED ICE STORAGE ROOM
(Jacket system)
1 Condensing unit
2 Liquid line
3 Evaporator drum unit
4 Suction line
5 Power supply line
6 Hand disconnect switch
7 Water supply line
8 Hand shut-off valve
9 Water filter
10 Condenser water inlet
11 Condenser water outlet
12 Evaporator water supply
13 Water drain line
14 Refrigerant coil
15 Insulated panel
16 Air gap
17 Ice bulkhead
