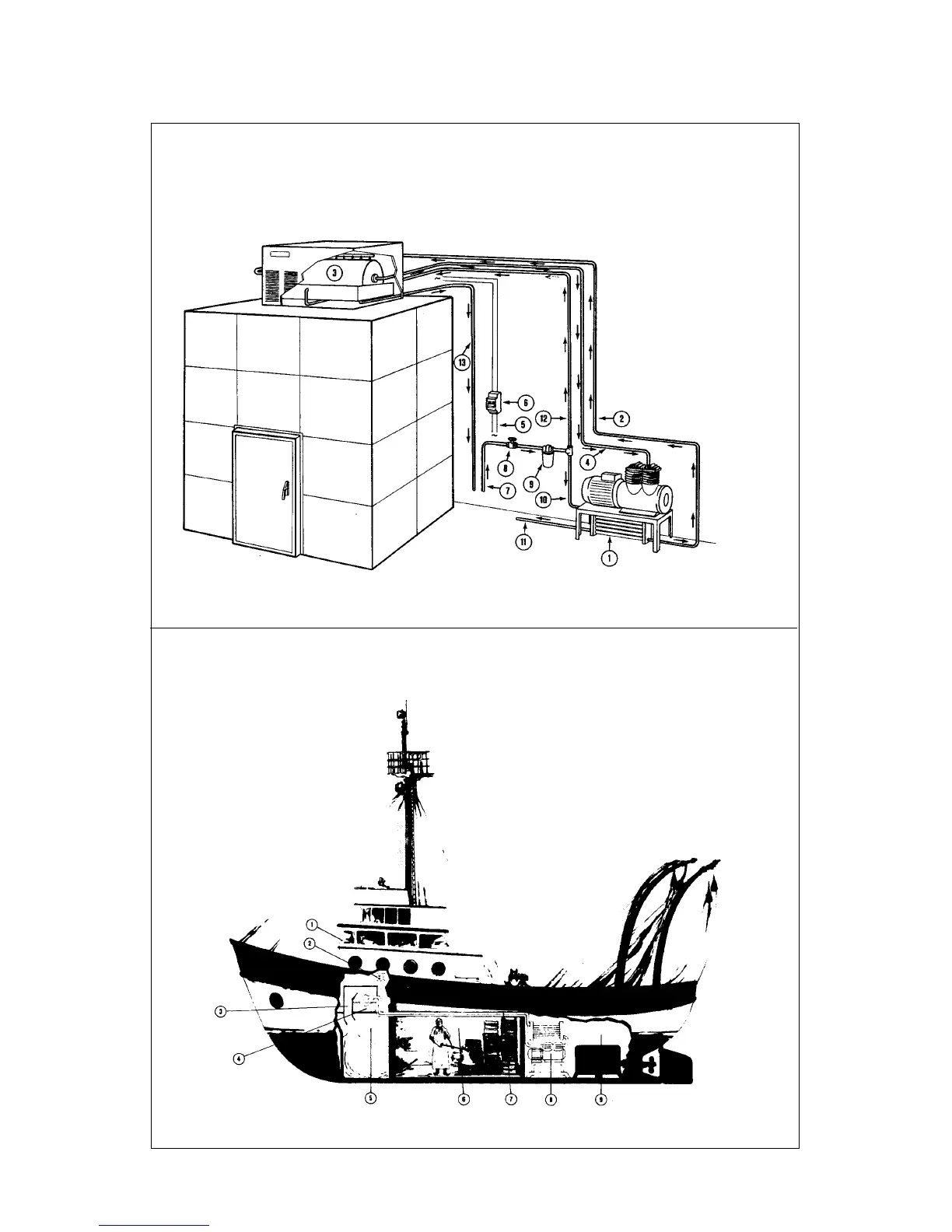

INSTALLATION PRACTICE SPLIT
UNIT ASHORE
1 Condensing unit
2 Liquid line
3 Evaporator drum unit
4 Suction line
5 Power supply line
6 Hand disconnect switch
7 Water supply line
8 Hand shut-off valve
9 Water filter
10 Condenser water inlet
11 Condenser water outlet
12 Evaporator water supply
13 Water drain line
INSTALLATION PRACTICE SPLIT UNIT
ON OFFSHORE FISHING VESSEL
1 Deck house
2 Control panel & main switch
3 Ice chute
4 Evaporator drum unit
5 Ice hold
6 Fishing room
7 Réfrigérant lines
8 Condensing unit
9 Engine room
